| Prod Model: |
55-1 |
| Markets: |
North America,South America,Eastern Europe,Africa,Eastern Asia |
| Insulator Type: |
Pin Insulator |
| Stock No: |
55-1 |
| Tensile Strength: |
11 -13 Kv |
| Rated Voltage: |
33 Kv |
| Application: |
High-temperature |
| Material: |
Porcelain |
| Structure: |
Pin Insulator |
| Type: |
B Type Insulator |
| Color: |
Brown |
| Brand: |
Vic |
Product Description
1. Manufactured in accordance ANSI standard C135.1-1979
2. High quality&Competive price
3. Different sizes you can choose
4. Best service; Manufacture's warranty certificate, fast delivery
Note:
We do forging mostly according to your drawings or samples. Please send us your drawings including material, dimension, weight, quantity. After receiving your drawings, we will send you the best quotation within 2 days.

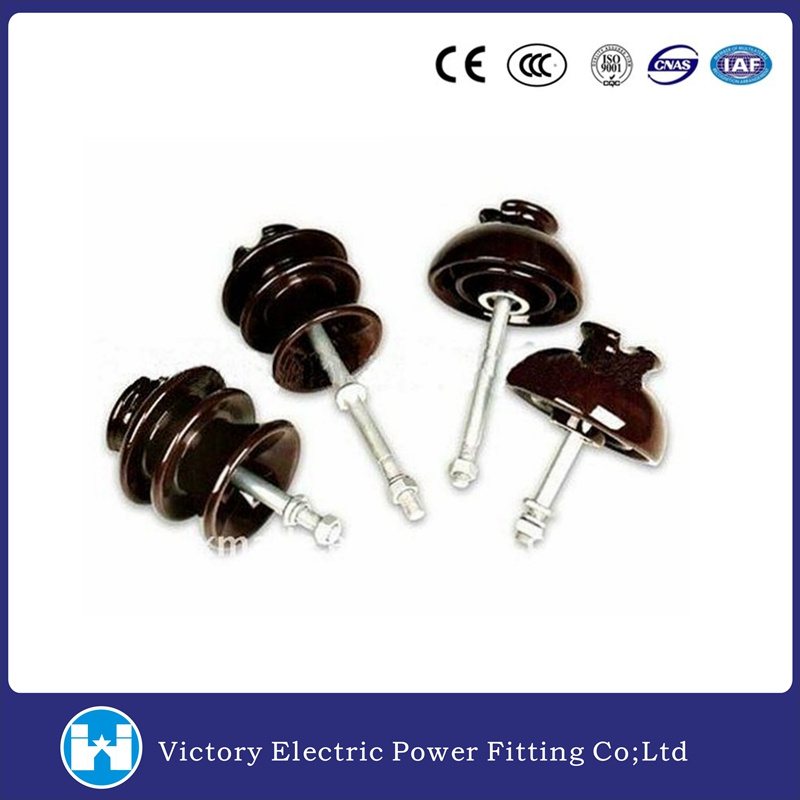

ANSI 33kv pin porcelain insulator
| ANSI Class | 55-1 | 55-2 |
| Insulator Type | Plain | Radio Freed | Plain | Radio Freed |
| Neck Designation in accordance with ANSI C29.5 | C | C |
| Voltage Rating (U.S.Practice) /KV | 7.2 | 7.2 |
| Leakage Distance/in (mm) | 4(102) | 5(127) |
| Dry Arcing Distance/in (mm) | 2-1/4(57) | 3-3/8(86) |
| Minimum Pin Height/Average/lb (kN) | 3,000(13.3) | 2,500(11.1) |
| Average Flashover Voltage | Low-frequency | Dry/kV | 35 | 35 | 50 | 45 |
| Wet/kV | 20 | 20 | 25 | 25 |
| Critical-impulse | Positive/kV | 50 | 50 | 75 | 70 |
| Negative/kV | 70 | 70 | 95 | 85 |
| Low Frequency Puncture Voltage/Average/kV | 50 | 70 |
| Radio-Influence Voltage Date | Test Voltage to Ground/kV | 5 | 5 | 5 | 5 |
| Maximum RIV at 1,000kHz/μV | 2,500 | 50 | 2,500 | 50 |
| Net Weight/lb | 1.2 | 1. |
| ANSI Class | 55-3 | 55-4 | 55-5 |
| Insulator Type | Plain | Radio Freed | Plain | Radio Freed | Plain | Radio Freed |
| Neck Designation in accordance with ANSI C29.5 | C | F | F |
| Voltage Rating (U.S.Practice)/KV | 7(178) | 9(229) | 12(305) |
| Leakage Distance/in (mm) | 4-1/2(114) | 5(127) | 6-1/4(159) |
| Dry Arcing Distance/in (mm) | 5(127) | 5(127) | 6(152) |
| Cantilever Strength/Average/lb (kN) | 2,500(11) | 3,000(13) | 3,000(13) |
| Average Flashover Voltage | Low-frequency | Dry/kV | 65 | 55 | 70 | 65 | 85 | 80 |
| Wet/kV | 35 | 30 | 40 | 35 | 45 | 45 |
| Critical-impulse | Positive/kV | 100 | 90 | 110 | 105 | 140 | 130 |
| Negative/kV | 130 | 110 | 140 | 130 | 170 | 150 |
| Low Frequency Puncture Voltage/Average/kV | 90 | 95 | 115 |
| Radio-influence Voltage Date | Test Voltage to Ground/kV | 10 | 10 | 10 | 10 | 15 | 15 |
| Maximum RIV at 1,000kHz/μV | 5,500 | 50 | 5,500 | 50 | 8,000 | 100 |
| Net Weight/lb | 2.4 | 3.7 | 6.4 |
