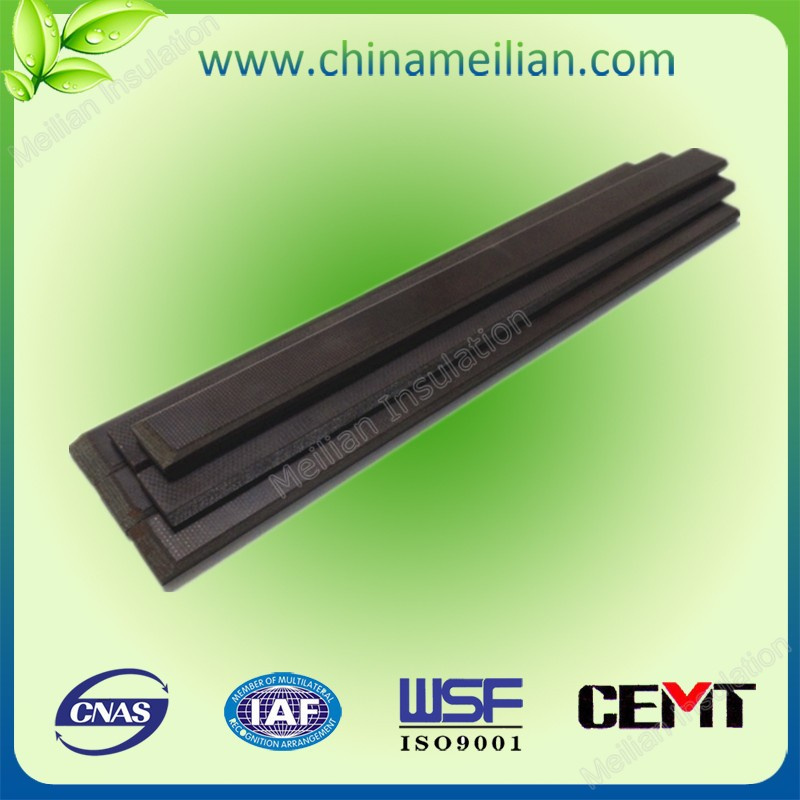

3331 Magnetic Insulation Press Board

Name: 3331 Magnetic Insulation Press Board
Brand: all-electronics-online.com
SKU: 743413295
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	US $ 6.3-7.2KG
Trade Terms:	FOB,CFR,CIF
Min Order:	300KG
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-3331/349
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Customer Requirement
Density:	More Than 3.5g/cm3
Delivery Time:	Within 7-10 Working Days
Samples:	Free Samples Available
Application:	Generator & Transformer
Type:	Insulation Sheet
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	>100KV
Brand:	Mj

Product Description

349/3331Insulation Laminate Fiberglass Slot Wedge:
Appearance:
Natural color Brown, Light Brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation

Feature:
Excellent mechanical & electric property
Good heat & moisture resistance
Easy for processing & machining

Application:
Motors & generators
Traction motors
High-speed motors
Wind turbines Metro reactors

Packaging Detail: Epoxy slot wedge package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.

Delivery Detail: 7-10 working days

Basic information
Product name	Magnetic Electrical Insulation Stator Wedge
Item No.	With the same item numbers of the laminates which used for processing
Brand	MJ
Material	Epoxy resin and Alkali free fiberglass cloth with magnetic powder
Grade	Grade B - H
Technical Performance
Density	≥3.0g/cm 3
Sheets Thickness	0.1-6mm
Size	≥480x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥200°C
Water absorption	≤1.0%
Impact strength	≥40 KJ/m 2
Tensile strength	≥120 Mpa
Flexural strength at room temperature at high temperature 155°C	≥195 MPa ≥120 MPa
Comparative magnetic permeability 1.6KA/m (200 Oe)	≥7.5
Reference Standard	GB/T1303.1-1998

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
