0-0.333V AC or 0-5V AC Split Core Flexible Rogowski Coil Transformer

Name: 0-0.333V AC or 0-5V AC Split Core Flexible Rogowski Coil Transformer
Brand: all-electronics-online.com
SKU: 736936355
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 1-90/Piece
Trade Terms:	CFR,CIF,FCA
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-RST
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Transformer:	Flexible Rogowski Coil Current Transformer
Current Sensor:	Flexible Rogowski Coil Current Sensor
Current Transducer:	Flexible Rogowski Coil Current Tranducer
Usage:	Consumption Sensor
Output:	0-0.333V AC or 0-5V AC
Accuracy:	1.0
Frequency:	50/60Hz
Size:	Small
Color:	Black
Insulation Strength:	3kv
Application:	Power, Electronic, Instrument, Electronic

Product Description

Specifications

Rogowski coil sensor
1.Coil length 0.2cm-200cm

2.input current 100A-100KA

3. Output 0-0.333V AC or 0-5V AC
4.Accuracy 1%

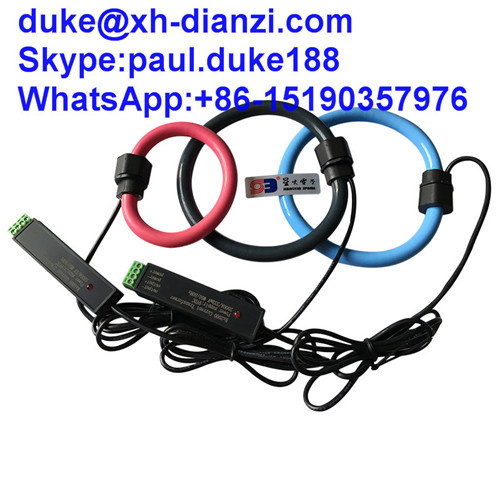

0-0.333V AC or 0-5V AC Split Core Flexible Rogowski Coil Transformer

Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).

Current Range: 100A to 100kA
Accuracy: < 1%
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>
Linearity: ±0.2% from 10% to 100% of rated primary current
Primary Conductor Position Sensitivity: ± 2% maximum
Influence of External Field: ± 1.5% maximum
Coil Working voltage: 1000VRMS or 1000VDC
Coil Dielectric Surge Withstand: 5kVRMS for 1 minute
Operating temperature: -20ºC to +60ºC
Leads: Shielded cable, or as per customer need

Drawing size

Pls contact me for much more information by TradeMessenger

omized

Please contact me for more information by Trademesseger

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
