33600W 48V Starting Power Ni-CD Sintered Plate Deep Cycle Rechargeable Battery

Prod Model:	kpx40
Type:	Ni-CD Battery
Usage:	Starting Power
Nominal Voltage:	1.2V
Discharge Rate:	Ultrahigh Discharge Rate
Rechargeable:	Chargeable
Shape:	Pristmatic

Product Description

Henan Hengming Fengyun Power Source Co.,Ltd. is founded in 1986 and located in the middle of China transport central Xinxiang city, that's the first group developing industry city in New China. According the developing need our new subsidiary company(Henan Hengming New Energy Co., Ltd.) is finished and had working in 2014.
Factory Introduction:
Hengming factory total area is 44 thousands square meters. More than 300 staff is working here, among of which has over 40 senior and semi-senior engineering technicians specializing in researching chemical battery and its management system. Parts of our engineers own more than 35years working experience in this battery field.
Main Products:
Hengming products from the material can be divided three series: NI-CD(nickel cadmium) battery, NI-FE(nickel iron)battery, NI-MH(nickel metal hydride)battery. From the performance by the useful wield can be divided four series: Ultra high rated, High rated, Medium rated& Low rated.
Main Market:
South American, Europe, Asia(Mexico, Peru, Brazil, Canada, New Zealand, Australian, Indonesia, Malaysia, Singapore, Korea, Vietnam, Burma, Thailand, Sudan, Iraq, Iran, Pakistan, Saudi Arabia, Kenya, Syria, Egypt, England, Spain, Poland, Turkey… )

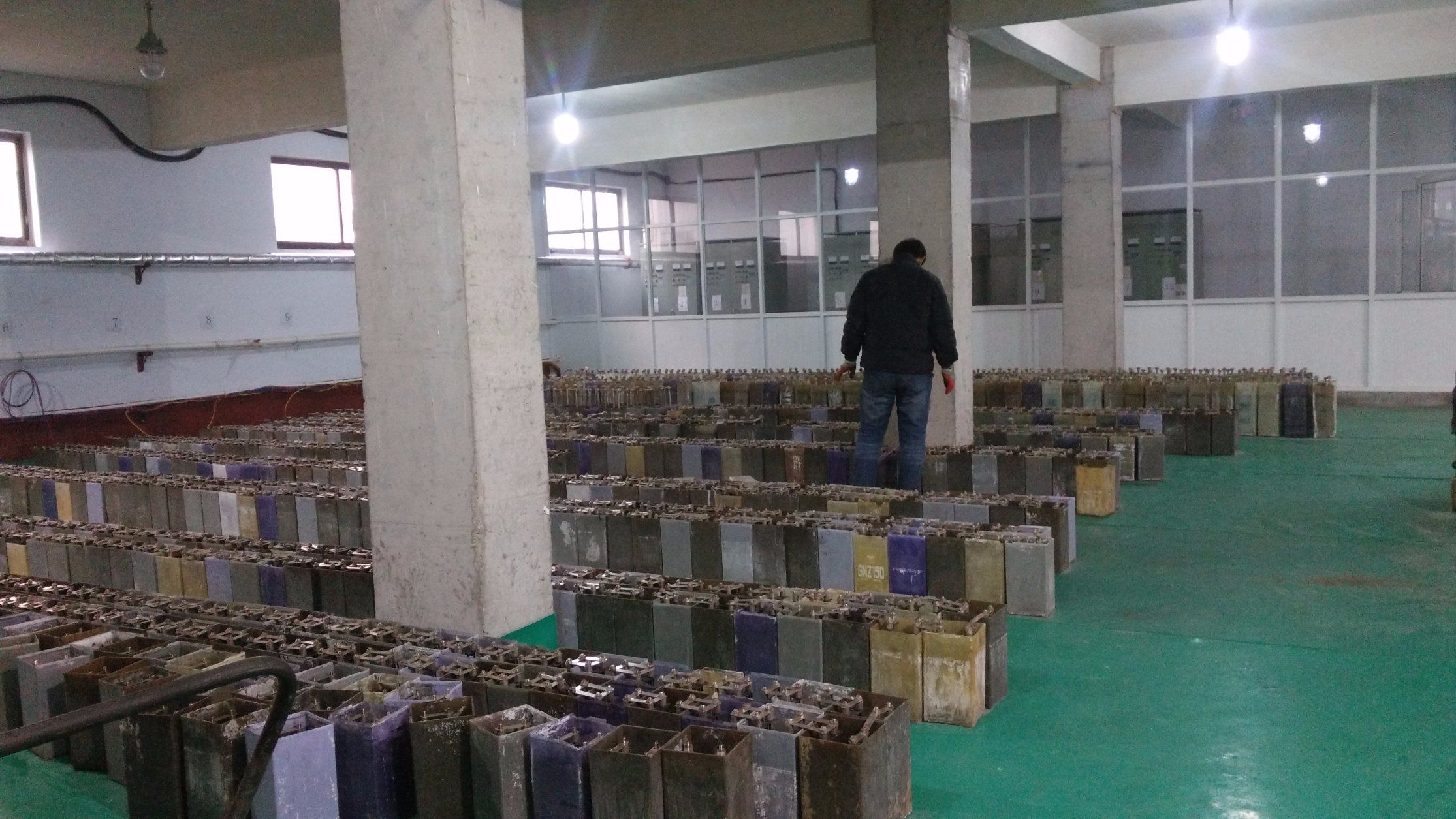

Production Ability:
Hengming annual output more than 50millions Ah to the world, and the highest production rate can meet 4.7millions Ah each month. 10 production lines could be working in the same time.
Company Focus:
Hengming always focus on the alkaline battery production quality and innovation. The quality is Hengming's root, only the root is strong enough, Hengming can be strong enough; Innovation is Hengming's sunlight, only the sunlight is more enough,
Hengming can be sunlight enough.
Products Application:
 UPS(uninterrupted power supply)
 Power system
 Telecommunications system
 Wind power plant/station
 Petrochemical Industry
 PV(photo voltaic) system
 Mass transits system
 Emergency lighting system
 Railway signaling
 Electrical power system
 Fire& security system
 Switch/process control system
 Switch gears
 Radio and radio stations, ect ...

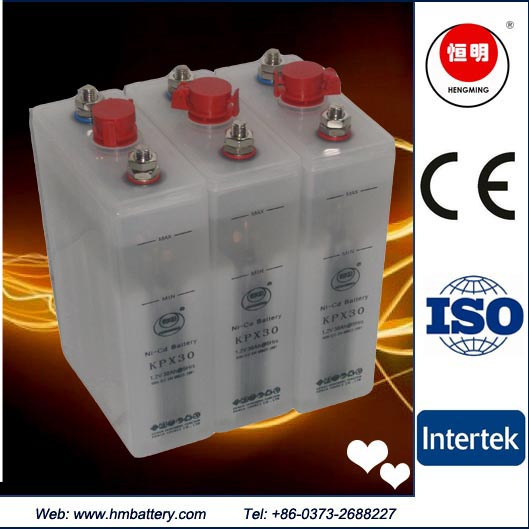

KPX series battery type:

KPX=GNC(Ultra High Rate Type)                Sintered----Sintered
Cell Type	Nominal Voltage (V)	Rated Capacity (Ah)	Dimension(mm)			Thread of pole	Weight  (filled)  (Kg)	Electrolyte  Volume  (L)	Container Material
			L	W	H
GNC5	1.2	5	81	26	163	M8	0.51	0.05	ABS
GNC10	1.2	10	81	26	163	M8	0.62	0.06	ABS
GNC10-(2)	1.2	10	81	34	245	M10	1.1	0.13	ABS
GNC20	1.2	20	81	34	245	M10	1.25	0.12	ABS
GNC20-(2)	1.2	20	138	61	266	M10	2.8	0.5	ABS/PP
GNC20-(3)	1.2	20	81	43	266	M10	1.7	0.2	ABS/PP
GNC30	1.2	30	81	43	266	M10	1.75	0.2	ABS/PP
GNC30-(2)	1.2	30	138	61	266	M10	3	0.5	ABS/PP
GNC40	1.2	40	81	43	266	M10	1.85	0.2	ABS/PP
GNC40-(2)	1.2	40	80	35	235	M10	1.5	0.16	Nylon
GNC40-(3)	1.2	40	138	61	266	M10	3.3	0.5	ABS/PP
GNC40-(4)	1.2	40	100	85	138	M10	1.6	0.2	ABS
GNC50	1.2	50	81	50	266	M10	2.14	0.25	ABS
GNC50-(2)	1.2	50	138	61	266	M16	3.5	0.5	ABS/PP
GNC60	1.2	60	81	50	266	M10	2.2	0.24	ABS
GNC60-(2)	1.2	60	138	61	266	M16	3.8	0.5	ABS/PP
GNC70	1.2	70	138	61	266	M16	4	0.4	ABS/PP
GNC80	1.2	80	138	61	266	M16	4.2	0.4	ABS/PP
GNC80-(2)	1.2	80	86	86	276	M10	3.6	0.45	PP
GNC80-(3)	1.2	80	86	86	305	M10	3.8	0.6	PP
GNC90	1.2	90	138	61	266	M16	4.3	0.4	ABS/PP
GNC100	1.2	100	138	61	266	M16	4.3	0.4	ABS/PP
GNC100-(2)	1.2	100	148	78	196	M16	4.3	0.25	ABS
GNC100-(3)	1.2	100	139	79	295	M16	5.5	1.4	ABS
GNC110	1.2	110	138	61	266	M16	4.5	0.4	ABS/PP
GNC110-(2)	1.2	110	139	79	295	M16	5.5	1.4	ABS
GNC120	1.2	120	138	61	266	M16	4.6	0.35	ABS/PP
GNC120-(2)	1.2	120	139	79	295	M16	5.5	1.4	ABS
GNC130	1.2	130	139	79	295	M16	5.6	1.4	ABS
GNC140	1.2	140	165	105	350	M20	9.5	1.9	ABS/PP
GNC140-(2)	1.2	140	139	79	362	M16	9	1.7	ABS/PP
GNC140-(3)	1.2	140	139	79	295	M16	6	1.3	ABS
GNC150	1.2	150	165	105	350	M20	9.5	1.8	ABS/PP
GNC150-(2)	1.2	150	139	79	362	M16	9.3	1.6	ABS/PP
GNC150-(3)	1.2	150	139	79	295	M16	6	1.2	ABS
GNC160	1.2	160	165	105	350	M20	9.5	1.75	ABS/PP
GNC160-(2)	1.2	160	139	79	362	M16	9.5	1.6	ABS/PP
GNC160-(3)	1.2	160	139	79	295	M16	6.5	1.5	ABS
GNC170	1.2	170	165	105	350	M20	9.5	1.7	ABS/PP
GNC170-(2)	1.2	170	139	79	295	M16	6.7	1.5	ABS
GNC170-(3)	1.2	170	139	79	362	M16	9.5	1.6	ABS/PP
GNC190	1.2	190	165	105	350	M20	9.9	1.7	ABS/PP
GNC210	1.2	210	165	105	350	M20	10.5	1.6	ABS/PP
GNC230	1.2	230	167	162	343	M16	13	2.8	ABS/PP
GNC230-(2)	1.2	230	146	128	363	M20	10	3	ABS
GNC250	1.2	250	167	162	343	M16	13	2.6	ABS/PP
GNC250-(2)	1.2	250	146	128	363	M20	10	3	ABS

discharge date: end voltage 0.85v/cell

Model	Capacity (Ah)	Minutes			Seconds
		10	5	3	90	60	30	10	5	1
GNC10	10	49.5	73	105	118	136	151	158	164	178
GNC20	20	109	168	216	242	307	326	339	353	374
GNC30	30	153	251	322	363	453	469	492	529	561
GNC40	40	198	316	413	485	582	632	657	706	748
GNC50	50	247	395	502	606	733	778	821	882	935
GNC60	60	297	474	619	727	853	923	985	1059	1122
GNC70	70	345	553	721	848	991	1076	1149	1235	1309
GNC80	80	396	631	826	970	1138	1229	1314	1412	1496
GNC90	90	445	712	928	1091	1276	1377	1478	1571	1652
GNC100	100	496	790	1004	1213	1412	1530	1642	1764	1870
GNC120	120	594	948	1238	1454	1586	1736	1970	2118	2247
GNC140	140	691	1106	1442	1693	1964	2040	2298	2470	2618
GNC170	170	843	1341	1706	1962	2291	2403	2784	2995	3172
GNC190	190	942	1501	1907	2104	2565	2807	3119	3351	3553
GNC210	210	1041	1659	2108	2404	2852	3013	3448	3704	3927
GNC230	230	1140	1717	2309	2689	3133	3419	3776	4057	4301
GNC250	250	1242	1775	2510	2831	3315	3625	4105	4410	4675

the more information wish to realize welcome to Selina in time, any question from you will be welcome.
