336V 100ah LiFePO4/Lithium Battery with BMS

Prod Model:	336V 100AH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	as Your Request
Color:	as Your Request
Green Energy:	Zero Emission
Cell:	32650
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Size:	as Your Request
Electrolyte:	LiFePO4

Product Description

OPTIMUM BATTERY manufacture and supply the highest quality LiFePO4 batteries, chargers and related accessories available today. Whether for a car, boat or bike we can supply the right battery for your application.

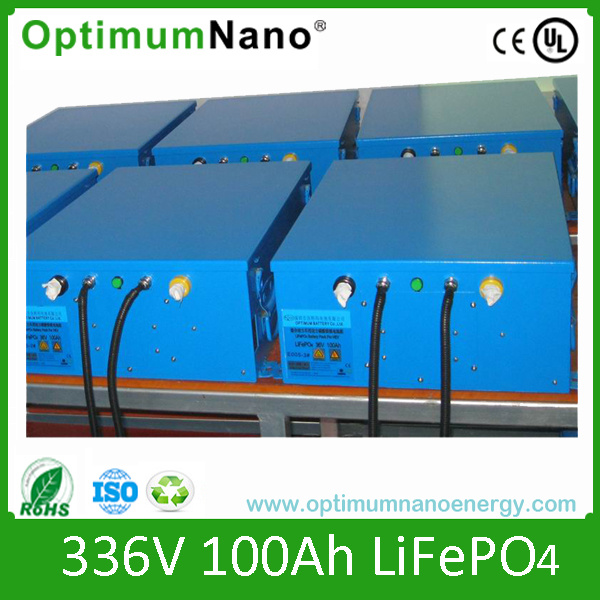

336V 100AH OPTIMUM LiFePO4 Battery Pack

Light Weight: 600kg.

Small Size: 8 big steel case, and 1 small steel case for Shenzhen Universiade.

Applications: BUS battery, Hybrid E-bus Li-ion battery, Hybrid Electric bus lithium battery, Hybrid bus battery, Hybrid automobile battery, wind and solar street light battery, UPS battery, emergency light battery, back up battery, LiFePO4 battery pack

For use on up to 33.6KW motors
Extremely Safe Chemistry
Extraordinary Long Cycle Life
No Memory Effect

Package with steel case

Banlancing function through BMS

Special LiFePO4 Battery Charger provided as require

Customize service provided

Key Features and Advantage of LiFePO4 Material

High Performance High theoretical capacity of 170mAh/g and high practical capacity as high as 165mAh/g.

Extremely Safe/Stable Chemistry High intrinsic safety, no explosion & will not catch fire under collision, overcharged or short circuit. High thermal stability of phases up to 500C.
High Rate Capability For all high power output applications.
Extraordinary Long Cycle Life Up to 2000 cycle life would be over 8 times life of lead acid, 3 times of NiMH, 2 times most lithium batteries.
Long Service Life Around 5~6 years.
Environmentally Friendly Non-toxic, non-contaminating. No rare metal UL, CE, SGS/RoHS approved.
Wide Working Temperature Range From -4 F to 150 F (-20 C +70C) Extremely cold and extremely hot weather will not affect its performance.
Flexible Form Factor Small in size and light in weight 1/3 weight of lead acid and 65% weight of NiMH.
No Memory Effect

1

2

Fast Charge Can be fully charged in a very short time ---2C fast charge within half hour.

In order to satisfy your needs, would you pls confirm those questions as below:
1. Your application
2. The rated power and the max load
3. The continous discharge current and the max discharge current
4. Your ideas
