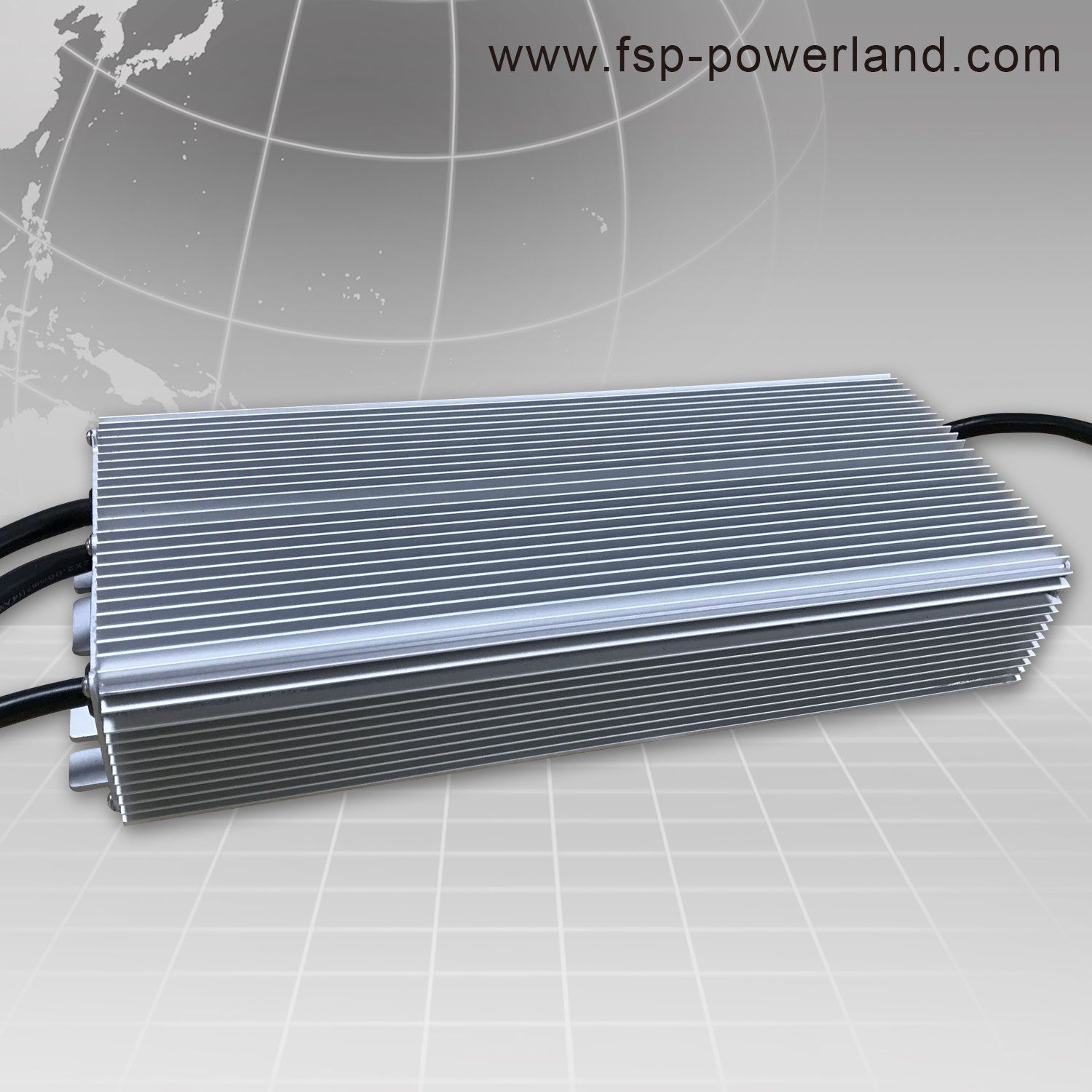

336W 24V Constant Voltage Programmable LED Power Supply

Name: 336W 24V Constant Voltage Programmable LED Power Supply
Brand: all-electronics-online.com
SKU: 818378485
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	US $ 78-120/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD500-SMT-24
Ocut Power:	336W
Output Voltage:	24V
Output Current:	0~14A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	280X123X54 mm
Brand:	Fsp-Powerland

Product Description

336W 24V Constant Voltage Programmable LED Power Supply

Powerland's PLD500-SMT-24 offers low-cost digital programmable constant voltage drivers with wide adjustable range, together with 12V/100mA auxiliary output (optional) for smart lighting.

The output voltage of this series is programmable up to 24V.

Applications
Outdoor & indoor LED lights
LED lights with flexible current settings
Parking lights and Architecture decoration lights
LED Horticulture lights
LED Fishing lights

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
108~305Vac	336W	24V	0~14A	93%	90ºC	3.81A	411W	<20%	>0.95

* Based on 25ºC ambient temperature, rated input voltage, and full load.

Features
> 70,000 hours lifetime at 75ºC Tcase
> 7 years warranty at 75ºC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant voltage output
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD500-SMT-54
Output Voltage	24V
Output Current	0~14A
Output Power	336W
Max. Voltage Ripple	150mVp-p
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current	3.81A
Max. Input Power	411W
Power Factor	>0.95 @ 120Vac & 80~100% load, >0.89 @ 277Vac & 80~100% load
Efficiency	93%
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70ºC
Max. Case Temperature	90ºC
Surge Protection	5.5kV11kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class A
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	280x123x54 mm (11.02x4.84x2.13 inch)
Mounting Length	290 mm (11.42inch)
Overall Length	304 mm (11.97 inch)
Weight	3.56 kg (7.85 lb)
Life Time	>70,000 hours @ full load, 75ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

Electrical Specifications

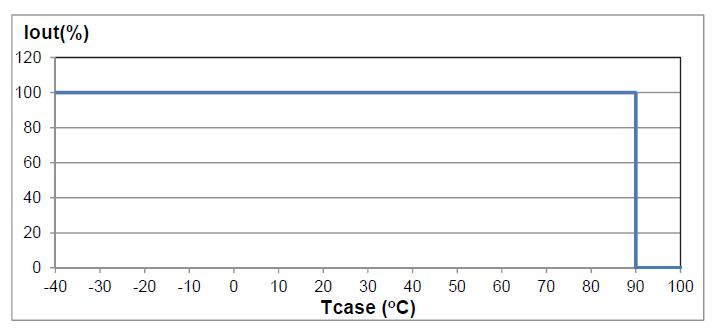

Output Current vs. Case Temperature (with ±5ºC Tolerance)

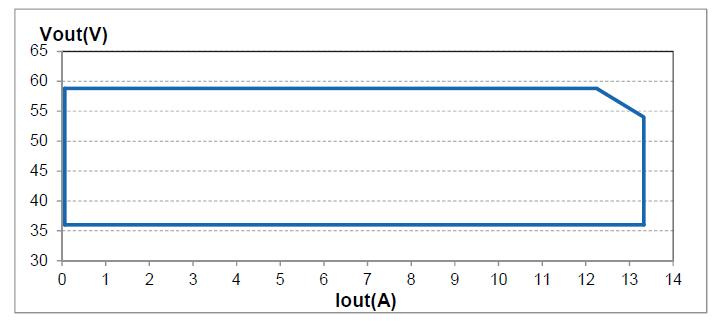

I-V Programming Area: Output Voltage vs. Output Current

Electrical Specifications

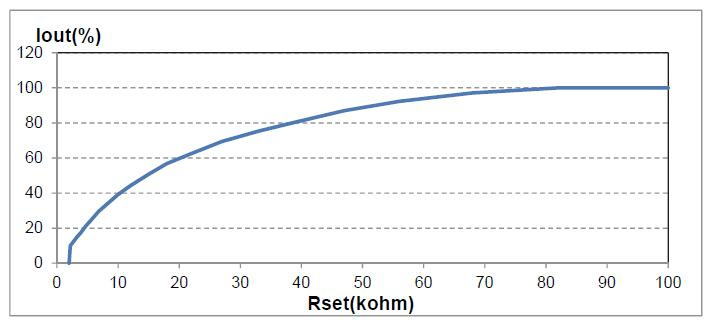

Output Current vs. External Setting Resistor

Performance Characteristics

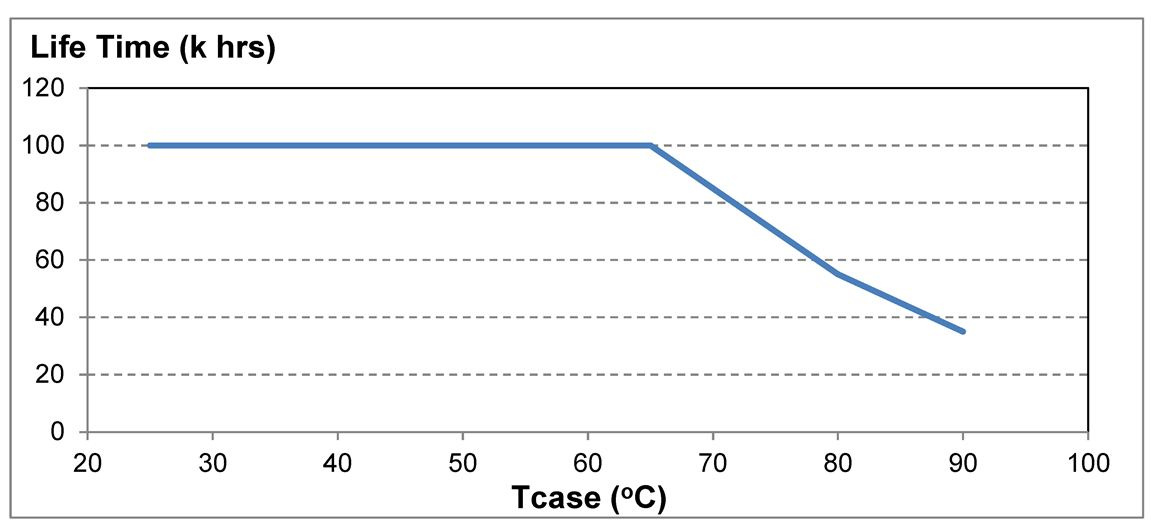

Life Time vs. Case Temperature

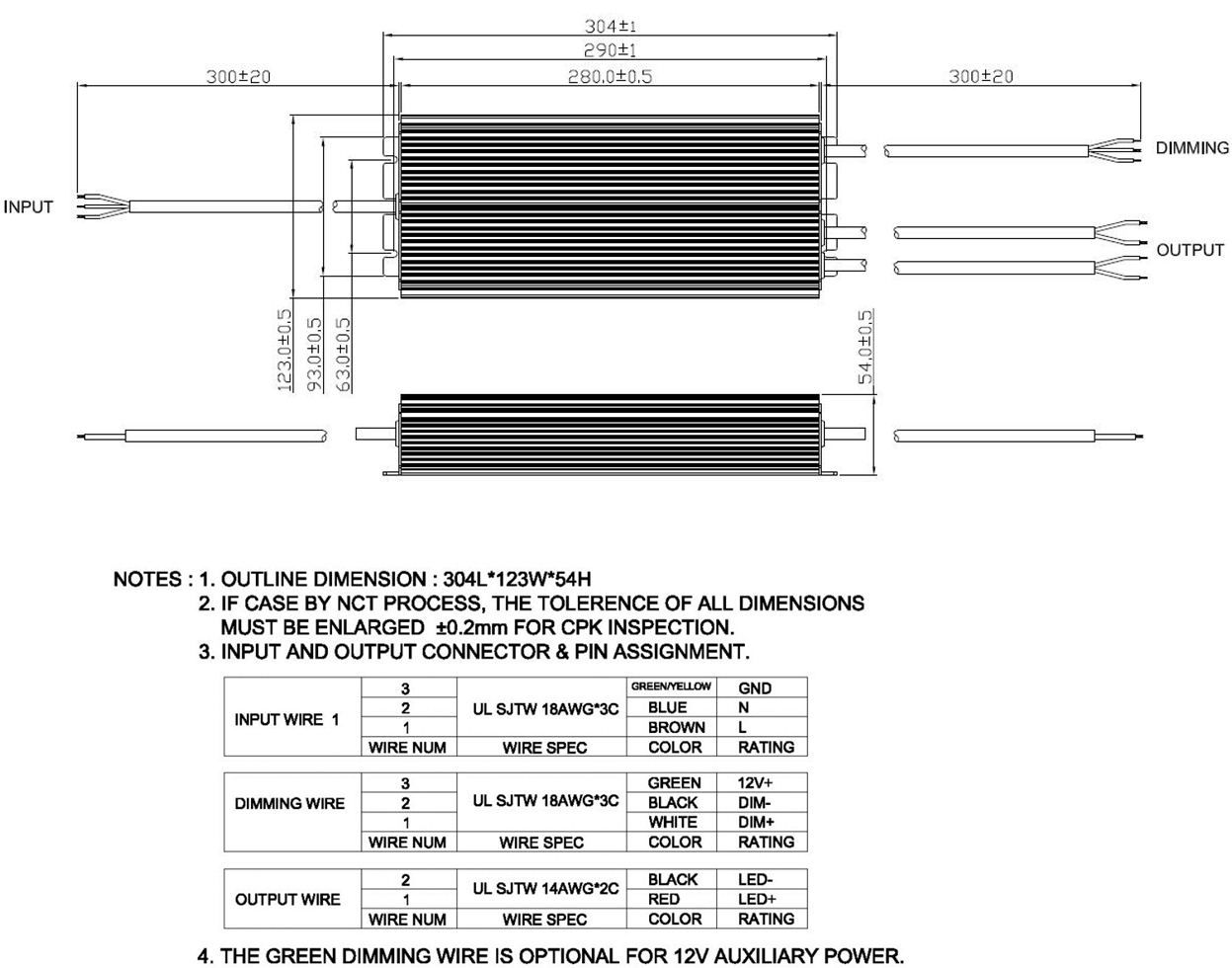

Mechanical Specification
