| Prod Model: |
PLD500-SMT-24 |
| Output Power: |
336W |
| Dimming: |
0(0.05)~10V, PWM, External Resistor, Clock, DMX |
| Output Voltage: |
24V |
| Output Current: |
0~14A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
108~305VAC |
| Pack Sealing Size: |
280X123X54 mm |
| Brand: |
Fsp-Powerland |
Product Description

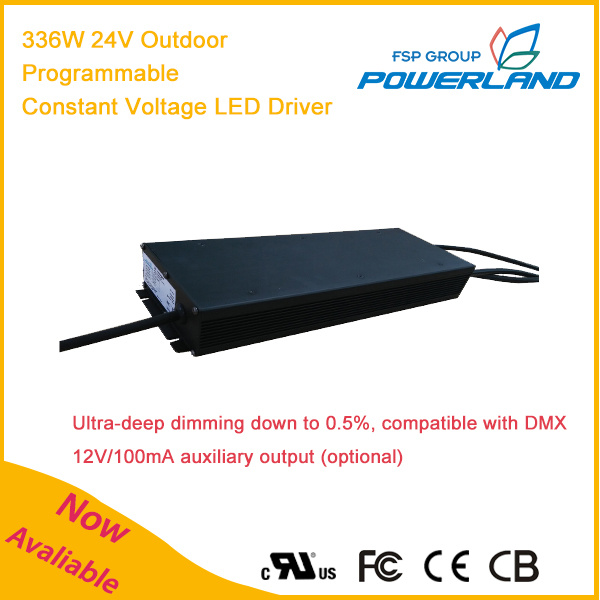

336W 24V Outdoor Programmable Constant Voltage Waterproof LED Driver
Powerland's PLD500-SMT-24 offers a constant voltage drivers with 108~305Vac universal input.
The output voltage is 24V, and designed with 93% efficiency and all-around protections.
ApplicationsOutdoor & indoor LED lights
LED lights with constant voltage
Street lights,high bay and low bay lights,LED panels
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 336W | 24V | 0~14.0A | 93% | 90oC | 3.81A | 411W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.Features
>70,000 hours lifetime at 75oC Tcase >7 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant voltage output
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD500-SMT-24 |
| Output Voltage | 24V |
| Output Current | 0~14A |
| Output Power | 336W |
| Max. Voltage Ripple | 150mVp-p |
| Voltage Range | 108~305Vac |
| Frequency Range | 47~63Hz |
| Max. Input Current | 3.81A |
| Max. Input Power | 411W |
| Power Factor | >0.95 @ 120Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
| Efficiency | 93.0% |
| Max. Open Circuit Voltage | N/A |
| THD | <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
| Protections | OVP, OTP, OCP, SCP |
| Environmental Protection | UL Dry & Damp & Wet |
| Working Temperature | -40~+70oC |
| Max. Case Temperature | 90oC |
| Surge Protection | 5.5kV/11kV |
| Agency Approbations | UL8750 |
| Electromagnetic Compliance | Per Title 47 CFR Part 15 Class A |
| Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
| Isolation(Primary to Secondary) | 3750Vac / 10mAMax / 60seconds |
| Isolation(Primary to Earth) | 1875Vac / 10mAMax / 60seconds |
| Isolation(Secondary to Earth) | 500Vac / 10mAMax / 60seconds |
| Dimension | 280x123x54 mm (11.02x4.84x2.13 inch) |
| Mounting Length | 290 mm (11.42inch) |
| Overall Length | 304 mm (11.97 inch) |
| Weight | 3.53 kg ( 7.78lb) |
| Life Time | >70,000 hours @ full load, 75oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

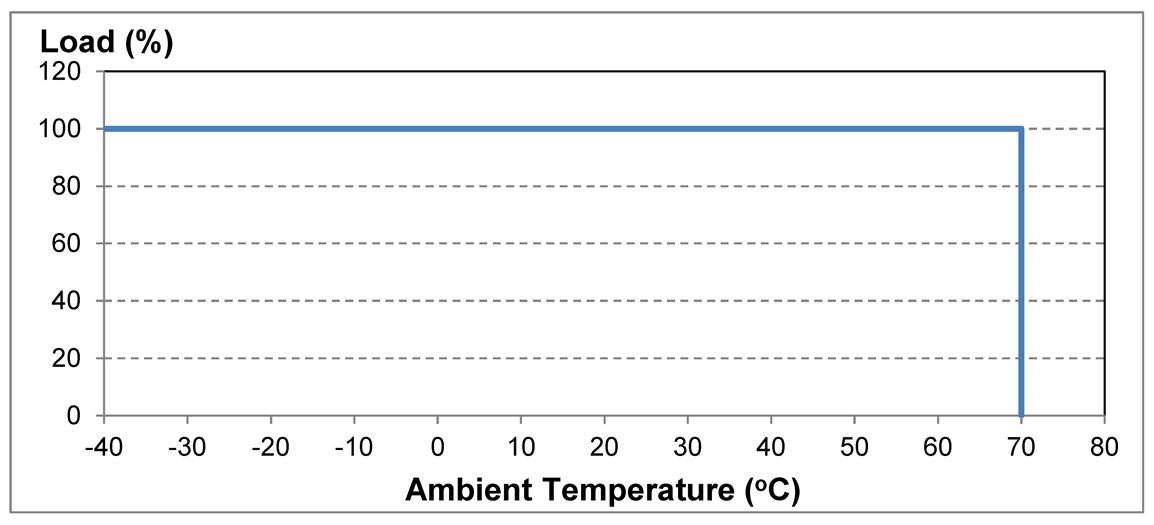

Dreating Curve

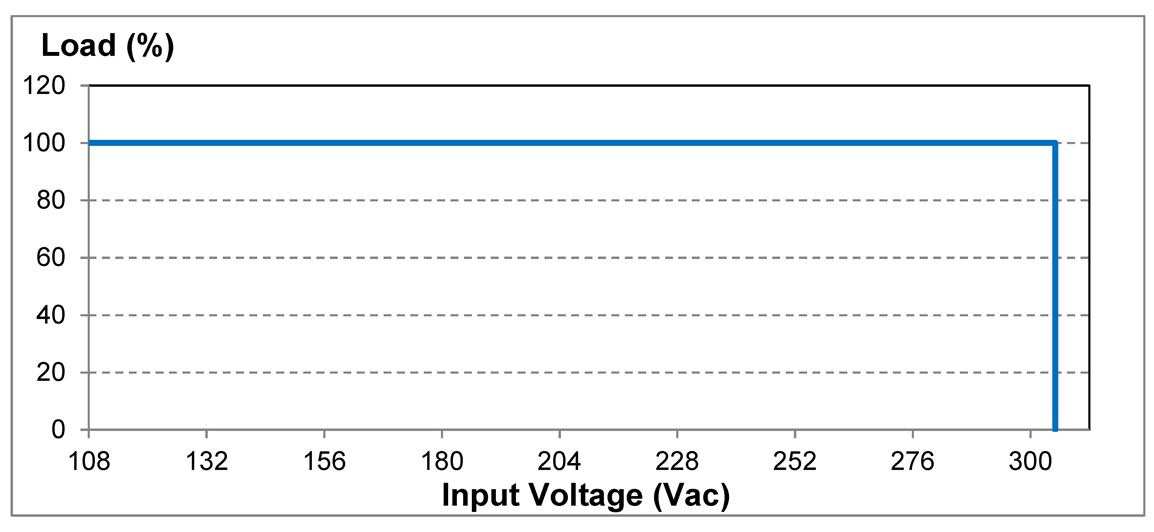

Static Characteristics
Electrical Specifications

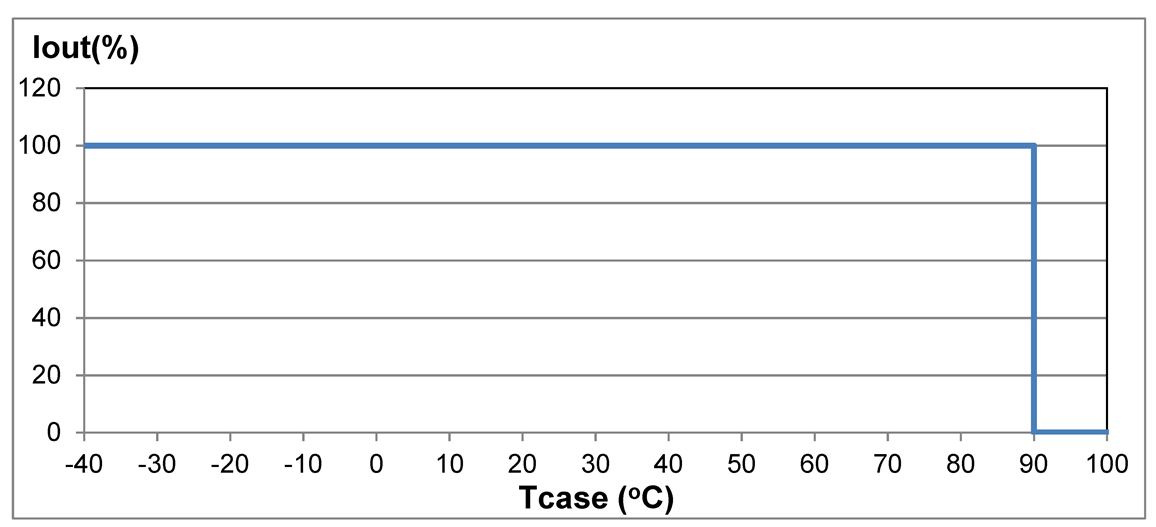

Output Current vs. Case Temperature (with ±5oC Tolerance)
Performance Characteristics

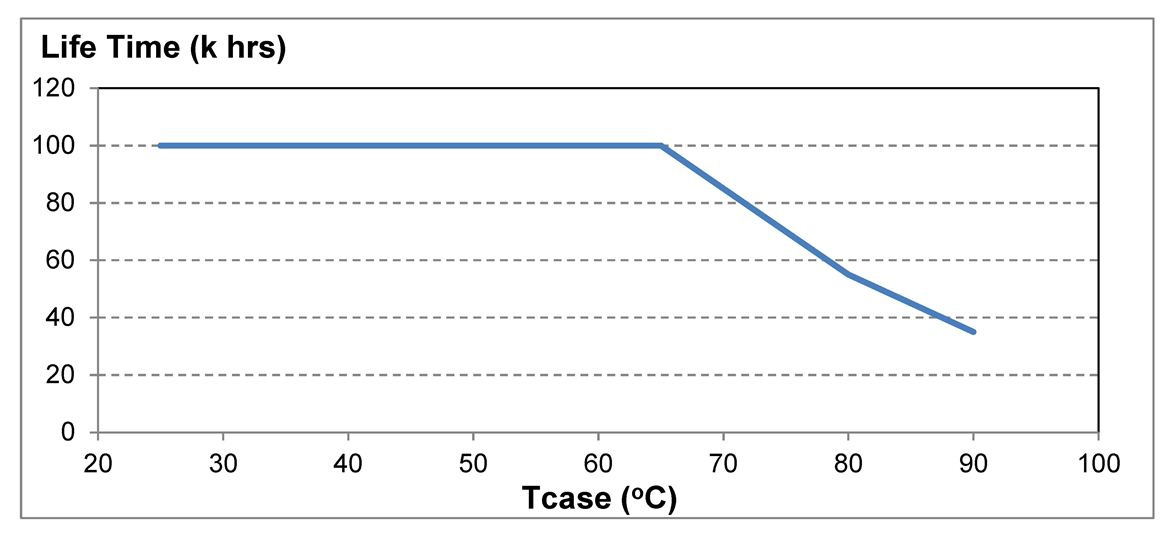

Life time vs. Case Temperature
Performance Characteristics
Power Factor vs. Output Power

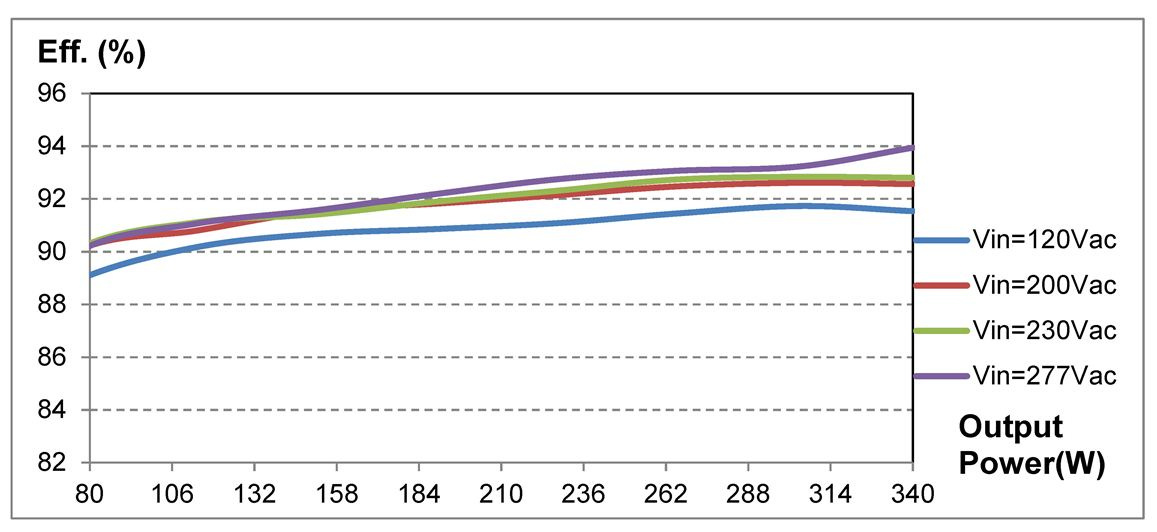

Efficiency vs. Output Power
