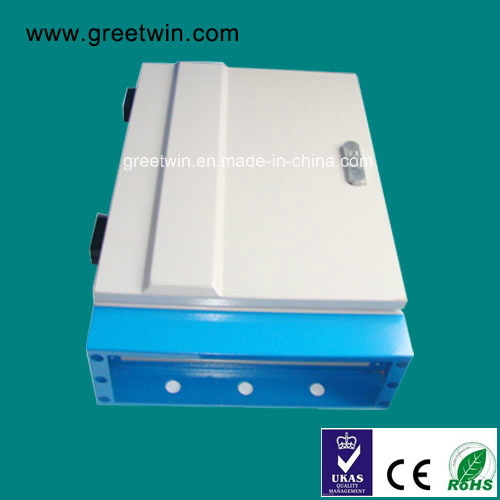

33dBm-43dBm WCDMA/3G Trunk Amplifier/Cellphone Signal Repeater (GW-43LAW)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GW-43LAW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| WCDMA: |
Line Amplifier |
| RF Connector: |
N-Type (Female) |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
Product Description
33dBm-43dBm WCDMA/3G Trunk Amplifier/Cellphone Signal Repeater (GW-43LAW)Model:GW-33LAW
GW-37LAW
GW-40LAW
GW-43LAW
Features:1. Work with RF repeaters to expand coverage.
2. Dust- proof chassis, prolong equipment lifetime.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Low UL noise design, improve repeater sensitivity, keep communication quality.
5. Aluminum-alloy casing with IP65 protection, cool system without fan.
6. In-built AGC & ALC function be able to ensure easy installation without setting.
7. Compact size and light weight, easy to install on wall or pole
8. High gain linear power amplifier technique with reliable performance
9. Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
Application:To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, highways
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Working Frequency (customizable) | Uplink | 1920- 1980MHz |
| Downlink | 2110- 2170MHz |
| Working Bandwidth | Customizable |
| Output Power (customizable) | Uplink≥ 0dBm, Downlink 33~43 dBm (2~20 W) |
| Gain | Uplink ≥ 40dB, Downlink ≥ 45dB |
| Gain Adjustment Range | 1~31 dB @ step of 1dB |
AGC (Automatic Gain Control) /
ALC (Automatic Level Control) | >20dB |
| Voltage Standing Wave Ratio (VSWR) | < 1.5 |
| Noise Figure | ≤ 6dB |
| In-Band Ripple | ≤ 3dB |
| Frequency Error | ≤ 0.05ppm |
| Spurious Emission and IMD3 | Comply with 3GPP TS 25.106 V6.0.0 |
| Adjacent Channel Power Ratio (ACPR) | P ≥31 dBm | (Offset 5MHz) ≥33dBc, (Offset 10MHz) ≥33dBc |
| P < 31 dBm | (Offset 5MHz) ≥20dBc, (Offset 10MHz) ≥20dBc |
| System Delay | ≤ 5.0μSec |
| Peak Code Domain Error (PCDE) | ≤ -35dB |
| I/O Impedance | 50Ω |
| RF Connector | N-Type (Female) |
| Temperature Range | Operation: -25°C ~ +55°C / Storage: -30°C ~ +60°C |
| Relative Humidity Range | ≤ 95% (non condensing) |
| Power Supply (customizable) | DC 48V / AC 85V - 265V, 45Hz - 65Hz |
| Power Consumption | ≤200W |
| Backup Power Supply (optional) | 4 hours |
| Casing Level | IP65 |
| Dimensions(cm) | 75x50x32 |
| Weight(kg) | ≤ 36 |
| NMS Monitoring Function (optional) | Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc.
Remote control such as turn on/off, increasing/decreasing output power, etc.
Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
Shenzhen Greetwin Technology Co., Limited is one of the leading suppliers which specializes in designing and manufacturing RF Jamming Equipment and Wireless Coverage Products.
Wireless Coverage Products include RF Repeater.
The RF Repeater solutions will bring smooth and clear calls, support all bandwidths and mobile standards including TETRA, iDEN, GSM850, EGSM, GSM900, DCS1800, PCS1900, CDMA800, CDMA450, LTE 4G, CDMA2000, 3G(WCDMA) as well as TD-SCDMA series.
Such as, Wide band Repeater, Band selective Repeater, Channel selective Repeater, Frequency-shifting Repeater, Fiber Optic Repeater, Digital ICS Repeater, TMA, TMB, Micro Repeater, Consumer Signal Booster.
We are committed to providing the best solutions for mobile operators, offering OEM and ODM service. Products can be customized according to different operators in the world and the output power are available from 0.01W to 200W.
Comprehensive repeater will supply optimizing solutions for vehicle, office, commercial center, countryside, tunnel, Mountain. etc.
RF Jamming Equipment include Cell Phone Signal Jammer and RF Communication Jammer(20-6000MHz).
GREETWIN is the foremost innovator in the field of RF jamming, offering a comprehensive range of jamming equipment and systems which have a proven record of reliability and performance in all types of applications and environmental conditions.
In countering the ever-growing threat of remotely controlled improvised explosive devices (RCIEDs), we has invested heavily in the development of a range of multi-band, very-high-power jamming systems for the protection of troop transportation, military and police checkpoints, large governmental establishments, bomb disposal squads and VIP convoys.
Such as, High power bomb jamming devices, Military IED jammers, Digital programable jammer, VIP Convoy Bomb Jammers (RCIED Jammers), Mobile Phone Signal Jammers, Prison Jammers, Portable Jammers, Handheld Jammers, to suit all types counter terrorism activities.
Our clients are government agencies, military, SWAT team, prison, school, bank, law enforcement and VVIPs. We also serve corporations and private individuals who must take responsibility for protecting assets, proprietary information, executives and family members.
GREETWIN products have been exported to more than 60 countries and regions around the world. Such as Southeast Asia, Africa, Europe, South America and the Middle East.
Let us hand in hand and create a glorious cause!
