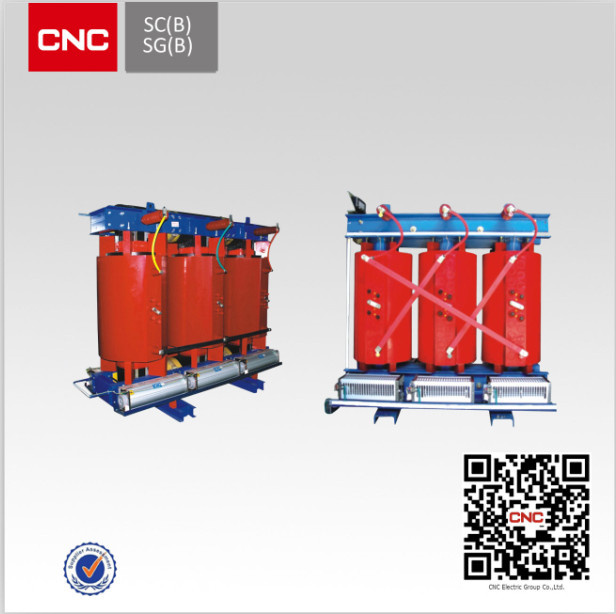

33kv 315kVA Manufacture Dry Type Transformer for Power Transformer

Name: 33kv 315kVA Manufacture Dry Type Transformer for Power Transformer
Brand: all-electronics-online.com
SKU: 804767955
Availability: InStock
Rating: 4.4 (70 reviews)

Price:	US $ 600-40000set
Min Order:	1set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCB9
Type:	Sc(G)Btransformer
Rated Capacity:	100--2500 Kv
Voltage:	up to 35kv
Application:	Electronic
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Phase:	Single or Three
Frequency Characteristics:	50/60Hz
Brand:	CNC

Product Description

33kv 315kVA Manufacture Dry Type Transformer for Power Transformer

1: CCC, CE, IEC, ISO
2: Low local discharge
3: Strong capability of lightning impact
4: Strong over-load

Main data:
1.35kv And Below
2. Standards: IEC 60076
3. Rated capacity: 30kVA~2500kVA

II. Characteristics:
1)Low local discharge
2)Strong capability of lightning impact
3)Strong ability to resist short-circuit
4)Good performance of anti-drying crack
5)Strong over-load capability
6)Good flame retardancy
7)Low noise
8)Low consumption
9)Certificate: ISO9001: 2000, ISO14001: 1996, CE

Rate capacity(KVA)	No-load loss (W)	Load loss (W)	LPA (DB) Sound' s level	Weight (kg)	Dimension (mm)				LV Terminal	No-load current (%)	Impedance Voltage (%)
Rate capacity(KVA)	No-load loss (W)	Load loss (W)	LPA (DB) Sound' s level	Weight (kg)	a	b	c	d	LV Terminal	No-load current (%)	Impedance Voltage (%)
30	220	660	40	280	600	400	650	350	25*3	2.0	4.0
50	310	930	42	340	600	400	705	350	25*3	1.5
80	420	1280	44	565	730	500	740	450	25*3	1.1
100	450	1460	46	610	760	500	775	450	30*3	1.1
125	530	1710	48	640	760	500	840	450	30*3	1.0
160	610	1970	50	830	1060	600	1000	550	40*3	0.9
200	700	2340	50	990	1070	600	1050	550	40*3	0.9
250	810	2550	50	1160	1120	750	1080	550	40*4	0.9
315	990	3210	51	1340	1120	750	1135	660	50*4	0.8
400	1100	3690	51	1600	1210	750	1225	660	50*5	0.8
500	1310	4520	53	1830	1260	750	1185	660	60*5	0.7
630	1460	5510	53	1870	1440	750	1180	660	60*6	0.6	6.0
800	1710	6430	53	2140	1470	750	1285	660	80*6	0.5
1000	1990	7520	55	2500	1520	900	1325	820	80*8	0.5
1250	2350	8960	55	2980	1640	900	1355	820	100*8	0.4
1600	2760	10830	55	3530	1710	900	1510	820	100*10	0.4
2000	3400	13360	55	4450	1820	1200	1565	1070	100*12	0.3
2500	4000	15880	55	5230	1920	1200	1680	1070	120*12	0.3
1600	2760	11970	55	3630	1800	900	1480	820	100*10	0.4	8.0
2000	3400	14760	55	4550	1900	1200	1540	1070	100*12	0.3
2500	4000	17470	55	5330	2010	1200	1650	1070	120*12	0.3
