| Prod Model: |
LB |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
Self Stand |
Product Description
1. Product Functions

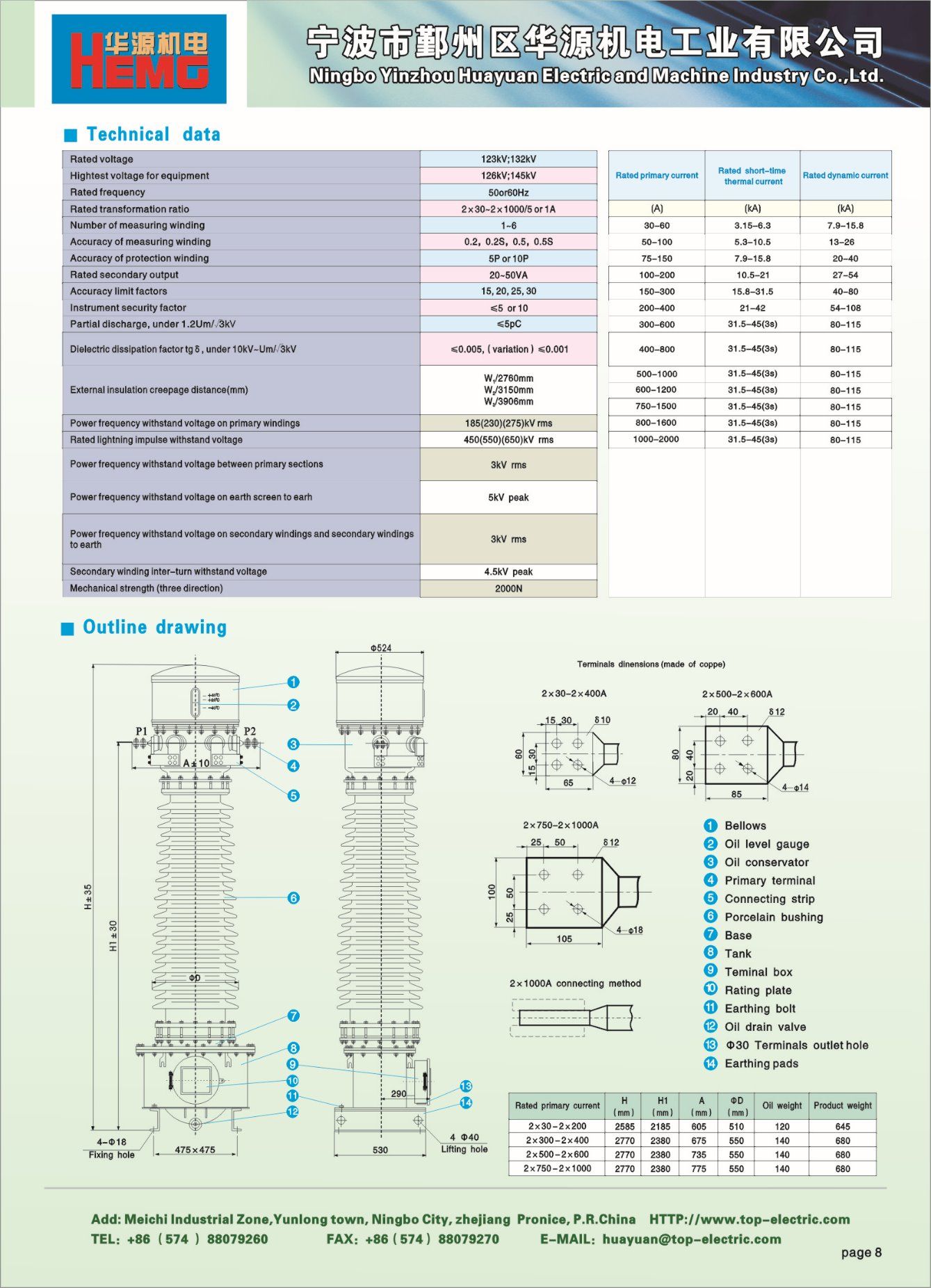

LB-132W2 type current transformer applies to AC power systems at highest voltage of 132kV and rated frequency of 50Hz/60HZ, The functions are current, electric energy metering and measuring, busbar differential protection, overcurrent protection, and distance protection.
2.Standards
IEC Standard: IEC60044-1 (Current Transformer)
National Standard: GB1208 (Current Transformer}
3.System condition
System Rated Voltage: 123kV,132kV
System Highest Voltage: 123kV,145kV
System Rated frequency: 50Hz or 60Hz
System neutral earthing method: effectively earthed
4.Structure feature
• It is oil/paper insulation system, the primary insulation is wound from high voltage cable paper. and is placed several capacitor screen of voltage division in the primary insulation, which can improve electric field distributing and decrease the consumption of insulation material. It will be immersed with transformer oil after desiccating under vacuum. It has advantages of stable and reliable performance of insulation,rich successful experience, a long life time and convenient maintenance.
• Perfect fluidity perormance of transformer oil is good for heat dissipation, it also has self recover ability for the failure of panial discharge caused by air bubble and dust.
• The current ratio can be changed easily by change the connection method of connecting plate on oil conservator to series or parallel connection.
• Hermetically sealed stainless steel metallic bellows is installed on the top, which protect the transformer oil form moisture and extend the life time, also there is a oil level gauge on the bellows for observing the changing of oil volume.
• There is a multi function oil drain valve on the base, which make it more convenient for sampling, draining and refillirlg.
• The primary terminal and secondary terminal board are made of epoxy casting, the seal performance is more reliable.
• There is a individual terminal of earth screen in the terminal box.
• The oil conservator and base etc use DACRAL (Zinc/Chromate coatings) for resistance to corrosion, which gives a high degree of corrosion resistance.
The primary over -voltage protection device and secondary open circuit over voltage protection device can be provided according to -
the requirements of use
.
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
