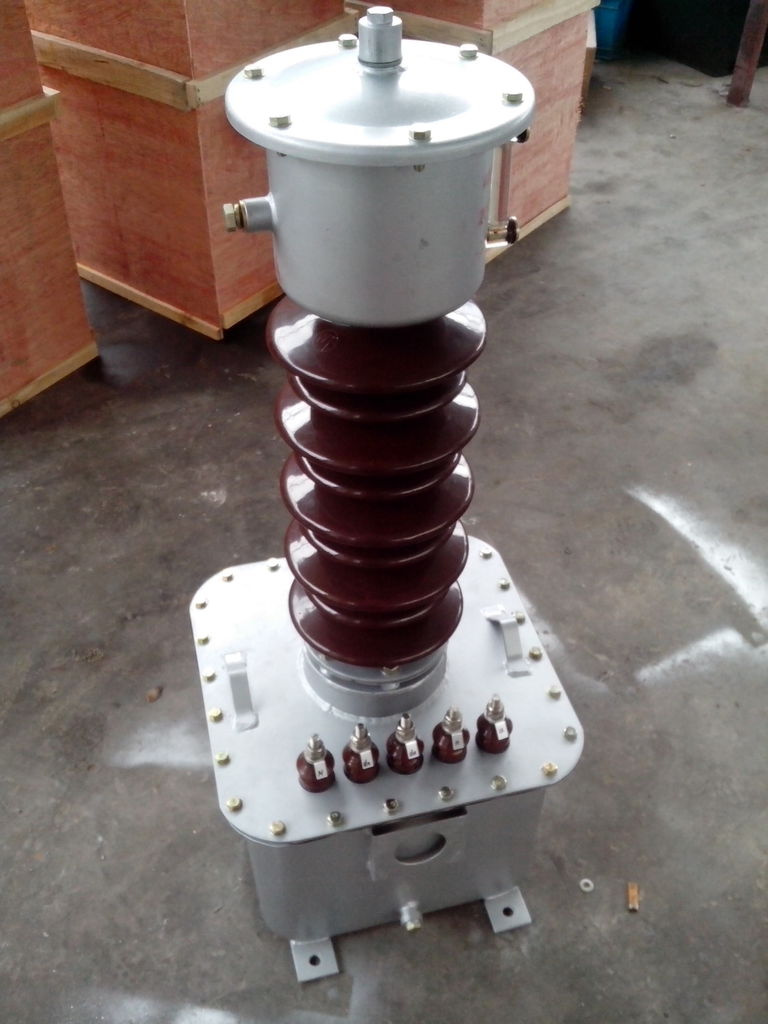

33kv Inductive Oil Current Transformer with Excellent Price
| Price: |
US $ 1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
LCWD |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
| 8.01.MANUFACTURER′S GUARANTEED TECHNICAL DATE SCHEDULE |
| FOR 33kv OUTDOOR TYPE SINGLE PHASE CURRENT TRANSFORME |
| | | | | | | |
| | | | | | | |
| S1.No. | Description | Unit | BPDB′S Requirement | Manufacturer′s Guaranteed Particulars |
| 1 | Manufacturer′s name&country | | To be mentioned | HEMG |
| 2 | Manufacturer′s model no. | | To be mentioned | LCWD-33KV |
| 3 | Application | | Metering&Protection | 0.2/5P10 |
| 4 | Type | | Induction | INDUCTION |
| 5 | Installation | | Outdoor | Outdoor |
| 6 | Construction | | Sealed Tank | Sealed Tank |
| 7 | Insulation | | Oil | Oil |
| 8 | Number of Phase | | | Single | Single |
| 9 | Rated Frequency | Hz | 50 | 50 |
| 10 | Mounting | | On Supporting Structure | On Supporting Structure |
| 11 | Primary Rated Voltage (Phase to phase) | kv | 33 | 33 |
| 12 | Maximum System Voltage(Phase to phase) | kv | 36 | 36 |
| 13 | System Earthing | | Effectively earthed | Effectively earthed |
| 14 | Basic Insulation Level(1.2/50µsec.) | kv | 170 | 170 |
| 15 | Power Frequency Withstand Voltage (1 min.50Hz). | kv | 70 | 70 |
| 16 | CT Ratio:- | | | |
| | a)300-600/5/5A | | a)300-600/5/5A | a)300-600/5/5A |
| | b)200-400/5/5A | | b)200-400/5/5A | b)200-400/5/5A |
| | c)100-200/5/5A | | c)100-200/5/5A | c)100-200/5/5A |
| | d)50-100/5/5A | | d)50-100/5/5A | d)50-100/5/5A |
| 17 | Type of Winding : | | | |
| | a)Primary | | Single Winding | Single Winding |
| | b)Secondary | | Double Winding | Double Winding |
| 18 | Accuracy Class | | | |
| | a)for Measurement | | 0.2 | 0.2 |
| | b)for Protection | | 5P15 | 5P15 |
| 19 | Burden: | | | |
| | a)for Measurement | VA | 20 | 20 |
| | b)for Protection | VA | 20 | 20 |
| 20 | Short Time Current Rating,for 3sec. | KA | 25 | 25 |
| 21 | Extended Current Rating (%of rated current) | % | 120 | 120 |
| 22 | Over Current Rating | | A | 10 | 10 |
| 23 | Creepage Distance | mm/kv | 25 | 25 |
| 24 | Rated Accuracy Limit factor(ALF) | | To be mentioned | 0.2/5P15 |
| 25 | Knee-point Voltage | | V | To be mentioned | 150 |
| 26 | Bushing | | Procelain outdoor type | yes |

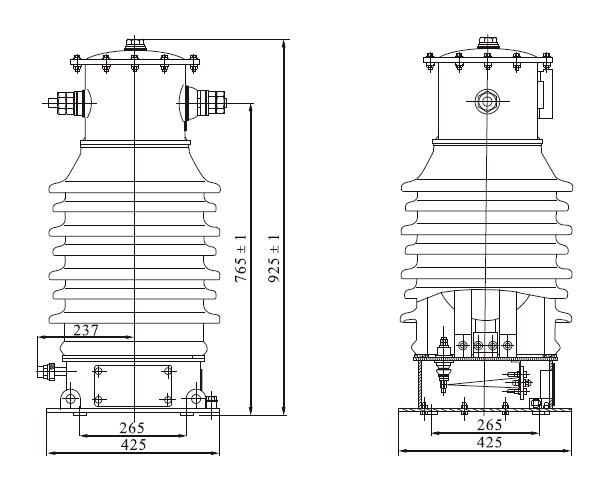

| 27 | Outling Dimensional&Cross-section Drawings of offered CT&Mounting structure | | TO be submitted | 47x45x115CM -yes |
| 28 | Printed catalogue describing specification and technical data of the offered type CT | | TO be submitted | yes |
| 29 | Standard | | As per relevant IEC60044-1 | yes |
