33kv Medium Voltage Voltage Transformer Manufacturer

Name: 33kv Medium Voltage Voltage Transformer Manufacturer
Brand: all-electronics-online.com
SKU: 714469222
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	US $ 1500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZW-35
Application:	Instrument
Type:	Voltage Transformer
Phase:	Single

Product Description

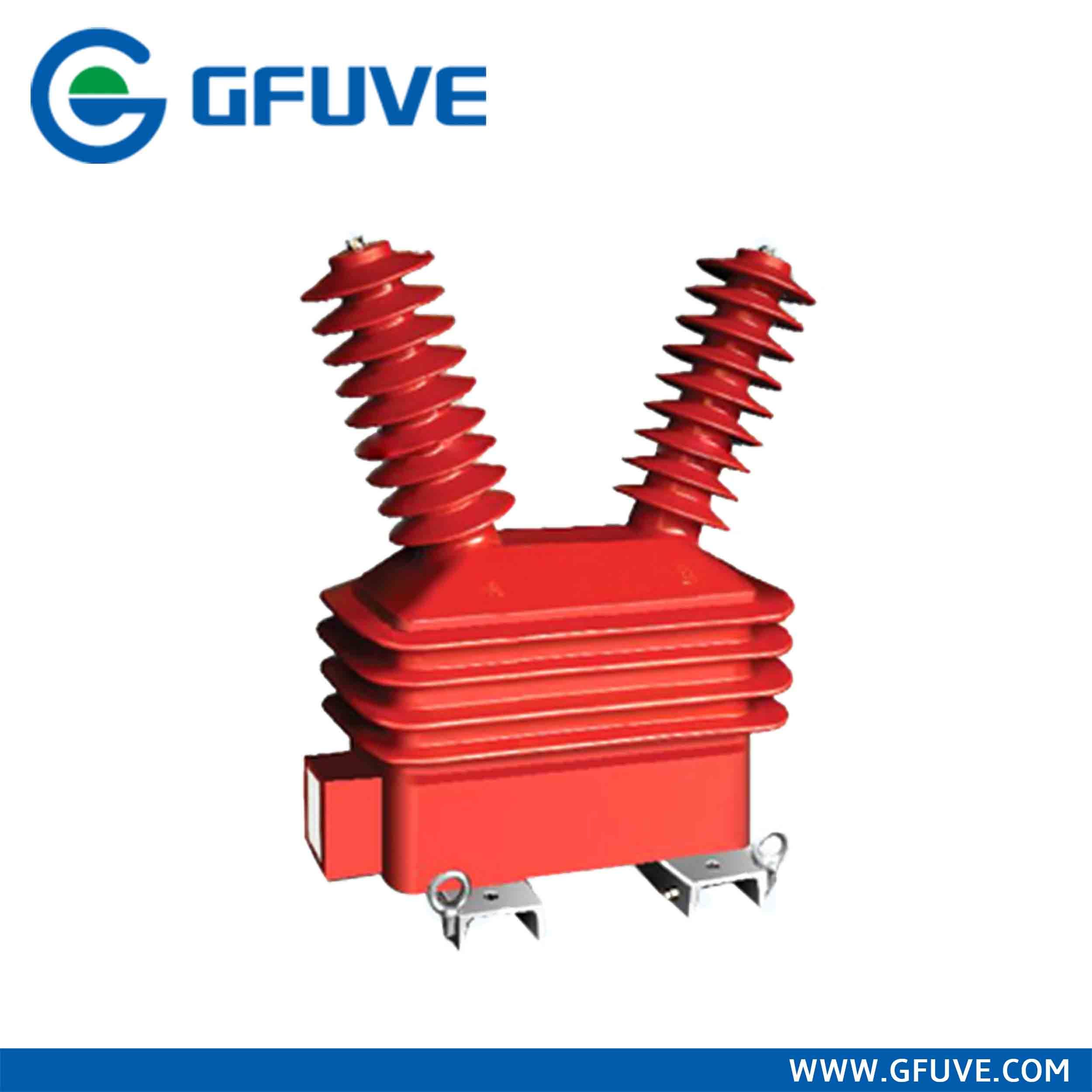

JDZW-35 JDZXW-35G 33KV MEDIUM VOLTAGE VOLTAGE TRANSFORMER MANUFACTURER

GFUVE Electronics is a medium voltage potential transformer Manufacturer. manufactures an extensive line of cast epoxy resin insulated transformers across the voltage range of 5.5 kV to 72.5 kV. This model JDZW-35 JDZXW-35G are outdoor Voltage Transformers in the 36 kV class with performance ratings coinciding with industry standard product offerings. GFUVE Electronics, because of product depth, familiarity with international standards and custom design capability can also design a solution to your specific needs.

PARAMETERS

Model	Rated Voltage Ratio(KV)	Accuracy class and Accuracy class combination rated secondary output (VA)	Limited output (VA)	Rated insulation level (KV)	Surface creepage distance (mm)	Once fuse(A)	Wt(KG)
JSZW-35	35000/100	0.2---60 0.5---150 1---300 3---600	1200	40.5/95/200	1480	0.2	120
JSZW-35	35000/100/100	0.2/0.2---30/30 0.2/0.5---30/10 0.5/0.5---60/60	600/600
JDZXW-35G	35000/√3 100/√3 100/√3	0.2/6P(3P)---10/100 0.5/6P(3P)---90/100 1/6P(3P)---200/100 3/6P(3P)---500/100	600
JDZXW-35G	35000/√3 100/√3 100/√3 100/√3	0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/20/100 0.5/0.5/6P(3P)---30/30/100	300/300

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
