| Prod Model: |
ABC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
ASTM B230, B231, B232, B398, B399, B400 |
| Delivery Length: |
Accord with The Request |
| Voltage: |
600V |
| Capacity: |
5000km/Week |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Sheath Material: |
None |
| Brand: |
Henan Jiapu |
Product Description
33kV MV ABC Quadruplex Service Drop Wire
Application:
The quadruplex cables are suitable for use as drop cable from a pole-mounted transformer,to the service entrance of a structure,or as secondary distribution between poles.The cables should be limited to the voltages of 600 volts or less (phase to phase) at conductor temperatures not to exceed 75°C for polyethylene insulation conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.
Construction:
The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.The conductors are manufactured with ridges for phase identification(one conductor with one ridge,one conductor with two ridges ,one conductor is plain).

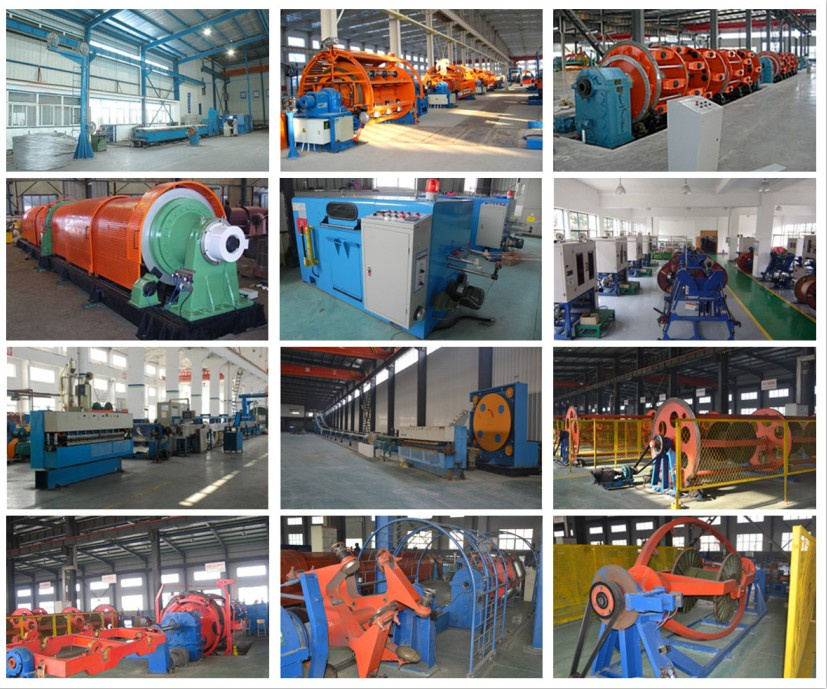

Workshop

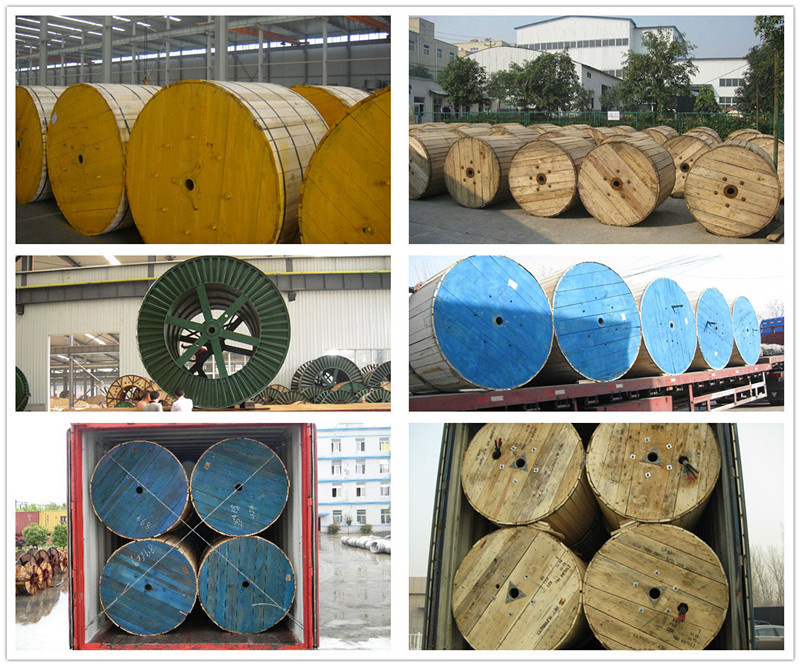

Shipment
FAQ1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
Specifications:
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | Code Name | Phase Conductor | Bare Neutral | Approx.Weight |
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE |
| AWG | - | mil | AWG | - | lbs/1000ft | AWG | - | mil | AWG | - | lbs/1000ft |
| 6201 Alloy Neutral Messenger | 6201 Alloy Reduced Neutral Messenger |
| Minex | 6 | Solid | 45 | 6 | 7 | 106.6 | 102.9 | Artemia | 4 | Solid | 45 | 6 | 7 | 141.4 | 137.1 |
| Hippa | 6 | 7 | 45 | 6 | 7 | 113.2 | 105.7 | Crab | 4 | 7 | 45 | 6 | 7 | 151.3 | 141.2 |
| Prawn | 4 | Solid | 45 | 4 | 7 | 158.4 | 154.1 | Solaster | 2 | 7 | 45 | 4 | 7 | 226.6 | 212.6 |
| Barnacles | 4 | 7 | 45 | 4 | 7 | 168.3 | 158.2 | Sandcrab | 1/0 | 7 | 60 | 2 | 7 | 368.8 | 343.1 |
| Shrimp | 2 | 7 | 45 | 2 | 7 | 253.7 | 239.7 | Echinus | 1/0 | 19 | 60 | 2 | 7 | 358.8 | 343.1 |
| Gammarus | 1/0 | 7 | 60 | 1/0 | 7 | 411.7 | 386.0 | Crayfish | 2/0 | 7 | 60 | 1 | 7 | 452.6 | 422.5 |
| Leda | 1/0 | 19 | 60 | 1/0 | 7 | 402.7 | 386.0 | Sipho | 2/0 | 19 | 60 | 1 | 7 | 441.0 | 422.5 |
| Dungenese | 2/0 | 7 | 60 | 2/0 | 7 | 506.8 | 476.3 | Fulgar | 3/0 | 19 | 60 | 1/0 | 7 | 543.4 | 521.1 |
| Cyclops | 2/0 | 19 | 60 | 2/0 | 7 | 495.3 | 476.3 | Arca | 4/0 | 19 | 60 | 2/0 | 7 | 671.2 | 644.6 |
| Flustra | 3/0 | 19 | 60 | 3/0 | 7 | 611.4 | 589.1 |
|
|
|
|
|
|
|
|
| Lepas | 4/0 | 19 | 60 | 4/0 | 7 | 757.1 | 730.5 |
|
|
|
|
|
|
|
|
| ACSR Neutral Messenger | ACSR Reduced Neutral Messenger |
| Paludina | 6 | Solid | 45 | 6 | 6/1 | 114 | 113 | Scallop | 4 | Solid | 45 | 6 | 6/1 | 148 | 144 |
| Voluta | 6 | 7/w | 45 | 6 | 6/1 | 120 | 113 | Strombus | 4 | 7/w | 45 | 6 | 6/1 | 158 | 148 |
| Whelk | 4 | Solid | 45 | 4 | 6/1 | 169 | 165 | Cockle | 2 | 7/w | 45 | 4 | 6/1 | 233 | 227 |
| Periwinkle | 4 | 7/w | 45 | 4 | 6/1 | 176 | 172 | Janthina | 1/0 | 7/w | 60 | 2 | 6/1 | 376 | 365 |
| Conch | 2 | 7/w | 45 | 2 | 6/1 | 267 | 261 | Ranella | 1/0 | 19/w | 60 | 2 | 6/1 | 372 | 362 |
| Neritina | 1/0 | 7/w | 60 | 1/0 | 6/1 | 530 | 419 | Cavolinia | 2/0 | 7/w | 60 | 1 | 6/1 | 462 | 451 |
| Cenia | 1/0 | 19/w | 60 | 1/0 | 6/1 | 426 | 416 | Clio | 2/0 | 19/w | 60 | 1 | 6/1 | 458 | 446 |
| Runcina | 2/0 | 7/w | 60 | 2/0 | 6/1 | 530 | 519 | Sanddollar | 3/0 | 7/w | 60 | 1/0 | 6/1 | 570 | 557 |
| Triton | 2/0 | 19/w | 60 | 2/0 | 6/1 | 526 | 514 | Aega | 3/0 | 19/w | 60 | 1/0 | 6/1 | 565 | 552 |
| Cherrystone | 3/0 | 7/w | 60 | 3/0 | 6/1 | 656 | 643 | Cuttlefish | 4/0 | 7/w | 60 | 2/0 | 6/1 | 706 | 691 |
| Mursia | 3/0 | 19/w | 60 | 3/0 | 6/1 | 650 | 638 | Cerapus | 4/0 | 19/w | 60 | 2/0 | 6/1 | 699 | 684 |
| Razor | 4/0 | 7/w | 60 | 4/0 | 6/1 | 814 | 799 | Cowry | 336.4 | 19/w | 80 | 4/0 | 6/1 | 1135 | 1093 |
| Zuzara | 4/0 | 19/w | 60 | 4/0 | 6/1 | 805 | 792 |
|
|
|
|
|
|
|
|
| Limpet | 336.4 | 19/w | 80 | 336.4 | 18/1 | 1209 | 1167 |
|
|
|
|
|
|
|
|
| AAC Neutral Messenger |
| Haiotis | 6 | Solid | 45 | 6 | 7 | 102.5 | 98.8 | Purpura | 1/0 | 19/w | 60 | 1/0 | 7 | 386.1 | 369.4 |
| Patella | 6 | 7/w | 45 | 6 | 7 | 109.1 | 101.6 | Nassa | 2/0 | 7/w | 60 | 2/0 | 7 | 485.8 | 455.3 |
| Fusus | 4 | Solid | 45 | 4 | 7 | 151.9 | 147.6 | Melita | 3/0 | 19/w | 60 | 3/0 | 19 | 585.2 | 562.9 |
| Oyster | 4 | 7/w | 45 | 4 | 7 | 161.8 | 151.7 | Portunus | 4/0 | 19/w | 60 | 4/0 | 19 | 723.9 | 697.3 |
| Clam | 2 | 7/w | 45 | 2 | 7 | 243.2 | 229.2 | Nannynose | 336.4 | 19/w | 80 | 336.4 | 19 | 1160.4 | 1118.0 |
| Murex | 1/0 | 7/w | 60 | 1/0 | 7 | 395.1 | 369.4 |
|
|
|
|
|
|
|
|
