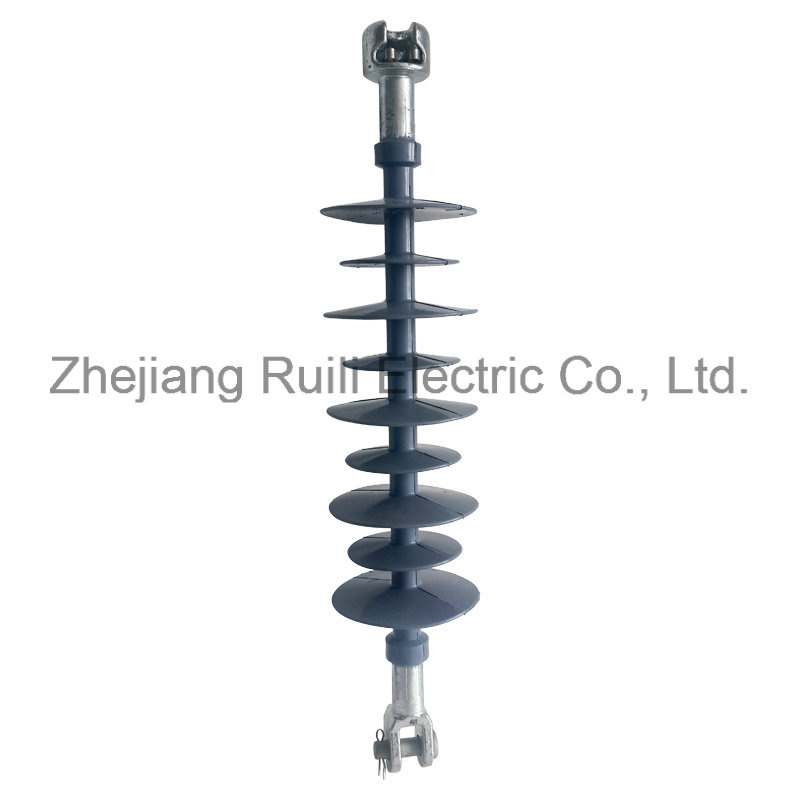

33kv Polymer Suspension Insulator (socket-clevis)

Name: 33kv Polymer Suspension Insulator (socket-clevis)
Brand: all-electronics-online.com
SKU: 764293795
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-33
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Color:	Grey
Brand:	Grey

Product Description

Company Introduction:

Model Type	Rated Voltage	Rated Mechanical Load(KN)	Structure Height H. (mm)	Insulating Distance Li. (mm)	Min Creepage Distance(mm)	Lightning Impulse Withstand Voltage(peak)/KV	P. F Wet Withstand Voltage(virtual value)(KV)
FXBW4-12/70	12	70	370	200	480	75	42
FXBW4-12/100	12	100	405	200	480	75	42
FXBW4-24/70	24	70	550	370	850	185	75
FXBW4-24/100	24	100	590	370	850	185	75
FXBW4-35/70	35	70	650	450	1225	230	95
FXBW4-35/100	35	100	690	450	1225	230	95
FPBW4-66/70	66	70	900	710	1980	410	185
FXBW4-66/100	66	100	940	710	1980	410	185
FPBW4-110/70	110	70	1240	1000	3315	550	230
FPBW4-110/100	110	100	1240	1000	3315	550	230
FPBW4-220/100	220	100	2240	1900	6300	1000	395
FPBW4-220/160	220	160	2240	1900	6300	1000	395
FPBW4-330/100	330	100	2950	2600	9075	1425	570
FPBW4-330/160	330	160	2950	2600	9075	1425	570
FXBW4-500/160	500	160	4080	3730	12750	2250	740

ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.

Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.

And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.

Our company has complete sale, logistic, after-sales service and

Consultation system. Link with honest and credit, quality is first, satisfying

The requirement of cutomers is its own responsibility so as to make enterprise, society, workers harmoniously and uniformly.

"Ruili Electric" set up nice future with you together.
