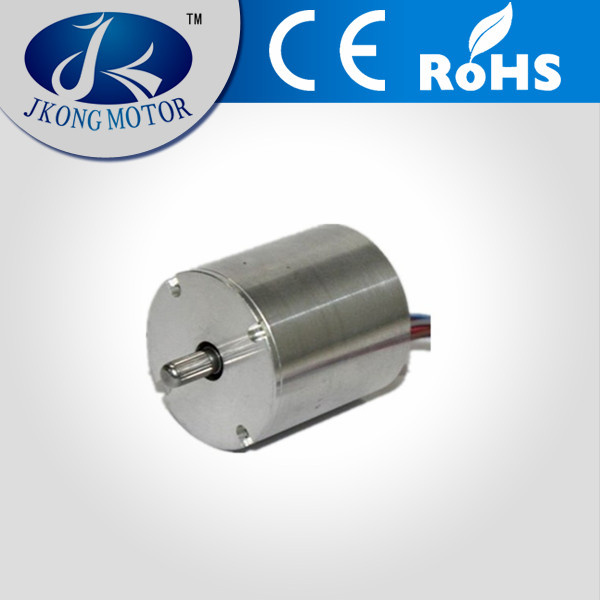

33mm Brushless DC Motor Used for CNC Machine

33mm Brushless DC Motor Used for CNC Machine
Price: US $ 10.00-18.00/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Prod Model: 33BLS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter: 33mm
Voltage: 24, 48V
Walt: 7, 40W
Model No.: Jk33bl38, Jk33bl80
Poles: 4
Phase: 3
Application: Power Tools
Operating Speed: Adjust Speed
Excitation Mode: Compound
Structure And Working Principle: Brushless
Type: Brushless
Certification: CE and RoHS

Product Description

33mm brushless dc motor, BLDC MOTOR
24v dc brushless motor, 33mm dc brushless motor


Electric Specifications:
GENERAL  SPECIFICATIONS ELECTRIC CONNECTION
Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max. radial force10N @ 10mm from the flange
Max. axial force2N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩMin., 500VDC

ModelJK33BL38JK33BL80
Number of poles44
Number of phase33
Rated voltage          VDC244824
Rated speed            RPM3000100007800
Continuous stall torque  mN.m264860
Rated torque           mN.m224050
Rated power            W74040


Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
