| Prod Model: |
PLD034/040/042-1SCF55A(S) |
| Output Power: |
34~42W |
| Dimming: |
0-10V Dimming |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
95X70X32 mm |
| Brand: |
Fsp-Powerland |
Product Description

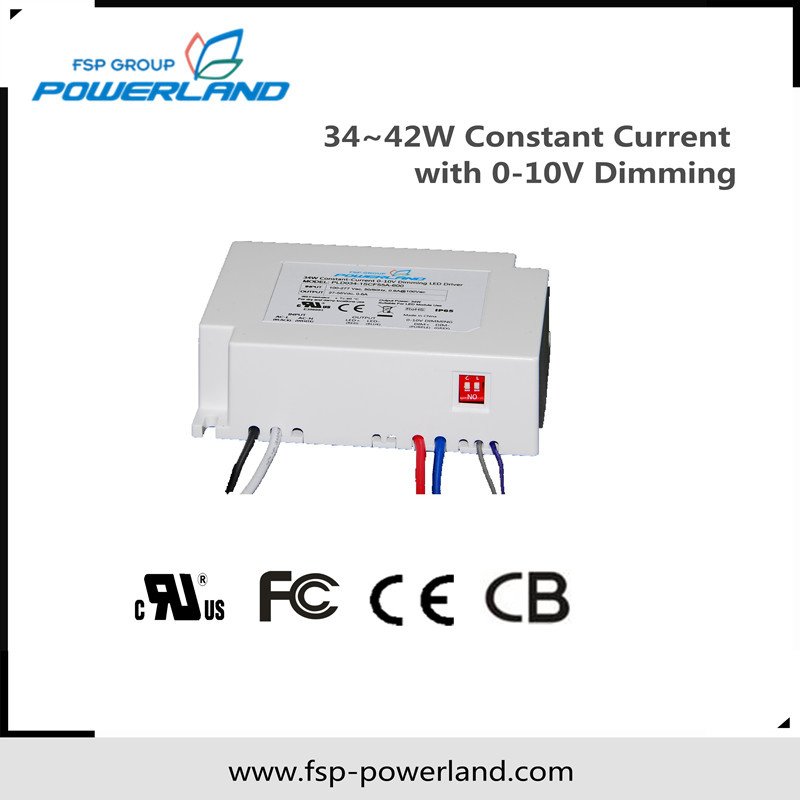

34~42W 27~55V Constant Current LED Driver with 0-10V Dimming
Powerland's PLD034/040/042-1SCF55A(S) series offers constant current drivers with wide-range dimmable output current and 90~305Vac universal input.
The output current of this series is up to 0.6/0.7/0.8/0.9A with DIP switch current setting (AS version), and designed for 0-10V dimming applications
Applications
Indoor LED lights
LED lights with flexible current settings
Downlights, spotlights, LED panels
Features
100,000 hours lifetime at 65oC Tcase
5 years warranty at 50oC Tcase
Constant current output
Compatible with 0-10V dimming
Output current settable with DIP switches (AS version)
Universal input voltage: 90~305Vac
Safety according to UL8750 &EN61347-2-13
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 34~42W | 27V
…
55V | 0.6A
…
0.9A | 89% | 90oC | 0.6A | 50W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD034-1SCF55-600
PLD034-1SCF55A-600 | PLD040-1SCF55-700
PLD040-1SCF55A-700 | PLD040-1SCF55-800
PLD040-1SCF55A-800 | PLD042-1SCF55-900
PLD042-1SCF55A-900 | PLD042-1SCF55AS-900 |
Output Voltage | 27~55V | 27~55V | 27~50V | 27~46V | 27~55/27~55/
27~50/27~46V |
Output Current | 600mA | 700mA | 800mA | 900mA | 600mA/700mA/
800mA/900mA |
Dimming
| A Version: 0-10V Dimming | 0-10V Dimming |
Current Setting DIP Switches
| NO | NO | NO | NO | Yes
|
Output Power | 34W | 40W | 40W | 42W | 42W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.5A | 0.6A | 0.6A | 0.6A | 0.6A |
Max. Input Power | 40W | 45W | 45W | 50W | 50W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 88% | 89% | 89% | 89% | 89% |
Max. Open Circuit Voltage | 70V | 70V | 70V | 70V | 70V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+60oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 95x70x32 mm (3.74x2.76x1.26 inch) |
Mounting Length | 85 mm (3.35 inch) |
Overall Length | 95 mm (3.74 inch) |
Weight | 0.27 kg (0.60 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics

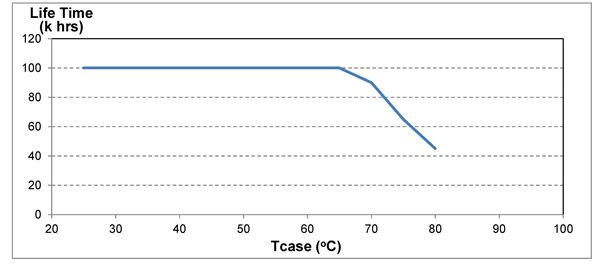

Life Time vs. Case Temperature
