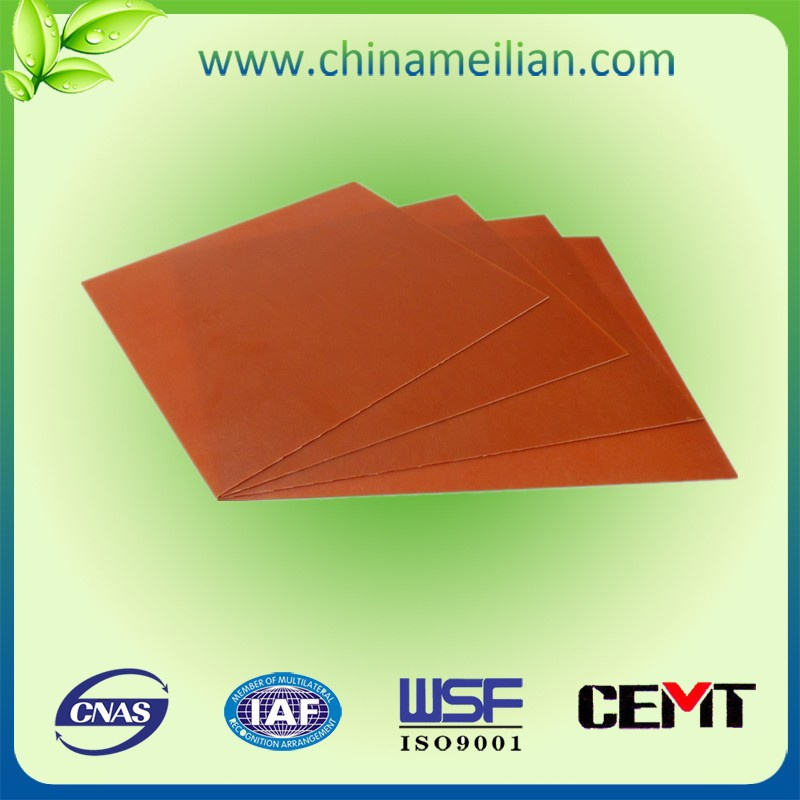

347 Electrical Insulation Laminated Sheet

Name: 347 Electrical Insulation Laminated Sheet
Brand: all-electronics-online.com
SKU: 743384045
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 6.3-7.6kg
Trade Terms:	FOB,CFR,CIF
Min Order:	300kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJ-347
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Density:	≥1.7g/cm3
Formation Methods:	High Temperature and High Pressure
Delivery:	7-10 Working Days
Size:	Customized
Samples:	Free Samples Are Welcome
Customizable:	Yes
MOQ:	1 Piece
Application:	Generator
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Maximum Voltage:	>100KV
Thermal Rating:	Grade F
Color:	Red
Brand:	Fiberglass Laminated Sheet

Product Description

Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection

Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

B asic Information
Product name	Magnetic Electrical Insulation Laminated Sheet
Item No.	MJ-347
Brand	MJ
Material	BMI resin and Alkali free fiberglass cloth
Grade	Grade F
Technical Specification
Density	≥1.7g/cm3
Appearance	Natural color Dark brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥200°C
Water absorption	≤1.0%
Flexural strength perpendicular to layer at room temperature at high temperature 180±2°C	≥400 MPa ≥200 MPa
Compressive strength, perpendicular to layer	≥350 Mpa
Impact strength parallel to layer (Charpy method)	≥37 KJ/m 2
Tensile strength	≥280 Mpa
Insulation resistance parallel to the layer At room temperature Immersing in water for 24h	≥1.0×10 4 MW ≥1.0×10 2 MW
Electric strength,perpendicular to the layer(at 90°C±2°C oil.) 0.5-1.0mm 1.1-2.0mm 2.1-3.0mm	≥14.5 MV/m ≥12.4 MV/m ≥11.6 MV/m
Dissipation factor Under 1MHz.	≤0.05
Voltage resistance parallel to layer(at 90°C±2°C oil for 1min)	≥40 KV
Combustibility	HB class

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
