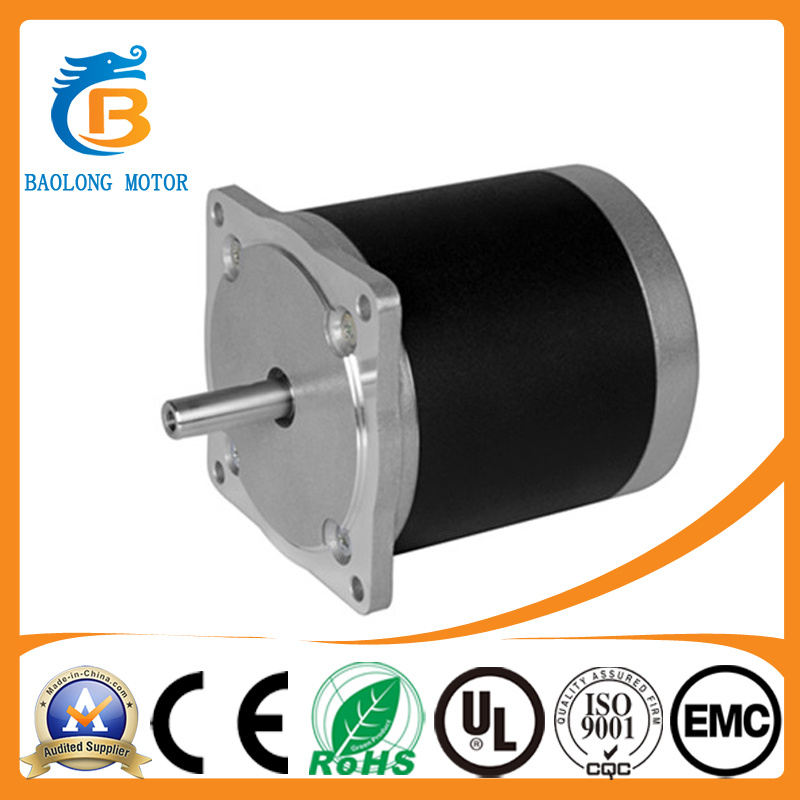

34HY1802 2-Phase 1.8deg Circular Stepper Motor for Textile Machine (86mm X 86mm)

Name: 34HY1802 2-Phase 1.8deg Circular Stepper Motor for Textile Machine (86mm X 86mm)
Brand: all-electronics-online.com
SKU: 747198465
Availability: InStock
Rating: 4.8 (38 reviews)

Price:	US $ 30-35/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	34HY1802 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Frame:	NEMA34
Stepper Angle:	1.8 Deg
Motor Length:	122 mm
Phase Current:	5.0 A
Holding Torque:	10.5 N.m
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Number Of Poles:	4/8
Operate Mode:	Drived by a Motor Drive
Brand:	Baolong
Certification:	CE

Product Description

Stepper motor is made up of rotor and stator winding magnet coil. A certain electric current goes through the stator winding timely, then produces a rotating magnetic field within the motor. Under the action of magnetic suction, the rotor will follow this creates a rotating magnetic field, the stator and rotor flux in each chain, produce rotary torque output.

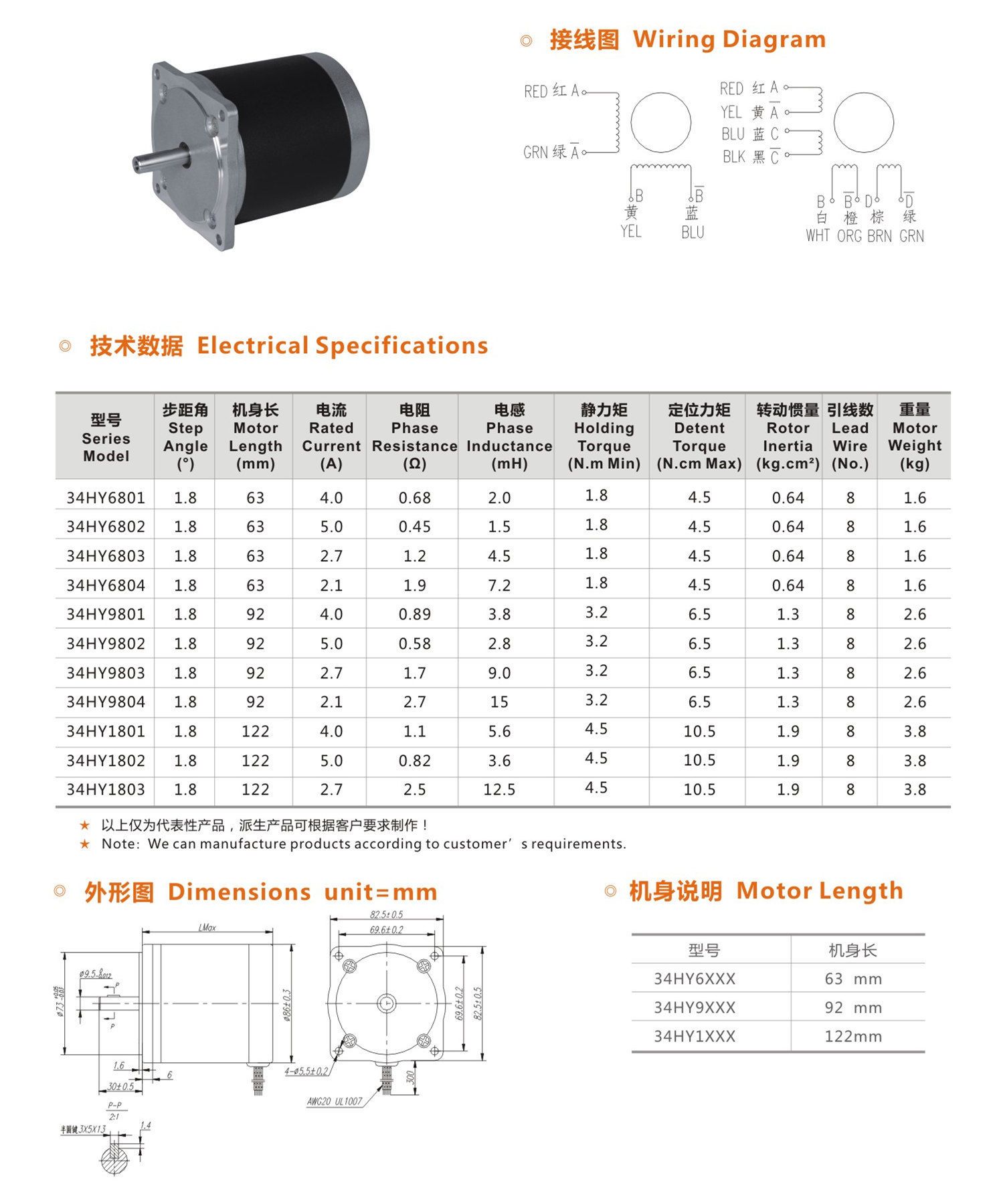

Step Angle (^.): 1.8^.
Motor Length (mm): 122 mm
Rated current (A): 5.0 A
Phase Resistance (ohm): 0.82 ohm
Phase Inductance (mH): 3.6 mH
Holding Torque (N. m min): 4.5 N. m
Detent Torque (N. m max): 10.5 N. m
Rotor Inertia (g. cm²): 1.9 g. cm²
Lead Wire No.: 8
Motor Weight (Kg): 3.8 Kg

Changzhou Baolong Motor Co., Ltd, established in 2004, is a high-tech enterprise, which is engaged in the development, production and selling kinds of micro motor and motion control systems.

Using high-quality materials, sophisticated manufacturing process and strict quality management our product line includes almost all kinds of high-quality motors, such as hybrid stepper motors, close-loop stepper motors, brushless DC motors, servo motors, etc. Our company is one of the leading manufacturers in domestic and international market, and our products are at the same level of international famous-brand ones. Our products are widely used in computer peripheral devices, communications, stage lighting, textiles, packaging, printing, medical equipment, sewing machines, and other industrial automation systems.

Our company is rich in technical experience, we use advanced production process and testing equipment, and obeys advanced quality management requirements in production, such as ISO9001: 2008, 6 Sigma. Besides, our company also has obtained the CE certificate, and all of our products are RoHS compliant.

With the spirit of "product innovation, high quality, excellent service", our company will continuously focus on micro motor industry, and provide more high-quality products and more professional service for our clients. We try our best to win the client' S trust by our high-quality products, excellent service and reasonable prices. We are becoming the leader of the micro motor industry.
