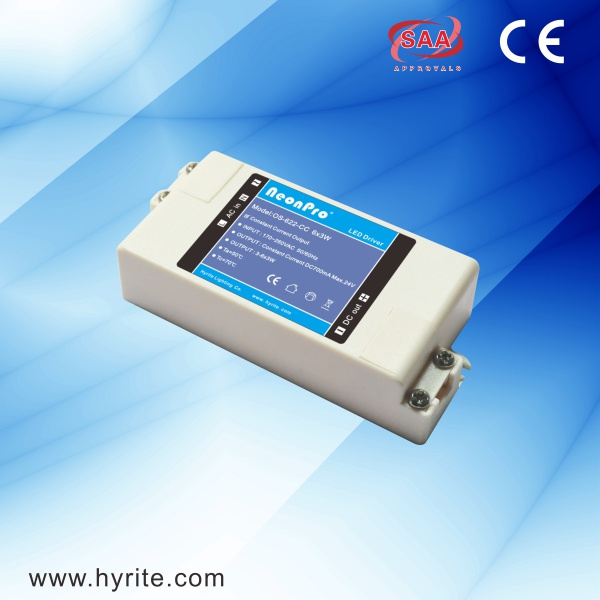

350mA 18W LED Driver for LED Downlight with Ce

Name: 350mA 18W LED Driver for LED Downlight with Ce
Brand: all-electronics-online.com
SKU: 728294435
Availability: InStock
Rating: 4.6 (23 reviews)

Price:	US $ 3.05-3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-622-CC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	18W
Output:	Constant Current or Constant Voltage
Input Voltage:	100-260V
IP Rating:	IP20 Non Waterproof
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	874320mm
Case:	Plastic
Certificates/Standards:	Ce
Operating Temperature:	-25~40 Degree
Usage:	Construction, Building
Circuit Structure:	Electronic Step-down Transformer
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

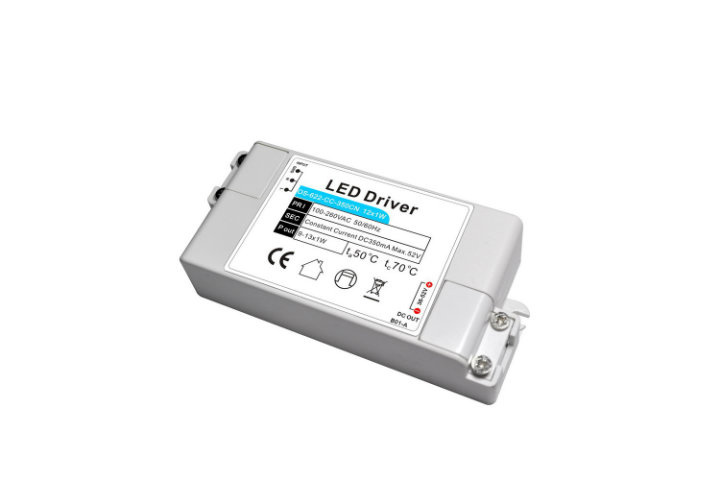

350mA Constant Current LED Driver for LED downlight 16w with CE

Brief Introduction:
*Constant voltage and constant current, plastic case, IP20
*Used for Spot Light, Down Light, Panel Light etc
*Protection: Short Circuit, Over Load

Technical Specification:

Model no.	OS-622-CC/CV
Input voltage	100-260 VAC 50/60 Hz
Max. power	18W max
Output type	Constant Current or Constant Voltage
Efficiency	85%
Output	350mA
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Non Waterproof
IP rating	IP20
Certificates/standards	CE
Connection input/output	Terminal
Dimensions(LWH)	874320mm
Packing information	100Pcs/ Carton, G.W 7KG

Product details

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
