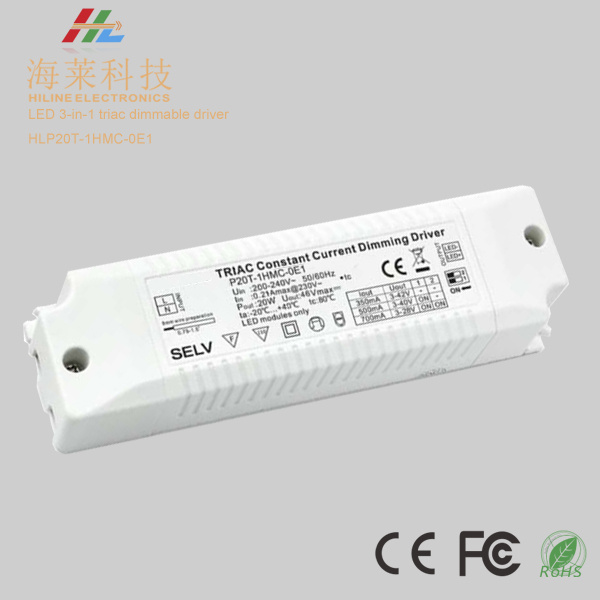

350mA/500mA/700mA Triac Dimmable Driver Constant Current 20W

Name: 350mA/500mA/700mA Triac Dimmable Driver Constant Current 20W
Brand: all-electronics-online.com
SKU: 817229535
Availability: InStock
Rating: 5 (35 reviews)

Price:	US $ 9.9-13.9/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLP20T-1HMC-0
Size:	1026630mm
Color:	White
Material:	Plastic
Output Type:	Multiple
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	FCC
Input Voltage:	AC90-250V

Product Description

350ma/500mA/700mA triac dimmable driver constant current led driver 20W HLP20T-1HMC-0E1
Features:
1. Single-channel constant current output, selected by Dip-switch
2. Support Leading edge (Triac) and Trailing edge (ELV) dimming
3. Dimming range from 40VAC to 240V AC.
4. Dimming effect smooth, no flicker z High efficiency up to 82%.
5. Short current protection
6. Suitable for indoor LED lighting application, such as down light, panel light, and so on

350ma/500mA/700mA triac dimmable driver constant current led driver 20W HLP20T-1HMC-0E1 Technical Parameter

Product Name		20W 350/500/700mA triac dimmable constant current led driver
Model		HLP20T-1HMC-0E1
Output	Current	350mA	500mA	700mA
	DC Voltage	3-42V	3-40V	3-28V
	Rated power	14.7W	20W	19.6W
	Current Accuracy	±5%
	R & N (Max)	300mVp-p
	Channels	1
Input	Voltage Range	200VAC - 240VAC
	Frequency Range	50/60Hz
	Efficiency(Typ)	82%
	Power Factor(Typ)	0.5
	AC Current	0.21A@230VAC
	Inrush Current	20A at 230VAC
Protection	Short Current	Colse output, recovers sutomatically after fault removed
Function	Dimming	Triac/ELV
Others	Dimension	150(L) 43(W) 29(H)mm
	G.W.	120g
	Relative Humidity	20~90% RH
	Working temp.	-20ºC ~ 40ºC
