350W 12V IP23 LED Switching Power Supply with Ce, CCC

Name: 350W 12V IP23 LED Switching Power Supply with Ce, CCC
Brand: all-electronics-online.com
SKU: 747928895
Availability: InStock
Rating: 4.6 (124 reviews)

Price:	US $ 15.75-17.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLDV-12E350C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Power:	350 W Max
Output Voltage:	12VDC
Output Current:	29 a Max
Installation:	Outdoor Rainproof
IP Rating:	IP 23
Cooling:	Built-in Electric Fan
Weight(Kg):	1.0500
Packing Information:	20 PCS/ Carton, G.W 22.5 Kg
Dimming:	No
Dimensions(LWH):	20714066 mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

350W 12V IP23 LED Switching Power Supply with CE, CCC

Product Feature of Switching Power Supply:
*170-250 VAC, 12VDC
*Constant Voltage type; No electric fan
*Applied for LED Signage/strips/bar lights/LED Modules etc.
*Protections: Short circuit/over load/over voltage/over temp
*100% full load burn-in test
*Low cost, High reliability
*2 years warranty
*CE approval.

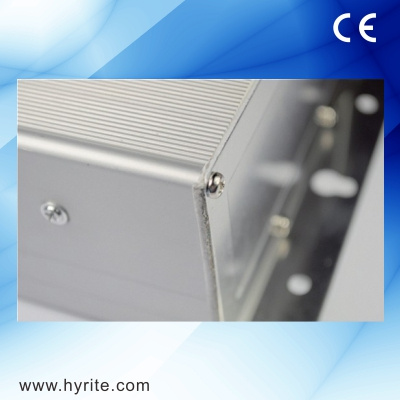

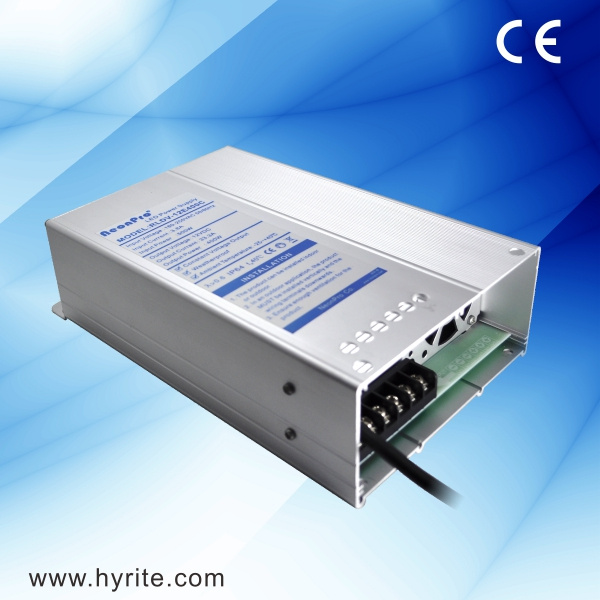

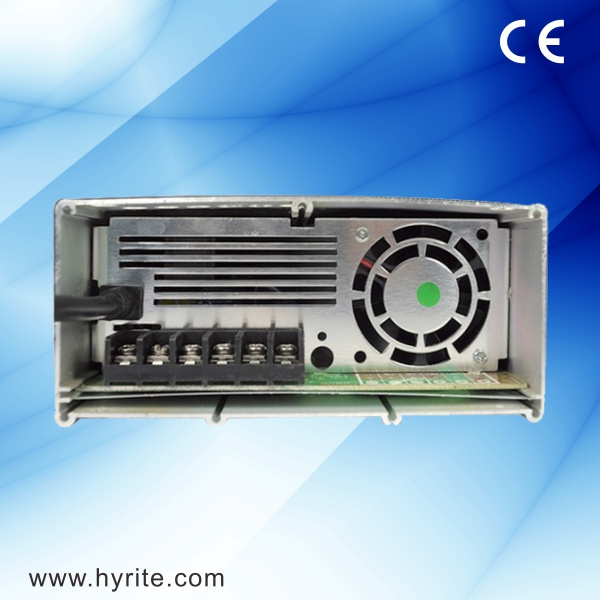

Products picture of Switching Power Supply:

Note of Switching Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping of Switching Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification of Switching Power Supply:

Model no.	RLDV-12E350C
Input voltage	180-250 VAC 50/60 Hz
Max. power	350 W max
Output type	Constant voltage
Efficiency	No
Output	No
Overload protection	Low
Over voltage protection	>83%
Withstand voltage	12VDC ± 5%
Operating temperature	29 A max
Installation	Outdoor rainproof
IP rating	IP 23
Certificates/standards	Built-in electric fan
Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)
Dimensions(LWH)	20714066 mm
Weight(kg)	1.05
Packing information	20 Pcs/ Carton, G.W 22.5 KG

Projects application of Switching Power Supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
