350W 12V Rainproof Switching Power Supply with 5 Years Warranty

Name: 350W 12V Rainproof Switching Power Supply with 5 Years Warranty
Brand: all-electronics-online.com
SKU: 728287065
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 23.3/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LV-12E350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	LV-12e350
Input Voltage:	180-250 VAC 50/60 Hz
Max. Power:	350W
Output-Type:	Constant Voltage
Output Voltage:	12VDC ± 5%
Output Current:	29 a Max
Installation:	Outdoor Rainproof
Weight(Kg):	1.1250
Cooling:	Built-in Electric Fan
Built-in Active Pfc:	No
Usage:	Vehicle
Output Type:	Quad
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

350W 12V Long Lifetime Constant Voltage Switching Power Supply with CE

1. Brief Introduction of Switching Power Supply:
-Designed for outdoor signage, decoration or lighting applications.
- Constant voltage output.
- Rainproof.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Output voltage adjustable.
-Long Lifetime

2. Technical Specfication of Switching Power Supply:

Model no.	LV-12E350
Input voltage	180-250 VAC 50/60 Hz
Max. power	350 max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	83 %
Output voltage	12VDC ± 5%
Output current	29 A max
Operating temperature	-25~40
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan
Connection input/output	Input:0.75mm²x3 (30cm) / Output:terminal(six)

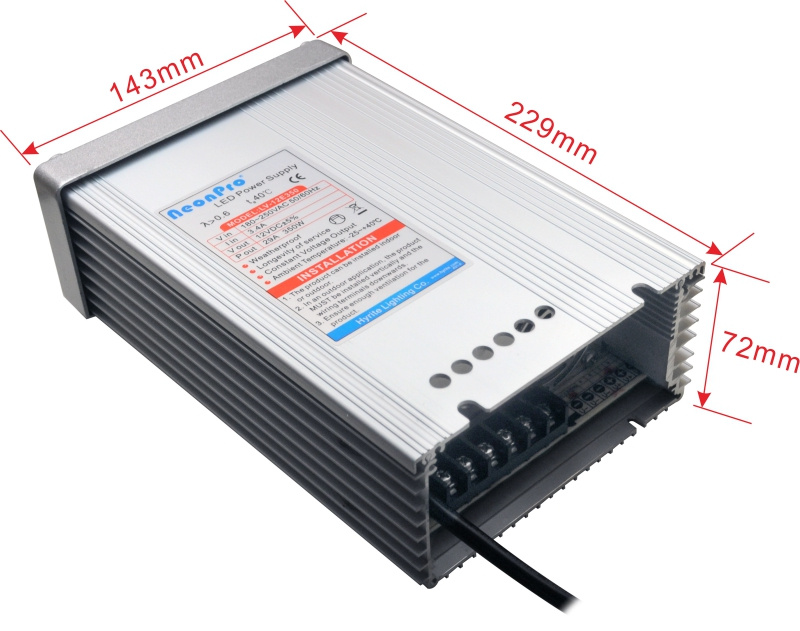

Dimensions(LWH)	20714066 mm
Weight(kg)	1.1250
Packing information	20 Pcs/ Carton, G.W 22.5 KG

3. Application of LED driver
LED module & LED strip
LED light box and channel letter
LED neon light
LED bar
Other signage lighting.

4. Details of switching power supply:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
