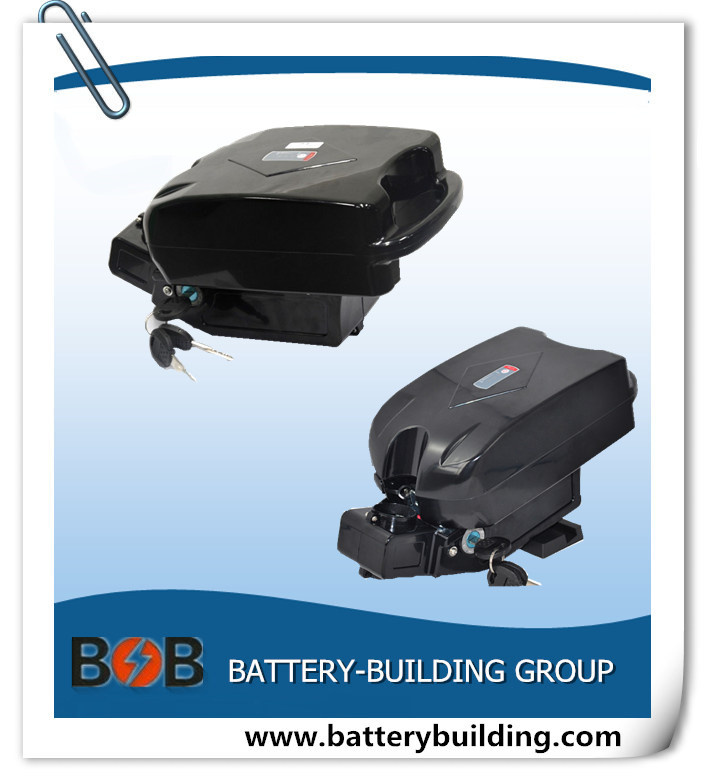

350W 24V 16ah Lithium Battery Pack

Prod Model:	BB-EB2416F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Structure:	Icr18650 7s8p
Continuous Discharge Current:	15A
Brand:	Bb
Motor Available:	350W
Certificate:	CE, RoHS
Warranty:	2 Years
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	24V
Usage:	E-Bike
Electrolyte:	Li-ion

Product Description

350W 24v 16ah lithium battery pack

Features:
1. Model: 24V16Ah
2. Voltage:24V
3. Capacity:16Ah
4. Dimention:168.9×134.5×74mm
5. discharging current:15A
6. Maximum discharging current:40A
7. Impedance:≤15
8. Discharge cutoff voltage:18V
9. Charge voltage:29.4V
10. Standard charge current:2A
11. Charging and charger:CC/CV with professional charger
12. Weight:3.9kg
13. Working temperature:Charge: 0~45°C    Discharge:-20~55°C
14. Normal temperature capacity:16Ah


NO	Item	General Parameter				Remark
1	Model	BB-EB2416F
2	Standard capacity(0.5C)	16Ah
3	Rated voltage	36V
4	Max. charge voltage	42.0V				Single Ave. charge Voltage: 4.2V
5	Over charge protection	Over charge detection voltage		4.40±0.025V
		Over charge release voltage		4.3±0.025V
6	Standard charge current	2A				0.2C
7	Charging time	About 300 minutes				X C
8	Discharge cut-off voltage	27.5V				Single Ave. Discharge Voltage: 2.75V
9	Over discharge Protection	Over discharge detection voltage			2.5±0.05V
		Over discharge release voltage			2.75±0.05V
10	Max. continuous discharge current	15A(adjustable)				1.5C
11	Peak discharge current	30A(adjustable)				4.5C
12	Short circuit protection	Detetion delay time			XXμs	Release condition	Cut-off load
12	Battery dimension	168.9×134.5×74mmmm
13	Total weight(Approx.)	About 3.9kg
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC

Application:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems, such as Torpedo Trainer

Advantages:
·Fast charging
·Large overcharge tolerance and safe performance
·Self balance
·Simplifying battery management system (BMS) and battery charger
·Longer cycle life; It extends its cycle life up to 800 cycles
·High temperature performance


Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours
