350W 24V 180rpm Dclake Mower Motor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
ZY1016LZ-350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
12V, 24V, 36V |
| Rated Power: |
180W, 250W, 350W |
| Motor Material: |
Alloy Steel |
| Gearbox Material: |
Aluminum |
| No Lad Speed: |
2300rpm |
| Motor Diameter: |
101.50mm |
| Motor Length: |
147.5mm |
| Current: |
8.3A, 13.5A, 18.7A, 20A |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Type: |
Zy |
| Brand: |
Lectstyle |
Product Description

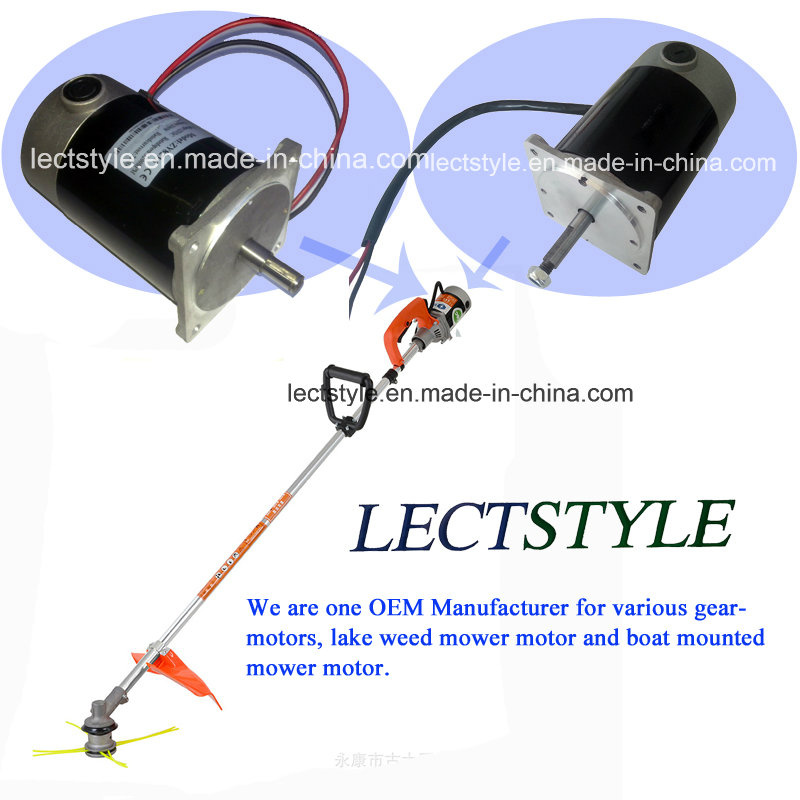

We are one OEM Manufacturer for various gear-motors, lake weed mower motor and boat mounted mower motor.
Our Aquatic Lake Mower Motors Features:
1.Special low power consumption, efficient, 12V/24V DC, Suitable for prolonged 2.general purpose cutting.
3. Robust yet lightweight design.
4. Rust resistant Aluminium and Stainless steel construction, giving long life.
5. Power Source, (not included) a 12v marine / leisure battery allows for 10 hours or more cutting time per charge.

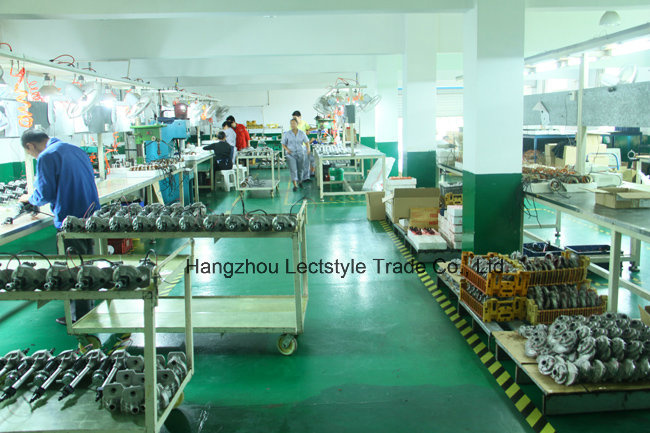

Our production workshop:
Our assembled workshop:
Our inspection workshop:
Our products:
Our business range is supplied to these products as below:
1.Planetary reducer, turgine dc gear motor,Marine Electric Motor, DC Motor, and transmission parts etc, these are fabricated from our motor factory.
2. Roller chain, conveyor chain, flat top chain, silent chain, drag chain etc, these are supplied from our chain drive factory.
HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets. | ZY1016LZ | No load | Loading | Drive ratio |
| Model | Current(A) | Speed (rpm) | Torque (N.m) | Speed (rpm) | Power (W) | Current(A) |
| 200W12V | 20 | 2500 | 0.67 | 2853 | 200 | 23.96 | i=16.5:1 |
| 150W24V | 1.5 | 2300 | 0.77 | 1850 | 150 | 8.3 | i=16.5:1 |
| 250W24V | 1.5 | 3000 | 0.95 | 2500 | 250 | 13.5 | i=16.5:1 |
| 350W24V | 2 | 3600 | 1.11 | 3000 | 350 | 18.7 | i=16.5:1 |
| 350W36V | 2 | 3600 | 1.11 | 3000 | 350 | 12.5 | i=16.5:1 |
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers.
Therefore, hope to get your feedback soon.
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
