| Prod Model: |
LRS-350-12/24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
3 Years |
| Weight: |
0.8kgs |
| DC Output: |
DC12V, DC24V, DC5V, DC36V |
| AC Input: |
90-265V |
| Wattage: |
350W |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Brand: |
Meanwell |
Product Description

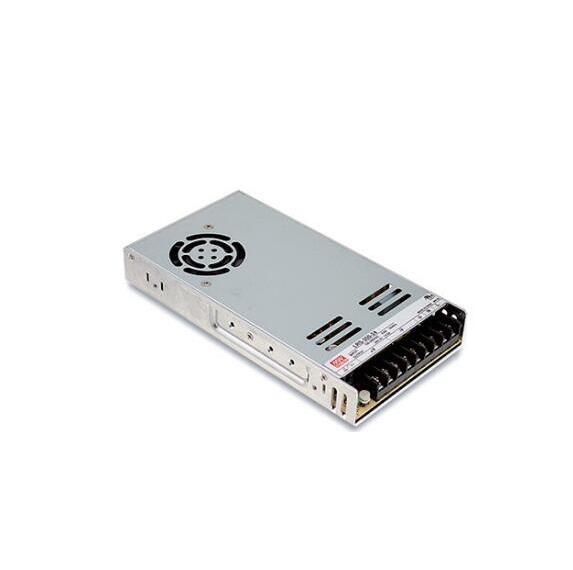

350W Single Output Switching Power SupplyFeatures
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage /Over temperature
Forced air cooling by built-in DC fan
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.75W
100% full load burn-in test
High operating temperature up to 70°C
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
3 years warrantyApplicationsIndustrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatusDescriptionLRS-350 series is a 350W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V,4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 89%, with the built-in long life fan LRS-350 can work under -25~
+70 with full load. Delivering an extremely low no load power consumption (less than 0.75W), it allows
the end system to easily meet the worldwide energy requirement. LRS-350 has the complete protection
functions and 5G anti-vibration capability; it is complied with the international safety regulations such as
UL60950-1. LRS-350 series serves as a high price-to-performance power supply solution for various
industrial applications.
| Part No. | LRS-350-5/12/24/36 |
| wattage | 350W |
| voltage | 5V, 12V, 24V.36V |
| warranty | 3 years |
