350W Stable Working Switching Power Supply with Ce

Name: 350W Stable Working Switching Power Supply with Ce
Brand: all-electronics-online.com
SKU: 748247005
Availability: InStock
Rating: 4.3 (40 reviews)

Price:	US $ 20.12/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E350B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	24V
Output Current:	14.58A
Power Factor:	Low
Efficiency:	75%
Installation:	Indoor
IP Rating:	IP 20
Connection Input/Output:	Terminal
Output-Type:	Constant Voltage
Model No.:	Eldv-12e350b
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

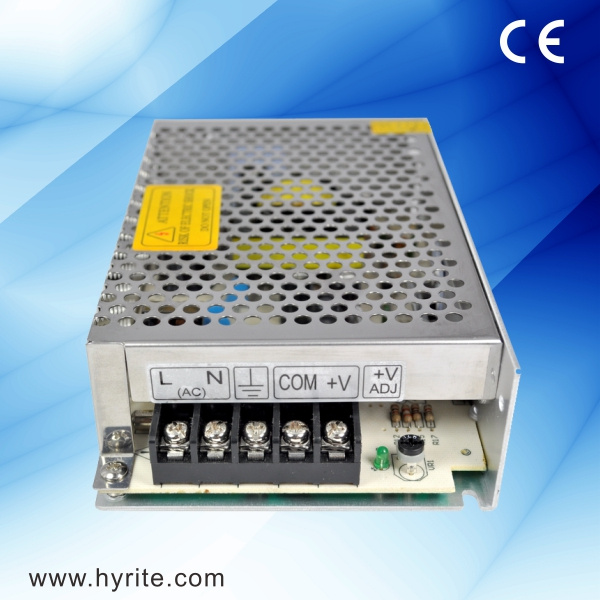

24V 350W PWM stable quality Switching Power Supply

Brief Introduction of the switching power supply:
-Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
-Constant voltage output
-Mesh case (or electric fan) for ventilation
-100% burn-in test

Technical Specification of the switching power supply:

Model no.	ELDV-12E350B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	350 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	29A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Built-in electric fan
Connection input/output	Terminal
Dimensions(LWH)	21511550 mm
Weight(kg)	0.8700
Packing information	30 Pcs/ Carton, G.W 26 KG
