| Prod Model: |
BK-ZW3 |
| Laser Source: |
Inngu |
| Min Line Width: |
0.005mm |
| Repeat Accuracy: |
0.003mm |
| Marking Range: |
100*100mm(Standard) |
| Min Character: |
0.15mm |
| Warranty: |
2 Years |
| OEM/ODM: |
Accepted |
| Operating System: |
Windows 7 |
| Color: |
Blue, White or Custom |
| Support Format: |
Plt, Ai, BMP, Psd, Dxf, etc. |
Product Description

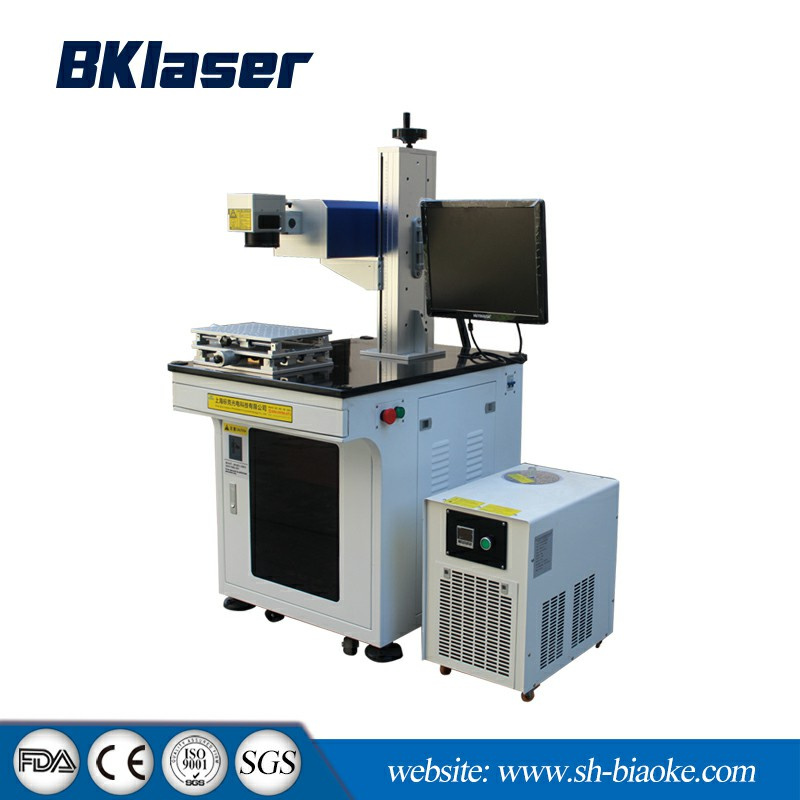

355nm 3W/5W/10W UV laser marking machine for button
Characteristics:1) High beam quality, and the spot is very small, can achieve ultra-fine marking;
2) Almost perfect marking quality: 355nm output wavelength to reduce the thermal impact on the
workpiece; galvanometer high-precision marking head, marking the effect of fine and repeatable;
high-precision fine spot to ensure the perfect marking results; marking the process of non-contact,
marking effect is permanent;
3) UV laser marking machine for a large range;
4) Heat affected area is very small, there will be no thermal effect, the material is not deformed not
charred;
5) Marked fast, high efficiency;
6) Machine performance is stable, small size, low power consumption;
7) More suitable for the heat radiation reaction of large materials processing; with the production
line with, automatic loading and unloading, automatic access to materials; suitable for the vast
majority of metal and non-metallic materials on the marking;8) Flexible and convenient operating system: the operation process is humanized, Equipment
operation is stable;9) Dedicated control software is compatible with AutoCAD, CorelDRAW, Photoshop and other
software output;10) Can support the PLT, PCX, DXF, BMP, JPG and other file formats, you can directly use the TTF
font; CCD automatically identify and position the track (Figure), can be used to automatically
identify the track, graphics, bar code, two-dimensional code, serial number and other automatic
scheduling and modification.Technical Parameters| Model | BK-ZW3W/5W/8W |
| Power | 3W/5W/8W |
| Laser wavelength | 355nm |
| Beam quality | M2 <1.1 |
| Laser output power | 0~100% (continuous and adjustable) |
| Laser output frequency | 5KHz~80KHz (continuous and adjustable) |
| Power stability(8h) | <±1%rms |
| Pulse width | 10-50ns |
| Spot diameter | <0.01mm |
| Tag type | Dynamic tag / static tag |
| Marking speed | 800 standard characters per second |
| Min line width | ≤0.005mm |
| Min character | 0.15mm |
| Repeat accuracy | ±0.003mm |
| Production pass rate | 99.9% |
| Operate system | WindowsXP |
| Cooling method | Air-cooled |
| Operating ambient temperature | 15ºC~35ºC |
| Power supply | 220V/single-phase/50Hz/<800W |
| Laser module life | 20000 hours |

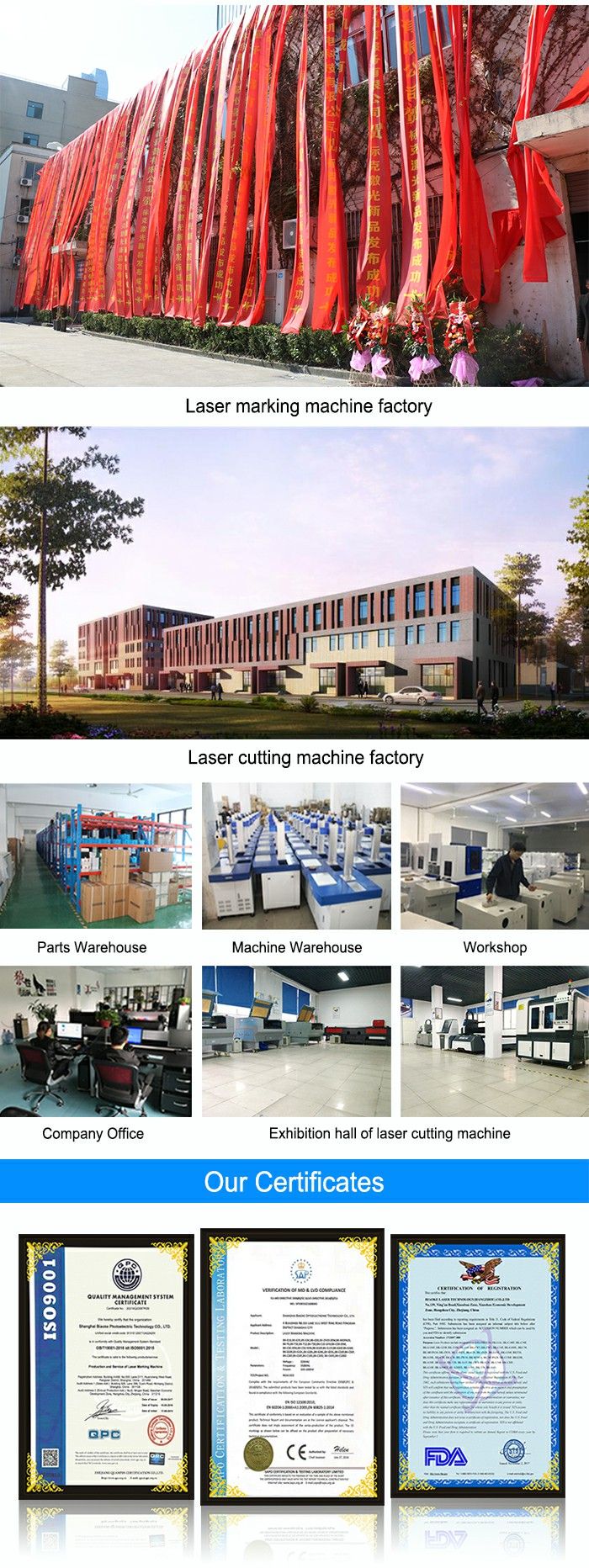

Biaoke Laser Technology(Hangzhou) Co., Ltd. is a national high-tech enterpriseintergrating
with R&D, manufacturing and selling. Our company has 12-year experience in lasermarking &
cutting machine. The main products: fiber laser marking machine, CO2 laser markingmachine, UV
laser marking machine, fiber laser cutting machine, co2 laser cutting machine, etc. We have the
CE, ISO, FDA, SGS Cerficate. So our machine used around the golbe in a myriad of markets, such
as Germany, Korea, France, Italy, India, Brazil, Arab, Egypt, etc.
Our Service
Pre-sales services
a. Inquiring and consulting support;
b. Sample testing support;
c. Visiting our factory.
After-sales services
a. 2 year guarantee period for product quality;
b. Free training for machines installation and operation;
c. Lifelong maintenance and spare parts supply.
Q: I know nothing about the laser marking machine, what kind of machine I should choose?
A: Just tell us what you want to do using this machine. And sending us a sample picture is
better. Then we will send you a perfect solutions and suggestions.
Q: Are you a factory or trading company?
We are a factory, we also have a trading company and another factory.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation,
we will send detail training video, user's manual along with the machine. 95% customers can
learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by
yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the
machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine
is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping
agent have full experienced in safe transportation. We have exported to 180 countries worldwide.
So please don't worry, you will receive the parcel in good condition.
