| Prod Model: |
SC35M |
| Current: |
35A |
| Volt: |
50V-1200V |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Compound Semiconductor |
| Type: |
N-type Semiconductor |
| Package: |
Bulk |
| Model: |
Sc35A-Sc35m |
| Batch Number: |
2016+ |
| Brand: |
Sy |
Product Description
samples are free!!!

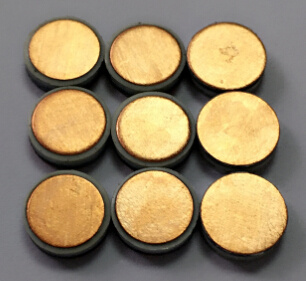

35A,50V-1200V-Soza Cell Diode-SC35A-SC35M
we are a professional manufacturer in automotive diode and press-fit diode as following:
we can supply 25A, 35A, 50A, volt is from 50V to 1000V. avalanche volt: 20-24V, 38-42V.
Soza Cell.
25A: SC25A(50V),SC25B(100V),SC25D(200V),SC25G(400V),SC25J(600V),SC25K(800V),SC25M(1000V).
35A: SC35A(50V),SC35B(100V),SC35D(200V),SC35G(400V),SC35J(600V),SC35K(800V),SC35M(1000V).
50A: SC50A(50V),SC50B(100V),SC50D(200V),SC50G(400V),SC50J(600V),SC50K(800V),SC50M(1000V).
Products introduction
Features
High current capability.
Low forward voltage drop.
Low leakage current.
High surge current capablity.
Mechanical Data
Small copper :0.258(6.55) * 0.0394(1.0)Thick.
Large copper:0.284(7.22) * 0.0295(0.75)Thick.
Outline information:0.284(7.22) * 0.0866(2.2)Thick
| Series | Part No | Max Rating and Electrical Characteristics | Picture |
| VRWM | IF | IFSM (A)8.3ms single half | VF | IRRM(μA) | Operation
temperature |
| (V) | (A) | sine-wave | (V) | @Ta=25ºC |
| SOZA CELL | SC25A | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| SC25B | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25D | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25G | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25J | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25K | 800 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC25M | 1000 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| SC35A | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35B | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35D | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35G | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35J | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35K | 800 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC35M | 1000 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| SC50A | 50 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50B | 100 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50D | 200 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50G | 400 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50J | 600 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50K | 800 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| SC50M | 1000 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| BUTTON | AR2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR258 | 800 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR2510 | 1000 | 25 | 300 | 1 | 5 | -55ºC~+150ºC |
| AR3505 | 50 | 25 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR351 | 100 | 25 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR358 | 800 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR3510 | 1000 | 35 | 400 | 1 | 5 | -55ºC~+150ºC |
| AR5005 | 50 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR501 | 100 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR502 | 200 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR504 | 400 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR506 | 600 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR508 | 800 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
| AR5010 | 1000 | 50 | 500 | 1 | 5 | -55ºC~+150ºC |
LEAD
BUTTON | ARL2505 | 50 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL251 | 100 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL252 | 200 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL254 | 400 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL256 | 600 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL258 | 800 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL2510 | 1000 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL2512 | 1200 | 25 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL3505 | 50 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL351 | 100 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL352 | 200 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL354 | 400 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL356 | 600 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL358 | 800 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL3510 | 1000 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| ARL3512 | 1200 | 35 | 300 | 1 | 5 | -55ºC ~ +150ºC |
| Series | Part No | Max Rating and Electrical Characteristics | Picture |
| VRWM | IF | IFSM (A)8.3ms single half | VF | IRRM(μA) | Operation
temperature |
| (V) | (A) | sine-wave | (V) | @Ta=25ºC |
| BLOCK | BD3005 | 50 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD301 | 100 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD302 | 200 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD304 | 400 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD306 | 600 | 30 | 300 | 1.1 | 5 | -55ºC~+150ºC | |
| BD3505 | 50 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD351 | 100 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD352 | 200 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD354 | 400 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD356 | 600 | 35 | 350 | 1.1 | 5 | -55ºC~+150ºC | |
| BD5005 | 50 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD501 | 100 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD502 | 200 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD504 | 400 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| BD506 | 600 | 50 | 500 | 1.1 | 5 | -55ºC~+150ºC | |
| TIN-CAN | TC2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC253 | 300 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC255 | 500 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| TC3505 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC351 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC353 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC355 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| TC356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150 | |
MOTOR PRESS
FIT DIODE | MP2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP253 | 300 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP255 | 500 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| MP3505 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP351 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP353 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP355 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP5005 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP501 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP502 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP503 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP504 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP505 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| MP506 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
BOSCH
PRESS-FIT
DIODE | BP2505 | 50 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP251 | 100 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP252 | 200 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP253 | 300 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP254 | 400 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP255 | 500 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP256 | 600 | 25 | 300 | 1 | 5 | -55ºC~+150ºC | |
| BP3505 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP351 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP352 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP353 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP354 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP355 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP356 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP5005 | 50 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP501 | 100 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP502 | 200 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP503 | 300 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP504 | 400 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP505 | 500 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
| BP506 | 600 | 35 | 400 | 1 | 5 | -55ºC~+150ºC | |
