35A/0.333V Split Core Current Transformer

Name: 35A/0.333V Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 793537505
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 2-8.3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	35A/0.333V
Color:	Black
Accuracy:	Within 1%
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

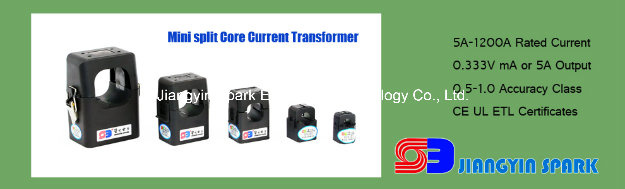

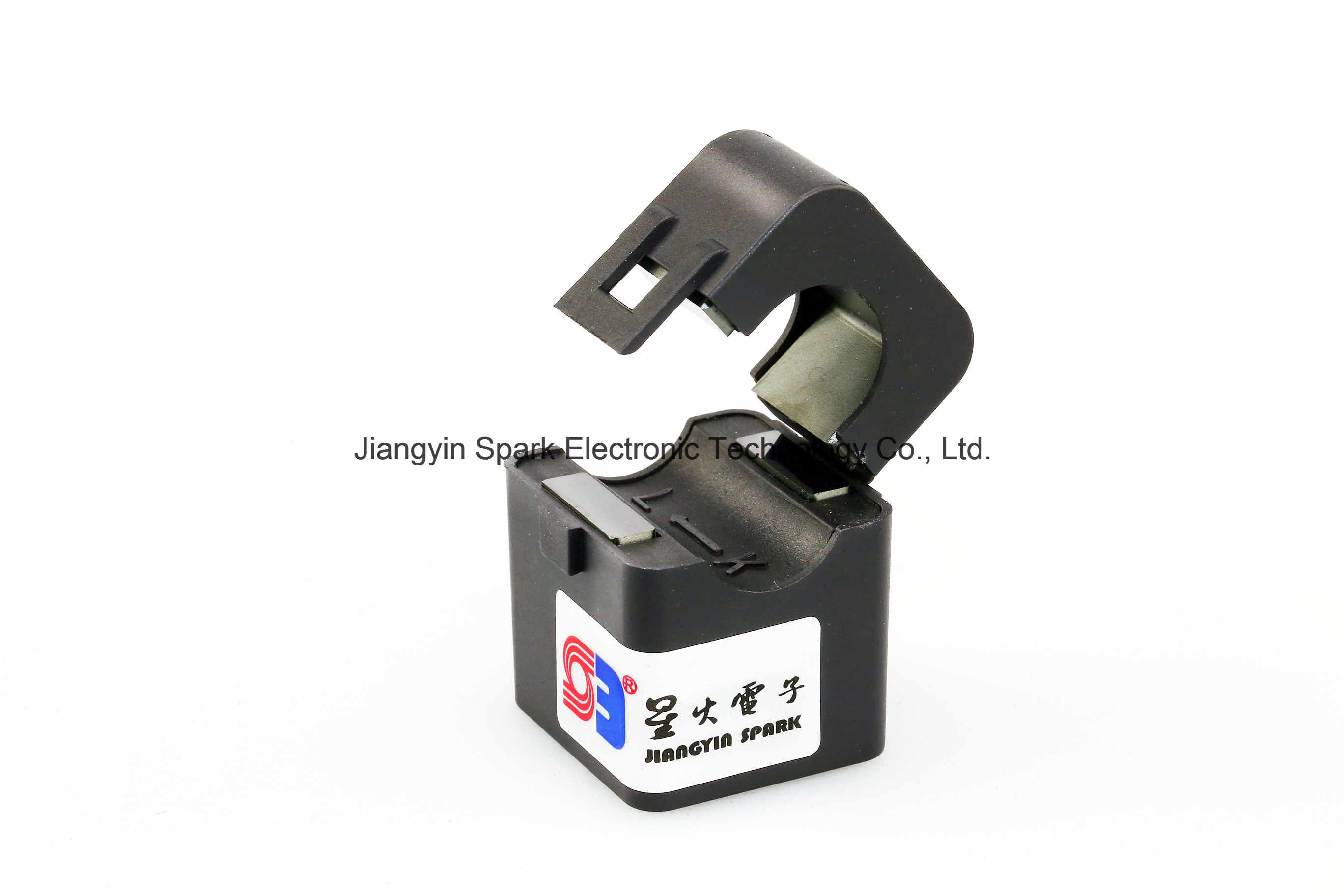

XH-SCT-T10 Split Core Current Transformer

SPECIFICATIONS :
1,Rated Voltage:0.66KV
2,Insulation Voltage:2KV
3,Rated Frequency:50HZ or 60HZ
4,Operating Temperature:-15ºCto 60ºC
5,Flame resistance:UL94-V0

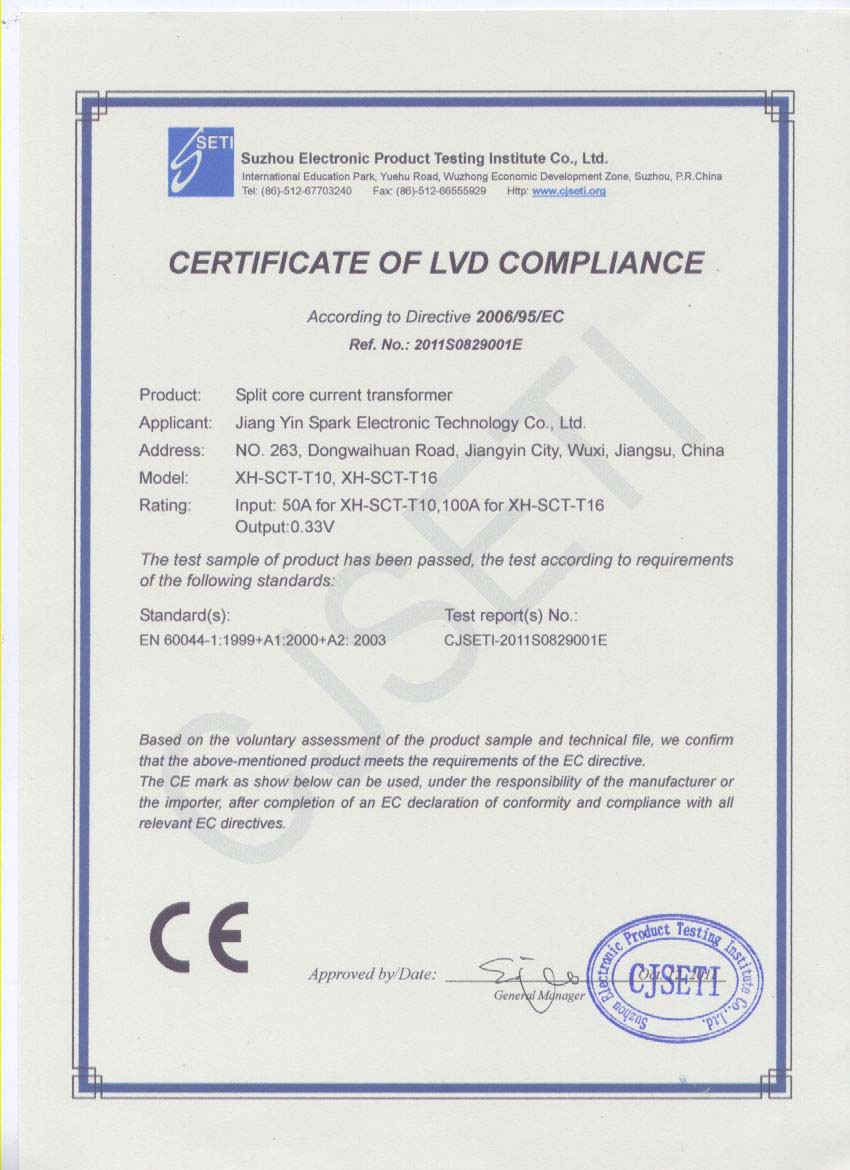

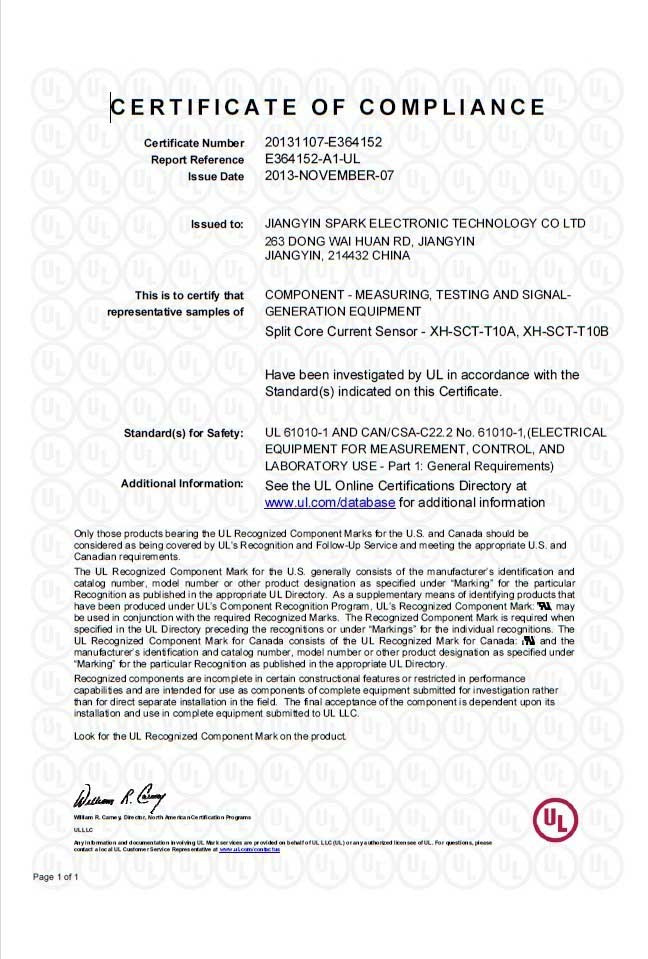

6,Certificates:CE,UL

FEATURES:
1,Small cost
2,Split core design ,Easier installation
3 Build diode ,no high voltage danager
4,Good linearity at very low current

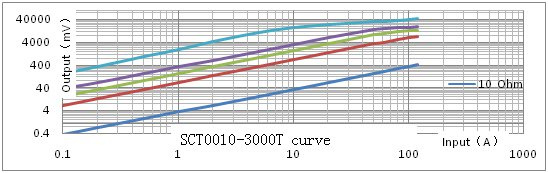

PARAMETERS

Model	Input(A)	Max currnet(A)	Output	accuracy
35A/0.333V split core ct	35A	5-80A	0.333V/0-5V/4-20mA/0-10V	0.3-1.0%

Why choice split core current transformer from Jiangyin spark?
CE UL ETL, have good reputation in the market.
Our 60A/0.333V split core ct's accuracy can catch 0.3%, and it's price is the lowest on the market.
We still have very low current split core ct, 5A/0.333V, accuracy can reach within 0.5%.
Since 1995, have rich experience, 4-20mA/0.333V/0-10V/0-5V output we all have.

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
