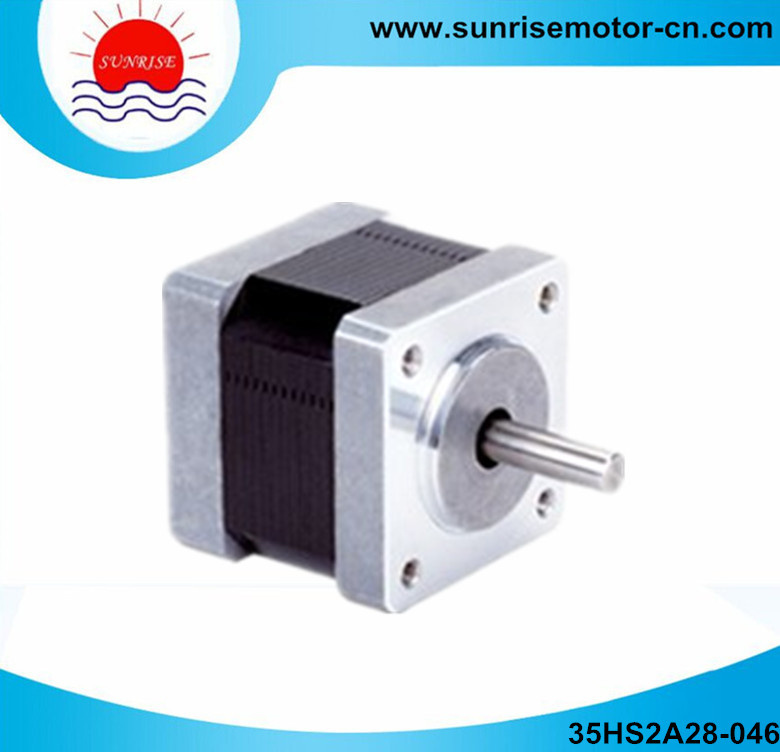

35hs NEMA14 0.4A 9n. Cm 2-Phase Stepper Motor

Name: 35hs NEMA14 0.4A 9n. Cm 2-Phase Stepper Motor
Brand: all-electronics-online.com
SKU: 726069635
Availability: InStock
Rating: 4.8 (61 reviews)

Price:	US $ 6.45-6.77/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HS2A28-046
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	35hs2a28-046
Holding Torque:	9n.Cm
Current:	0.4A
Resistance:	90ohms
Inductace:	11mh
Length:	28mm
Wire:	6
Weight:	120g
Type:	Magnetic-Electric
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Certification:	SGS

Product Description

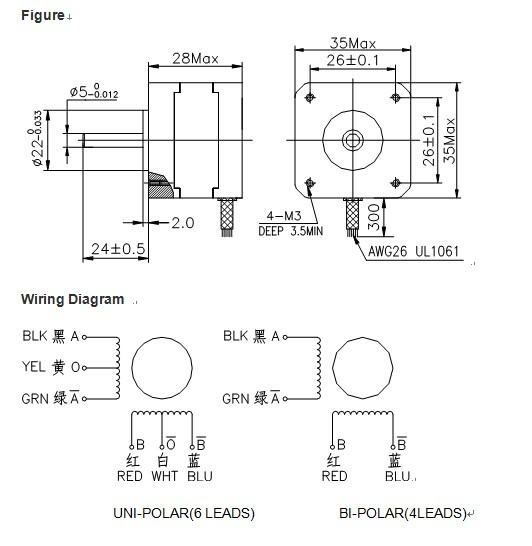

35HS series 2 phase stepping motor

NEMA14 1.8 Degree

Model: 35HS2A28-046
Holding torque: 9N. CM
Current: 0.4A
Resistance: 30ohms,
Inductance: 11mH
Length: 28mm,
Wire: 6
Weight: 120g,

Remark:
We can produce motor according to customer's requirements.

Model	Holding Torque (N@cm±10%)	Current/Phase (A)	Resistance/Phase (ohms±10%)	Inductance/Phase (mH±20%)	Detent Torque (N@cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
35HS2A28-054	12	0.46	20	14	0.8	11	28	120
35HS2A28-084	12	0.8	5.0	5.0	0.8	11	28	120
35HS2A28-046	9	0.4	30	11	0.8	11	28	120
35HS2A34-044	18	0.42	25	32	1.0	13	34	160
35HS2A34-084	18	0.8	6.5	9.8	1.0	13	34	160
35HS2A34-046	12	0.4	30	22	1.0	13	34	160

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
