| Prod Model: |
SC(B)10 |
| Coil Structure: |
Toroidal |
| Coil Number: |
Autotransformer |
| Material: |
Epoxy Resinv |
| Rated Capacity: |
30-2500kVA |
| Rated Voltage: |
10kv-25kv |
| Frequency: |
50Hz |
| Standard: |
IEC60076 |
| Certificate: |
ISO9001 |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description
Structural Characteristics:
| Cast-foil Coil: Adopting the entire section of copper foil, together with the F-class turn insulation, low voltage winding is wound by the special low-voltage foil winding machine. The foil coil resolves such understanding problems as large short-circuit stress, uneven ampere turn, poor heat dissipation, existing the winding spiral angle as well as unsteady manual welding quality due to low voltage and large current coil winding products. At the same time, the winding end in our company is treated with resin potting, solidification to make shape, moisture-proof and anti-fouling, the lead copper platoon is automatically welded by argon arc welding. |
Temperature Control Device: the transformer adopts BWDK series of signal thermometer. The temperature components, are embedded in the upper half of the low-voltage coil, can automatically detect and dynamically display the work humidity of phase coils and also have the functions of over-temperature alarm and trip.

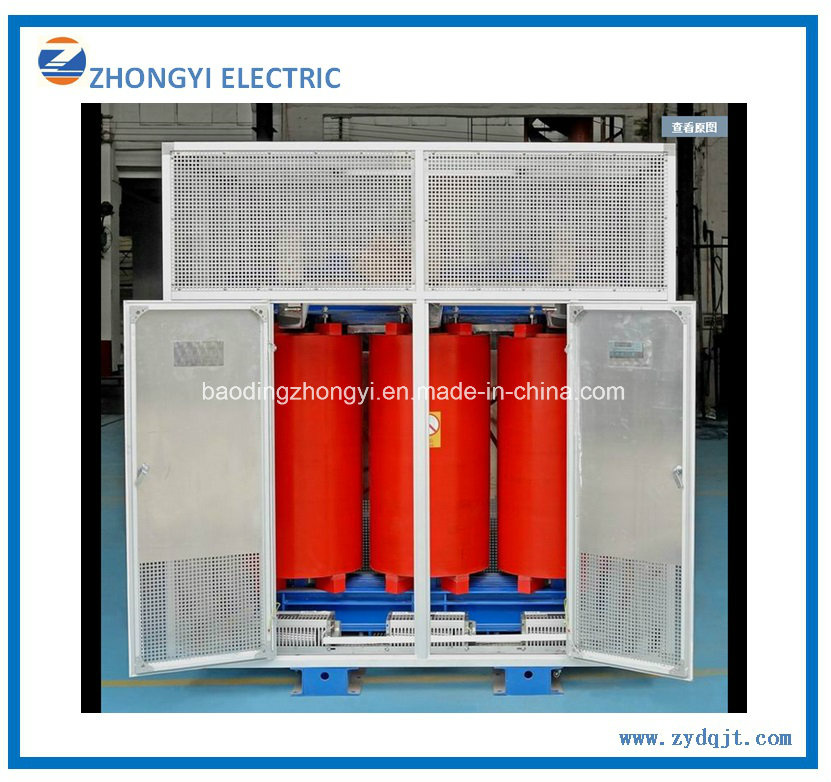

Technical Parameter of SC(B)10 series 10kV Resin-insulated Dry Type Power Transformer
Product Model No. | Connection Group Symbol | Loss W | Impedance Voltage(%) | No-load Current(%) | Overall Dimensions(without enclosure)mm | Weight(Kg) |
| No-load | Load | L | W | H | L1 | L2 | d | f |
| SC10-30/10 |
Y,yn0
D,yn11 | 195 | 705 |
4 | 2.6 | 770 | 550 | 800 | 210 | 210 | 350 | 350 | 330 |
| SC10-50/10 | 270 | 995 | 2.2 | 820 | 600 | 830 | 220 | 220 | 450 | 450 | 380 |
| SC10-63/10 | 330 | 1210 | 2.2 | 850 | 610 | 850 | 220 | 220 | 450 | 450 | 440 |
| SC10-80/10 | 370 | 1380 | 2.2 | 890 | 610 | 860 | 230 | 230 | 550 | 550 | 510 |
| SC10-100/10 | 400 | 1570 | 2.0 | 900 | 610 | 930 | 240 | 240 | 550 | 550 | 590 |
| SC10-125/10 | 470 | 1850 | 1.8 | 900 | 720 | 980 | 300 | 210 | 550 | 660 | 650 |
| SC10-160/10 | 545 | 2130 | 1.8 | 980 | 720 | 980 | 310 | 220 | 550 | 660 | 780 |
| SC10-200/10 | 625 | 2530 | 1.6 | 980 | 720 | 1050 | 315 | 225 | 550 | 660 | 930 |
| SC10-250/10 | 720 | 2760 | 1.6 | 1110 | 900 | 1120 | 320 | 230 | 660 | 840 | 1040 |
| SC10-315/10 | 880 | 3470 | 1.4 | 1110 | 900 | 1275 | 325 | 235 | 660 | 840 | 1180 |
| SC10-400/10 | 975 | 3990 | 1.4 | 1110 | 960 | 1315 | 360 | 320 | 660 | 900 | 1450 |
| SC10-500/10 | 1160 | 4880 | 1.4 | 1155 | 960 | 1330 | 370 | 330 | 660 | 900 | 1630 |
| SC10-630/10 | 1345 | 5870 | 1.2 | 1240 | 960 | 1310 | 360 | 320 | 660 | 900 | 1900 |
| SC10-630/10 | 1300 | 5960 |
6 | 1.2 | 1290 | 960 | 1330 | 350 | 310 | 660 | 960 | 1900 |
| SC10-800/10 | 1520 | 6955 | 1.2 | 1320 | 1020 | 1350 | 360 | 320 | 820 | 960 | 2290 |
| SC10-1000/10 | 1770 | 8130 | 1.1 | 1360 | 1020 | 1455 | 370 | 325 | 820 | 960 | 2700 |
| SC10-1250/10 | 2090 | 9690 | 1.1 | 1430 | 1020 | 1505 | 385 | 340 | 820 | 960 | 3130 |
| SC10-1600/10 | 2450 | 11730 |
8 | 1.1 | 1470 | 1020 | 1695 | 410 | 370 | 820 | 960 | 3740 |
| SC10-2000/10 | 3320 | 14450 | 1.0 | 1580 | 1080 | 1830 | 430 | 405 | 820 | 1020 | 4150 |
| SC10-2500/10 | 4000 | 17170 | 1.0 | 1620 | 1080 | 1900 | 440 | 420 | 820 | 1020 | 4810 |
Notes: The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory documents.
Features
1. Safe,hardly inflammable and no pollution for environment protection.
2. Germany HTT technology in Power Transformer manufacturing.
3. Low losses, low noise level, maintenance free, easy installation and obvious low operation cost.
4. Better dissipation of heat, the transformer can operate up to 150% of its rated load under air-forced cooling condition.
5. Highly moisture-proof ability.
6. Temperature protection and surveillance system is avaliable to assure safe and reliable service of Power Transformer.
Packing & Delivery
Packaging Details:
1. Conventional packaging
a. Wooden box
b. Iron shelf
2. Special packaging: According to customer's requirement
