35kv High Quality Hv Instrument Potential Transformer

Name: 35kv High Quality Hv Instrument Potential Transformer
Brand: all-electronics-online.com
SKU: 716798852
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 800/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GFJDZX0946-35
Application:	Instrument
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Gfuve

Product Description

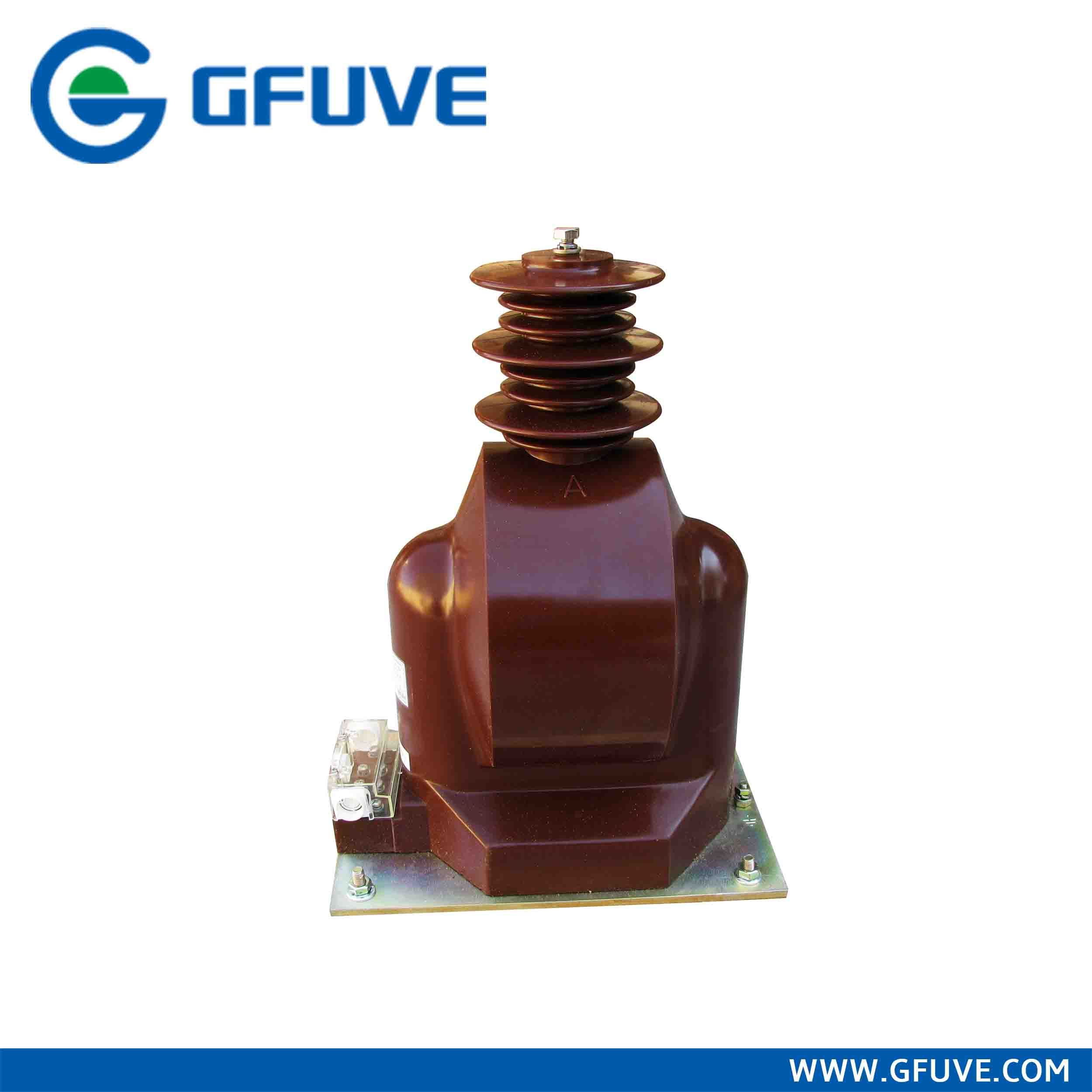

GFJDZX0946-35 35KV HIGH QUALITY HV INSTRUMENT POTENTIAL TRANSFORMER

The Model GFJDZX0946-35 potential transformer is single-phase multi-winding whole sealing epoxy pouring product. It is used both outdoor for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 36kV or below. It is designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

PARAMETERS

Technical parameters
Standards	IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Voltage	35KV
Rated load	≤100VA
Rated frequency	50Hz or 60Hz
Cosø	0.8 (lag)
Phase number	Single
Rated insulation level	40.5/95/200KV
Class of pollution	II
Mechanical parameters
Material	Epoxy resin
Weight (kg)	35
Operating conditions
Operating temperature	-25°C to +55°C
Daily average temp	<+40°C
Storage temperature	-40°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL PARAMETERS

Model	Rated Voltage Ratio(KV)	Class Combination	Rated output(VA)	Limiting Therminal Output(VA)

GFJDZX0946-35	35√3/0.1/√3/0.1/3	0.2/6P(3P) 0.5/6P(3P)	40/100 80/100	600
	35/√3/0.1/√3/0.1/√3/0.1/3	0.2/0.2/6P(3P) 0.2/0.5/6P(3P) 0.5/0.5/6P(3P)	10/10/100 10/30/100 30/30/100	300
