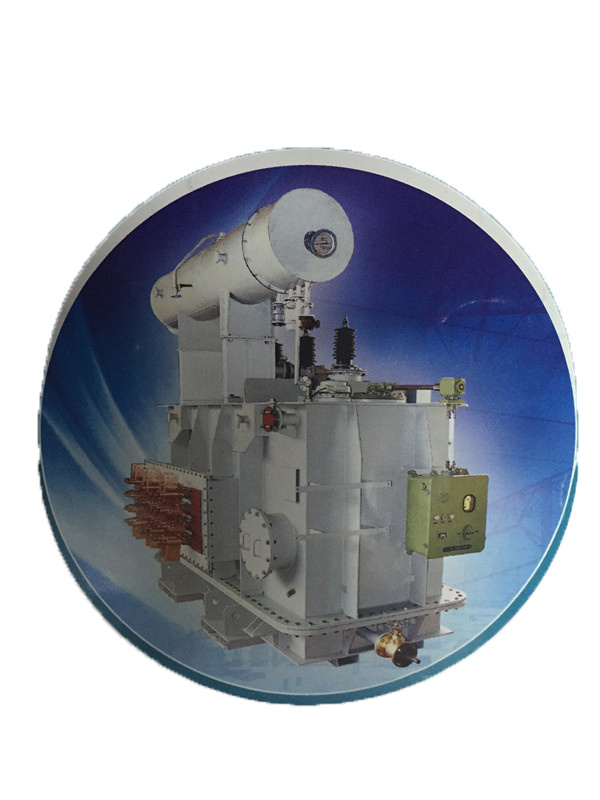

35kv Oil Immersed Furnace Transformer
| Price: |
US $ 1-7700000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
35KV 69KV SFZ-70000/35KV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
35kv 69kv |
| Frequency: |
50Hz or 60Hz |
| Connection Symbol: |
Yyn0, Dyn11 or Other |
| Application: |
Steel Industrial Furnace |
| Phase: |
Three |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Usage: |
Electric Arc Furnace Transformer for Steel |
| Brand: |
Ville |
Product Description
General:
Adopting advanced and strictly technology, the 35kV'sand 69kv's transformer that we develops to produce index all achieves the advanced standard of international by way of constantly exploring and make perfect. The product possesses characteristics such as the low loss, low noise and low power in part and the resisted short circuit ability is strong etc. The product breed is diversified and the model specifications complete.
Features:
Low loss, significant energy saving
The iron core is a circular stage, oblique three-pole joint laminated structure
HV and LV windings are all made by the oxygen-free copper winding system; HV winding adopts multilayer cylindrical structure.
The active part is structure
Adopt new type components and fasteners
The transformer product can be installed and use in outdoor or indoor, and it is very ideal equipment in the distribution network in factory, rural area and city.
The active part of this product uses newstyle insulation structure, which improves the ability to withstand short circuit; The iron core is made of highly qualified cold-roll silicon steel sheet; Anaerobic copper wires are selected for HV windings and adopt the structure of multilayered cylinder type; All the fasteners undergo special sanforizing treatment. The product has the characteristics of high efficiency and low loss, which can save a lot of cost for power consumption and operation. The product's social benefit is remarkable and it is a high-tech product popularized by the nation.
Technical parameters:
1 Standard: GB1094-1996; JB/T10088-2004; GB/T6451-2008; EQV IEC60076
2 voltage: 35kV 69kv
3 regulator means: No excitation voltage regulator or load tap
4 Frequency: 50Hz or 60Hz
5 phases: Three Phase
6 Connection Symbol: Yyn0, Dyn11 or other
7 short-circuit impedance: Standard resistance (see data sheet)
Technical Data:
| Products Model | Rated Voltage | Symbol | No-load Loss (W) | Load Loss (W) | No-load Current (%) | Impedance Voltage (%) |
| High Voltage (kA) | Low Voltage |
| S9-800/35 | 35 ±5% | 3.15 6.3 10.5 | Yd11 | 1.23 | 9.9 | 1.05 | 6.5 |
| S9-1000/35 | 1.44 | 12.2 | 1.00 |
| S9-1250/35 | 1.76 | 14.7 | 0.90 |
| S9-1600/35 | 2.12 | 17.6 | 0.85 |
| S9-2000/35 | 2.72 | 19.4 | 0.75 |
| S9-2500/35 | 3.20 | 20.7 | 0.75 |
| S9-3150/35 | 35 38.5 ±5% | 3.15 6.3 10.5 | 3.80 | 24.3 | 0.70 | 7.0 |
| S9-4000/35 | 4.52 | 28.8 | 0.70 | 7.0 |
| S9-5000/35 | 5.40 | 33 | 0.60 | 7.0 |
| S9-6300/35 | 6.56 | 36.9 | 0.60 | 7.5 |
| S9-8000/35 | 35 38 ±2×2.5% | 3.15 3.3 6.3 6.6 10.5 11 | Ynd11 | 9.20 | 40.5 | 0.55 | 7.5 |
| S9-10000/35 | 10.88 | 47.7 | 0.55 | 7.5 |
| S9-12500/35 | 12.80 | 56.7 | 0.50 | 8.0 |
| S9-16000/35 | 15.20 | 69.3 | 0.50 | 8.0 |
| S9-20000/35 | 18.00 | 83.7 | 0.50 | 8.0 |
| S9-25000/35 | 21.38 | 99.0 | 0.40 | 8.0 |
| S9-31500/35 | 25.28 | 118.8 | 0.40 | 8.0 |
Our advantages:
Quality Assurance
--From the very beginning, VILLE ensures quality in every step to achieve the best quality.
Experience Sharing
--With more than 30 years' experience in power industry, VILLE brings you an optimized solution.
Global Service
--Wherever you are, VILLE global network will support and provide you with value.
Quick Response
--In response to your needs without delay, VILLE knows the value of your time.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
