35mm Electronic Controller 0.4A NEMA 14 Non-Captive Linear Stepper Motor with Ce, RoHS Certification

35mm Electronic Controller 0.4A NEMA 14 Non-Captive Linear Stepper Motor with Ce, RoHS Certification
Price: US $ 10.3-12.5/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: 35SHD0303-T1
Thrust: 2.5kg
Rated Current: 3A
Wire: Direct Wire
Holding Torque: 40mn.M
Lead Screw: Tr5
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Application: Stage Light, 3D Printer etc
Brand: Casun
Certification: Ce, RoHS

Product Description



Casun stepper motor offers
 2 phase ,3 phase hybrid stepper motor in three basic step angles :0.9 deg. 1.8deg. and 1.2 deg. and a wide rang e of frame size from Nema 8 (20mm) up to Nema 34 (86mm) , which also offers many axial options at the end of processing of the shaft ,hollow shaft ,dual shaft ,single flat shaft , double flat shat etc. Smaller rotary stepping motor find widely applications in3d printers and many robotics. The larger NEMA frames are common in CNC machines and industrial applications. OEM & ODM are available,  your motors also can be customized as your requirements.

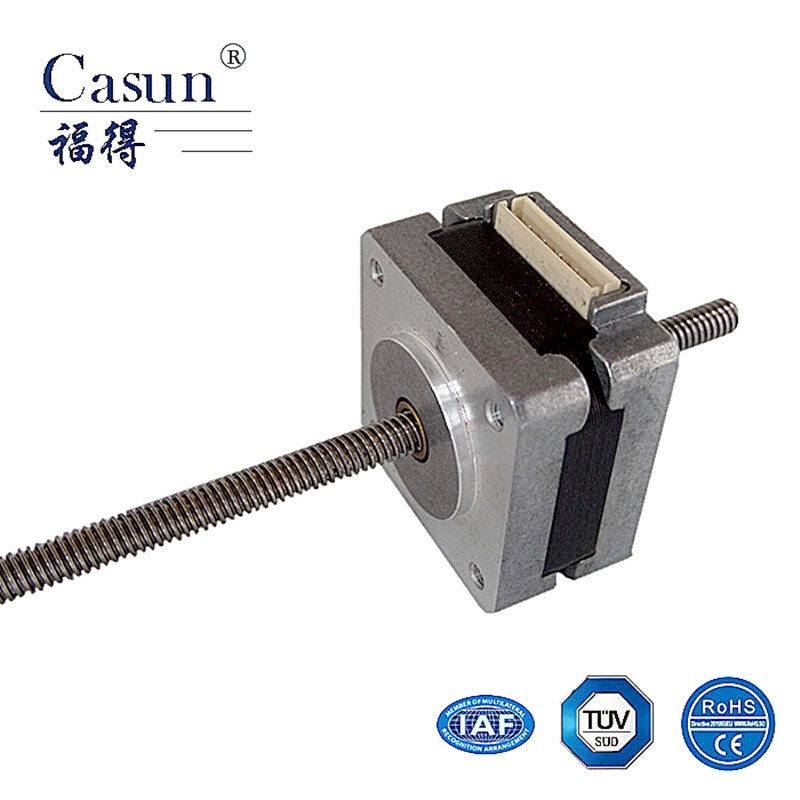

35mm electronic controller  0.4a nema 14 non-captive  linear stepper motor with CE , ROHS certification

CASUN      35SHD0303-T1
Rated Current0.4 A
Rated Voltage:8.0V
Step angle:1.8 degree
Number of phase :2 phase
Shaft :lead screw
Wire :4 wire
Size :35x35x20 mm
Certification:CE , ROHS

General Specifications :
ModelHolding torque Rated current Resistance per phase Inductance per phase Detent torque Rotor inertiaLead wireMotor length
mN.mAohmmHmN.mg.cm²No.mm
35SHD00011000.42020812426

35SHD0006700.353014.58126
35SHD00101000.754.34.08126
35SHD0018700.5105.58126
35SHD01011500.4 24381214434
35SHD01021500.755.89.512144
35SHD08012000.51825.51418440
35SHD08032001.22.53.814184
35SHD06023000.524421828450

Above is our partial products parameter, for more products please contact us . Your samples can be customized.

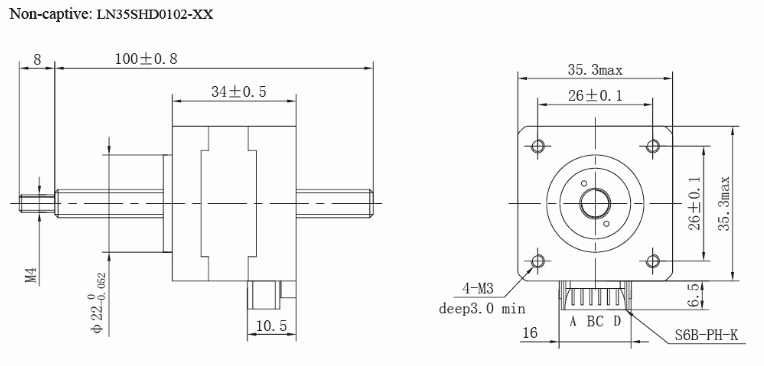

Figure Dimensions:





Our company :
Guangzhou Fude  Electronic Technology Co., Ltd., established in 2011, engaged in stepper motor research ,  development, production and sales , are one of the hi-tech enterprises. After several  years of technology researching  and development, market development, we gradually become the one of best quality stepper motor manufacturers in China. In order to offer our best service and  meet customer's  requirements , we all try our best to  customize the motor  and provide solutions.

Our company has
numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting, 3d printer,, automation equipment, SMT and other equipments.


Certifications:
1.We have pass ROHS & CE certifications
2.We have our own paten stepper motors.


Packing & Payment &Delivery :
Payment TermT/T, PayPal, Western Union, Cash, Escrow
Accepted Payment CurrencyUSD, CNY
Packaging Detailcusomized packages, poly bag/customized blister/color box etc. as per your need
Delivery Detail10 Day(s)
Delivety Porthuangpu,luogang,shenzhen
Accepted Delivery TermsFOB, EXW , CIF ,CFR etc
