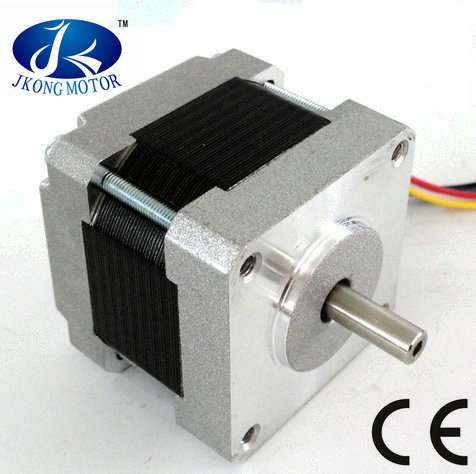

35mm Hybrid Stepper Motor, Stepping Motor, Step Motor 35HS28-0504A

Name: 35mm Hybrid Stepper Motor, Stepping Motor, Step Motor 35HS28-0504A
Brand: all-electronics-online.com
SKU: 695327205
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 5-6.5/Piece
Trade Terms:	FOB,DAT
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	35HS28-0504A,
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Size:	35mm*35mm
Body Length:	28mm
Current:	0.5A
Holding Torque:	1kg.Cm
Shaft Shape:	D-Cut
Key Word:	35mm Stepper Motor
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Operate Mode:	Pulse
Certification:	Ce and RoHS
Brand:	Jkong Motor

Product Description

35mm Hybrid Stepper Motor, Stepping Motor, Step Motor 35HS28-0504A ,1.8° 35mm Hybrid Stepper Motor-NEMA14

Genaral Specification:

Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Shaft Radial Play --------------- 0.02Max. (450g-load)
Shaft Axial Play ----------------- 0.08Max. (450g-load)
Max. Radial force----------------- 28N (20mm from the flange)
Max. Axial force------------------- 10N

NEMA14 STEPPER MOTOR

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Rotor Inertia	Weight
Model No.	( ° )	(L)mm	A	Ω	mH	g. cm	No.	g. cm	Kg
JK35H27-0464	1.8	27	0.46	20	14	1200	4	11	0.12
JK35H27-0804	1.8	27	0.8	5	5	1200	4	11	0.12
JK35H27-0406	1.8	27	0.8	30	11	900	6	11	0.12
JK35H34-0424	1.8	34	0.42	25	32	1800	4	13	0.16
JK35H34-0804	1.8	34	0.8	6.5	9.8	1800	4	13	0.16
JK35H34-0406	1.8	34	0.4	30	22	1200	6	13	0.16

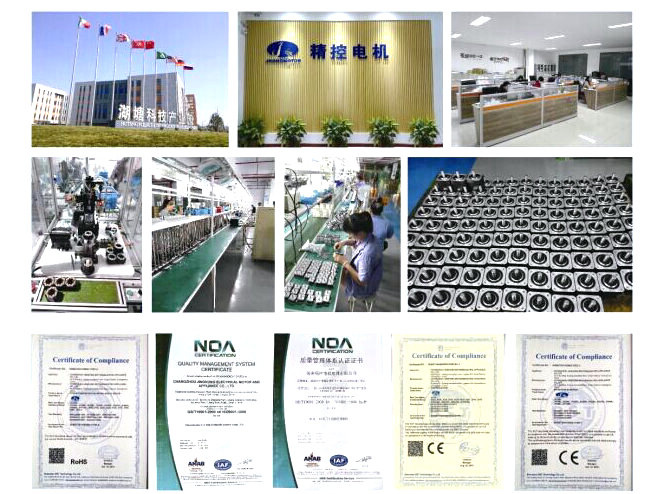

Company Show:

CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.

Our Appliance fields refer to robot, electronic equipment, medical instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.

All our products have obtained CE certification, compliance with EU ROHS standards.

Welcome Domestic & foreign customers visit and cooperation!

RELATED PRODUCTS

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

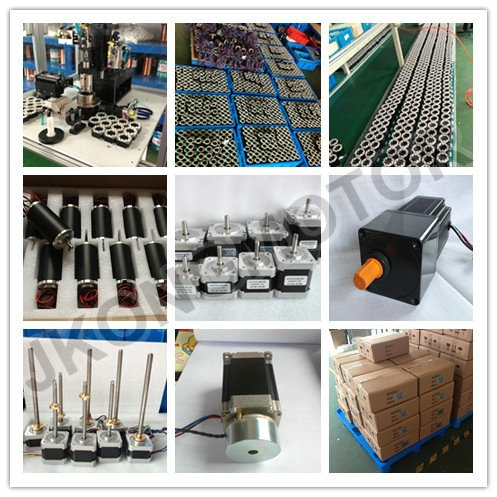

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
