35UF Capacitor Cbb60 370V for Air Compressor

Name: 35UF Capacitor Cbb60 370V for Air Compressor
Brand: all-electronics-online.com
SKU: 793832785
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB60
Rated Voltage:	200VAC-500VAC
Operating Temperature:	40/85/21
Terminal:	Lead Wire,Pin or Cable (Also Customize)
Shape:	Oval
Shell:	Plastic
Protection Class:	P0,P2
Certificate:	UL,TUV,CQC,ISO9001,SGS
Sample:	Ok
MOQ:	Negotiable
Delivery Time:	According to The Quantity
Type:	Polystyrene-film-capacitors
Application:	Fan
Package Type:	Through Hole
Capacitance:	1~60UF
Electrolyte:	Castor Oil
Usage:	Fan/AC/Motor
Tuning:	Film Capacitor
Filter:	Film Capacitor

Product Description

35UF Capacitor CBB60 370V for Air Compressor

Features:
1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2:Self-healing property.
3:High stability and reliability.

Specifications:

reference standards	GB/T 3667.1 (IEC60252-1)
Climatic category	40/70/21, 40/85/21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	P0/P2
Voltage range	200~500VAC
Capacitance range	1~60 µF
Capacitance tolerance	±5%
Dissipation factor	20×10^-4 (100Hz,20ºC)
Test voltage terminal to terminal U_TT	2 Un for 2 seconds
Test voltage terminal to case U_TC	(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance	≥3000MΩ.µF(100Hz,20ºC,1min)

Dimensions:

specifications	routine		with screws or pins
specifications	450VAC	250VAC	450VAC	250VAC
1µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
2µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
2.5µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
3µF	Φ26*52	Φ26*52	Φ30*52	Φ30*52
3.5µF	Φ26*52	Φ26*52	Φ30*59	Φ30*52
4µF	Φ28.5*55	Φ26*52	Φ35*62	Φ30*52
4.5µF	Φ28.5*55	Φ26*52	Φ35*62	Φ30*52
5µF	Φ28.5*55	Φ26*52	Φ35*62	Φ30*52
5.5µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
6µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
6.5µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
7µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
8µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
9µF	Φ34*62	Φ26*52	Φ35*62	Φ30*52
10µF	Φ34*62	Φ26*52	Φ35*72	Φ30*52
12µF	Φ37*73	Φ26*52	Φ35*72	Φ30*61
14µF	Φ37*73	Φ34*62	Φ40*72	Φ30*61
15µF	Φ37*73	Φ34*62	Φ40*72	Φ30*61
16µF	Φ37*73	Φ34*62	Φ40*72	Φ30*61
18µF	Φ37*73	Φ34*62	Φ40*72	Φ35*67
20µF	Φ40*70	Φ34*62	Φ40*72	Φ35*67
25µF	Φ42*80	Φ42*62	Φ40*72	Φ35*67
30µF	Φ42*90	Φ40*72	Φ45*95	Φ40*72
35µF	Φ45*90	Φ40*72	Φ45*95	Φ40*72
40µF	Φ50*100	Φ42*90	Φ50*110	Φ40*97
45µF	Φ50*100	Φ42*90	Φ50*110	Φ40*97
50µF	Φ50*100	Φ42*90	Φ50*120	Φ40*97
60µF	Φ50*115	Φ42*90	Φ50*120	Φ40*97

Note:Other specifications,size and terminal outside table are negotiable.

CBB60
Descriptions:
motor capacitor, oil capacitor, IGBT capacitor, aluminum case capacitor , anti-explosion capacitor ,CBB65 motor run capacitor,CBB61 capacitor, air conditioner capacitor ,fan capacitor, inverter welding capacitor,

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.

Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.

Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
Insulation Resistance:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)

Application requirements:
Altitude:≤2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current

Dimensions & specifications (mm):

Rated voltage(VAC)	Nominal capacitance(μF)	Size(mm)
		D	H
200,250,370, 400,440,450,600 ,700,1200	1,1.2,1.5,2,2.5,3,3.5,4,4.5, 5,5.5,6,6.5,7,8,10,10.5,11, 11.5,12,15,16,20,25,30,35, 40,45,50,55,60, 12+6, 10+5.5, 13+6,…	30,32,35,40, 41,43,45,46, 50	47,57,65,73,80,84,85,98,105,110

Note:1,Terminal leads are wires or 250# (187#) single (dual) tab(s).
2,Other dimension serials can be specified in pursuance of customer's request.

FAQ:
1.How is your product quality?
We strictly executive ISO9001 quality management system certification; and our products won UL CQC, TUV, VDE performance certification and SGS report.

2.How can I get some samples?
We are honored to offer you samples if you need! The little sample cost can be free, the large quantity samples,can be negotiable.

Advanced production facilities and inspection equipment
Fast delivery at large production capacity for big orders

Shipment:

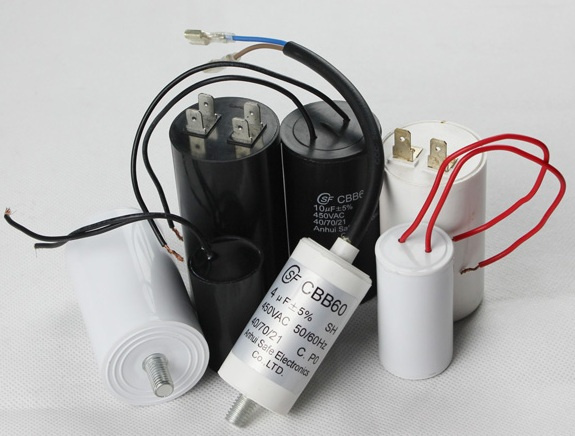

Our another product:

Advanced One-Stop Purchasing Service. Welcome !

Contact:
Aimee Chen
Changzhou Andwin International Corporation Limited
Add:No.91 Hanjiang Road, New District, Changzhou, Jiangsu, China.

Phone: 0086 18015803382
Tel: 0086-519-83984950-803
Fax: 0086-519-83984950-808

Changzhou Andwin Company located in Changzhou Jiangsu near Shanghai city, which is a professional supplier of materials and parts of air conditioner, refrigerator, wash machine.

Andwin promotes One-Stop Purchasing Service for customers, thus to save customers' costing and time. Set up warehouse in Changzhou, manage all items and integrate resources around China for Customers.

Andwin company businesses cover: Capillary tube, aluminum tube, cu-al bimetal tube(ACC, CCA tube), CAT tube, brass, fan motors for air-con, Compressors, spin motor for wash machines, insulation connection pipe kits for air-con, PE tapes, soldering rod for copper tube and aluminum tube, all hardware such as fasteners, latches… All these items are related with Refrigeration industry, as Andwin is special and professional in this industry.

Through years of hard work, Andwin's successful clients cover Malaysia, Thailand, Korea, Pakistan, Australia, Turkey, Indonesia, India, Sri Lanka, Kuwait and so on. Choosing Andwin company as professional partner in China, you can leave out lots of affairs, will not worry about your fund security and goods quality. Andwin will handle all these for you.
