35W 24V PWM Indoor LED Driver for LED Signage

Name: 35W 24V PWM Indoor LED Driver for LED Signage
Brand: all-electronics-online.com
SKU: 748467195
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 5.22-5.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E35B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	24V
Output Current:	1.45A
Size:	1107835mm
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Connection Input/Output:	Terminal
Power Factor:	Low
Dimming:	No
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC220-240V
Brand:	Eco

Product Description

35W 24V High Quality PWM LED Driver with CE

1. Features of LED driver:
- Constant voltage output Switching Power Supply .
- Indoor Switching Power Supply .
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2.Specifications of LED driver:

Model no.	ELDV-24E35B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	35W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	1.45A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Weight(kg)	0.2000

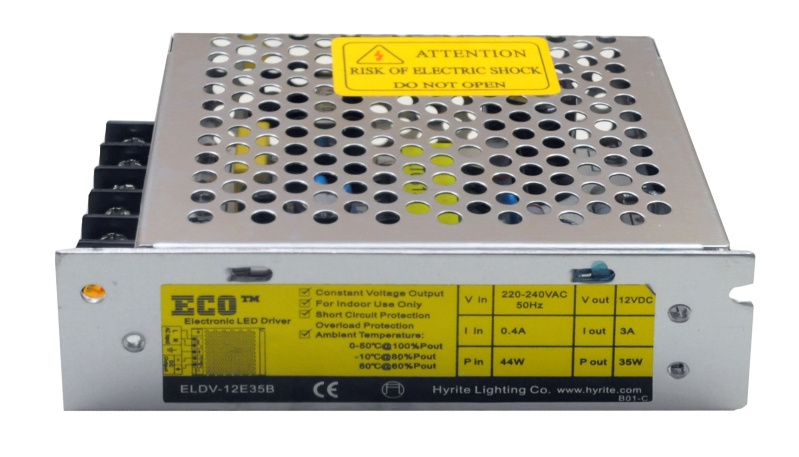

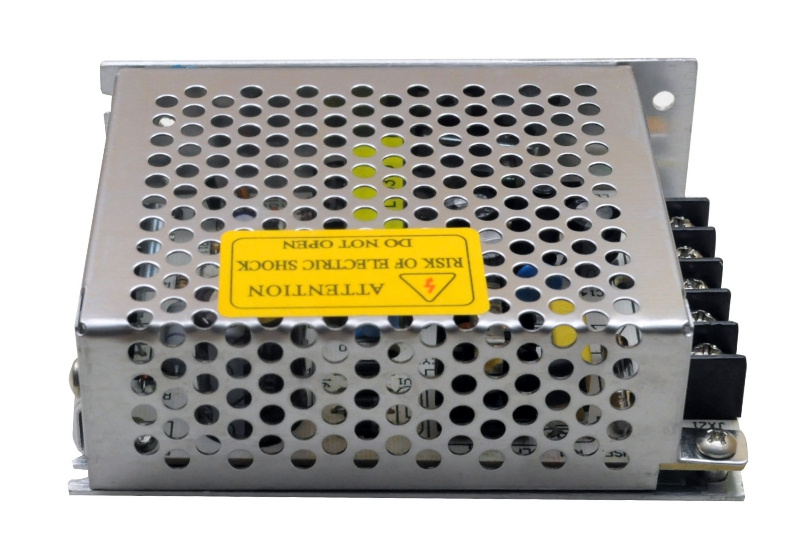

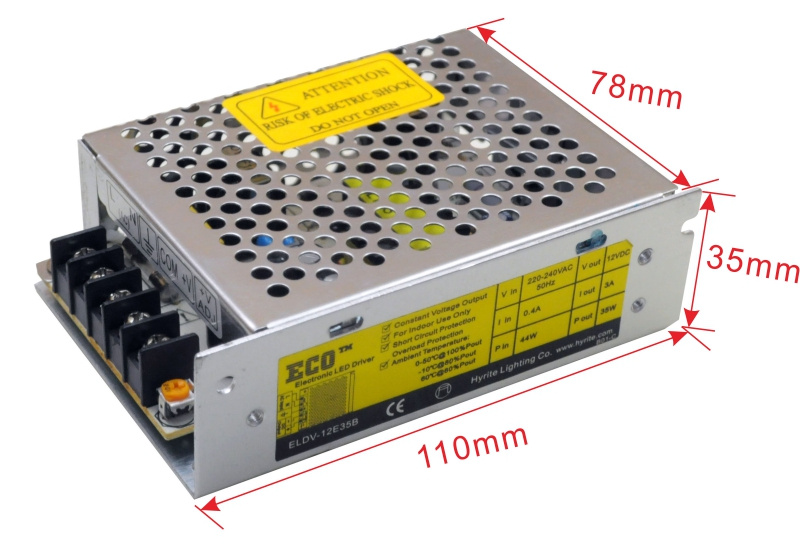

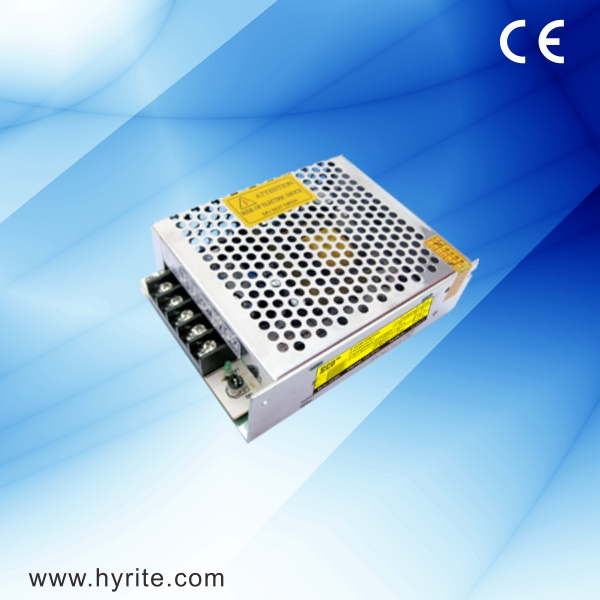

3.Detail pictures of LED driver

4. Applications of LED driver:
*LED modules & LED strip
*LED light box and channel letter
*LED-neon tube
*Bar Light
*Other signage lighting

5. Important Parameter of Switching Power Supply :

Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
