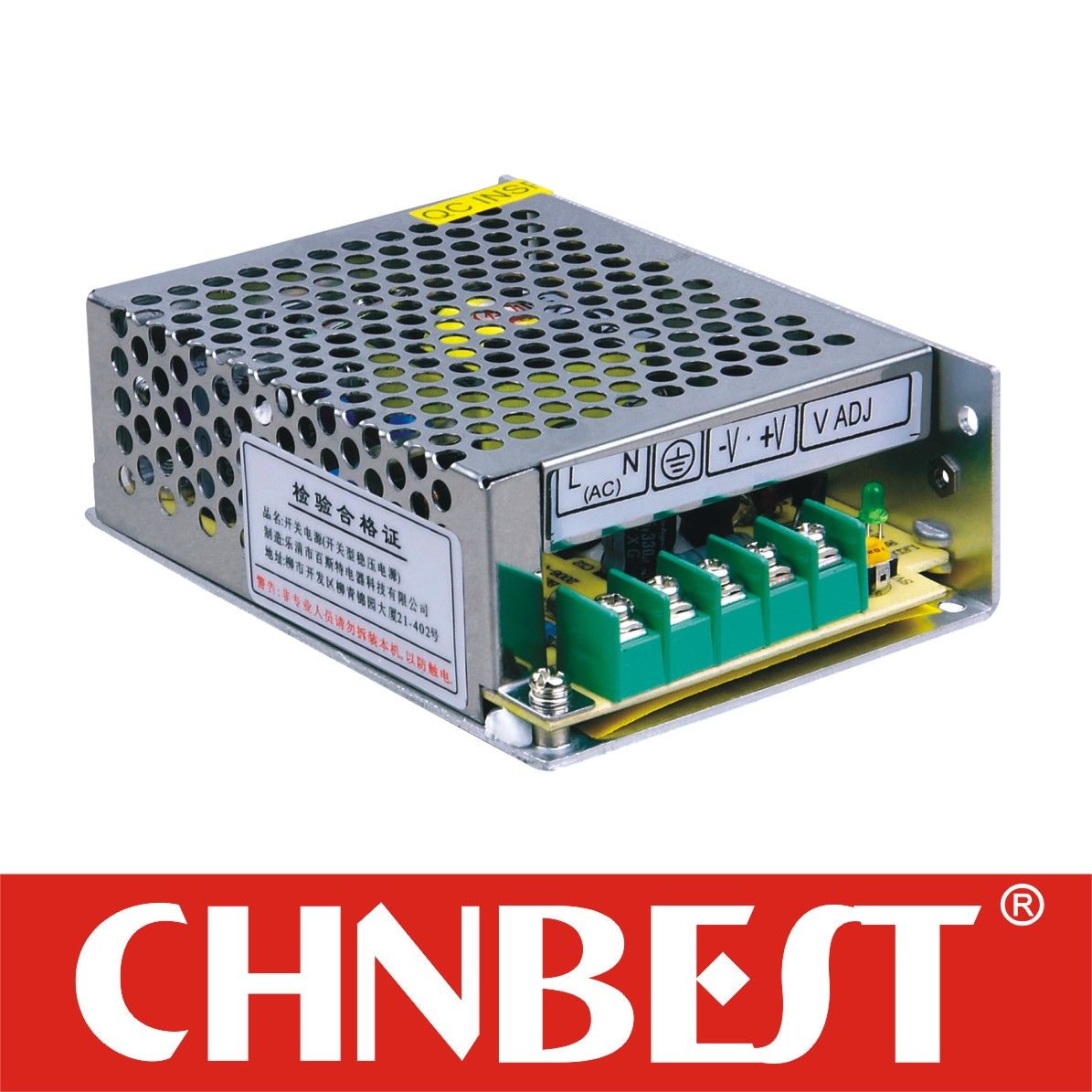

35W 5V Mini Size SMPS Switching Power Supply with CE and RoHS (Bs-35-5)

35W 5V Mini Size SMPS Switching Power Supply with CE and RoHS (Bs-35-5)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: BS-35-5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Material: Aluminum
Color: Silver
Size: 110*78*35
Output Type: Single
Output Power: 1 - 50W
Input Voltage: Full Range
Voltage Regulating Mode: Frequency Modulation Type
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Warranty: >2 Years
Power Supplying System: Terminal Power Distribution Equipment
Certification: ISO
Brand: Chnbest

Product Description

100% full load burn-in test
Small size,High Power density
Universal AC input:85-264VAC
Fixed switching frequency at 47-63Hz
Protections:Short circuit/Overload/Over voltage
Approvals:CE     RoHS
Size:110*78*35mm
Specification                                      BS-35-5
DC output                                  5V  7A
Wave and noise                             50mVp-p
Inlet stability                             ±0.5%
Load stability                                ±1%
Efficiency                              77%
Adjustable range for DC voltage                                 ±10%
AC input voltage range 85-264VAC  47-63Hz    120-370VDC
AC Inrush currentCold-start current  15A/115V  30A/230V
OverLoad protection         105%-150% hiccup mode,auto-recovery
Over-Voltage protection
Setup,rise,hold up time300ms,50ms,80ms at full load and 230VAC
Withstand voltage  I/P-O/P:3Kv    I/P-FG:1.5KV   O/P-FG:0.5KV   1minute
Isolation resistanc I/P-O/P   IP/FG   OP-FG:500VDC/100M
Working temperature-10ºC—+50ºC
Safety StandardsDesign refer to GB4943,UL60950,EN60950
EMC Standards Design refer to GB9254,EN55022 Class B
Weight0.29Kg

Zhejiang Best Electric Co., Ltd. Founded in 2000. Our factory is located in Wenzhou Zhejiang.

With over 16 years of experience in design and manufacture of switching power supplies, we have established long-term relationship with hundreds of big customers in the field of industrial control, telecom, LED, display & lighting of buildings, elevator, laser equipment, TV & broadcasting, computer system, medical equipment, safety control, automotive system, banking equipment

The products include Single output series, Waterproof Series, Rainproof Series, DIN-Rail Series, With PFC Function Series, With Battery Charger Series, DC to DC series, Open Frame Series, Dual Output Series, Triple Output series, Quad Output Series, and custom-design switching power supplies, over 5, 000 models showing great flexibility.

The company is certified by SGS. Over 100 models power supply have acquired CE, RoHS approval, and more are underway. We have various advanced equipment, such as wave soldering and reflow soldering machine, AI component insertion machine, auto chip mounter, ATE, ICT, RoHS testing, environmental testing, EMC testing system, burn-in test room, data acquisition Only top brand international components are adopted for the key parts to ensure long lifetime and high reliability. Each unit is given full load burn-in test. With high quality and market reputation,

We were honored to become main SMPS supplier for Beijing Olympic Games, and Shanghai Expo 2010.

We are confident to offer you total power solutions and become our trustworthy power partner.
