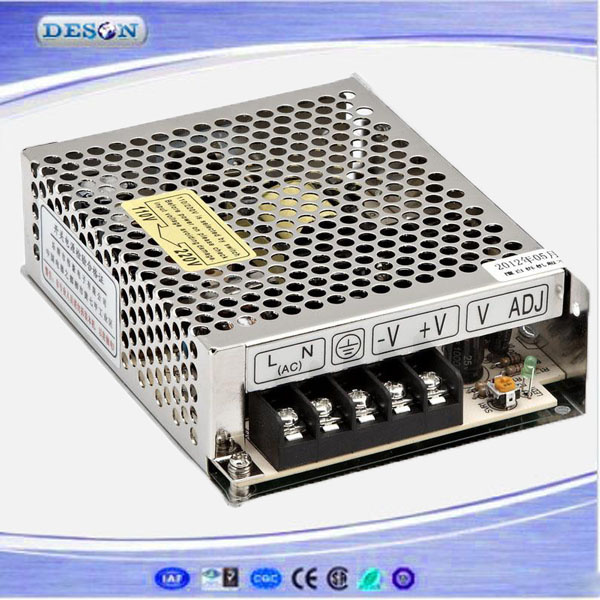

35W Single Output Switch Power Supply

35W Single Output Switch Power Supply
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: S-35
Power: 35W
Input: AC100-240
Output: 5V/12V/24V
Size: 98X97X35mm
Weight: 0.41kgs
Output Type: Single
Warranty: 2 Years
Output Power: 1 - 50W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Deson
Energy Transmission: Switch Power Supply

Product Description

35W Single Output Switch Power Supply

1.Universal AC Input
2.Compact size , light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Soft-start current can reduce the AC input impact effective
7. 2 years warranty

Product Description

MODELS-35-5S-35-9S-35-12S-35-15S-35-24
OUTPUTDC VOLTAGE5V9V12V15V24V
VOLTAGE TOLERANCE±2%±1%±1%±1%±1%
RATED CURRENT7A3.6A3A2.4A1.5A
CURRENTRANGE0-7A0-3.6A0-3A0-2.4A0-1.5A
RATED POWER35W32.4W36W36W36W
RIPPLE &NOISE(MAX)75mVp-p100mVp-p100mVp-p100mVp-p100mVp-p
DC VOLTAGEFRE QUENCY RANGE+10,-5%±10%±10%±10%±10%
SETUP,RISE,HOLD TIME200ms,100ms,300ms
INPUTVOLTAGERANGE85~132 VAC/170~264VACselected47~63 Hz 240~370VDC
AC CURRENT0.8 A/115 V 0.45A/ 230 V
EFFICIENCY70%72%76%78%78%
INRUSH CURRENTCold start 18A/115V 36A/230V
LEAKAGE CURRENT<2mA/240VAC
PROTECTIONOVERLOAD PROTECTION110%~160% cutoff output. Fold back current limiting, recovers automatically
OVER-VOLTAGE PROTECTION..
HIGH TEMPERATURE PROTECTON..
ENVIRONMENTWORKING TEMP.& HUMIDITY-10~+60 20%~90 %RH
STORAGE TEMP.& HUMIDITY-20~+85 10%~95 %RH
VIBRATION10~500Hz,2G 10min./1 cycle,period for 60min,each alongX,Y,Z axes
SAFETYWITHSTAND VOLTAGEI/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
ISOLATION RESISTANGEI/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
STANDARDSSAFETY STANDARDSDesign refer to UL1012
EMC STANDARDSDesign refer to FCC part15 J Conduction Class B
OTHERSWEIGHT0.41Kg
PACKING30pcs/13.5Kg/0.86CUFT
NOTE1. Tolerance: Includes set up tolerance, line regulation and load regulation.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire teminated with a
0.1μf & 47μf parallel capacitor.
