360 Degree Intelligent PIR Motion Sensor Light Switch with Automatic on/off Function

360 Degree Intelligent PIR Motion Sensor Light Switch with Automatic on/off Function
Price: US $ 1/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 100/Piece
Pay Type: T/T,Western Union,Money Gram
Prod Model: ZDPS-101
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Infrared Sensor Switch
Principle: Infrared
Wires: NPN (',Three-Wires)
Standard: Standard
Application: Corridor
Certification: CE
Size: ceiling Mounting

Product Description

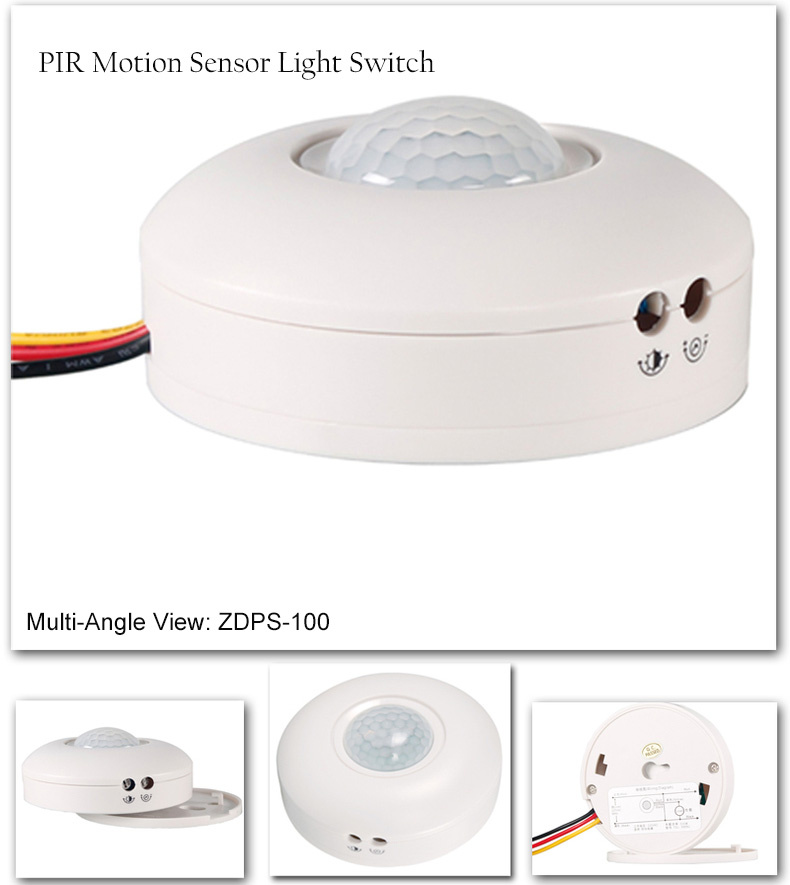

Intelligent PIR Motion Sensor Light Switch: ZDPS-100
Powerful Features:

1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance




Fuction discription
Relay controls load
Operating voltage
AC 110V~250V (50~60Hz)
Perating temp.
-20 °C ~ +50 °C
Static power
< 0.026W
Load power
800W
Load capacity
all kinds of lights, appliances

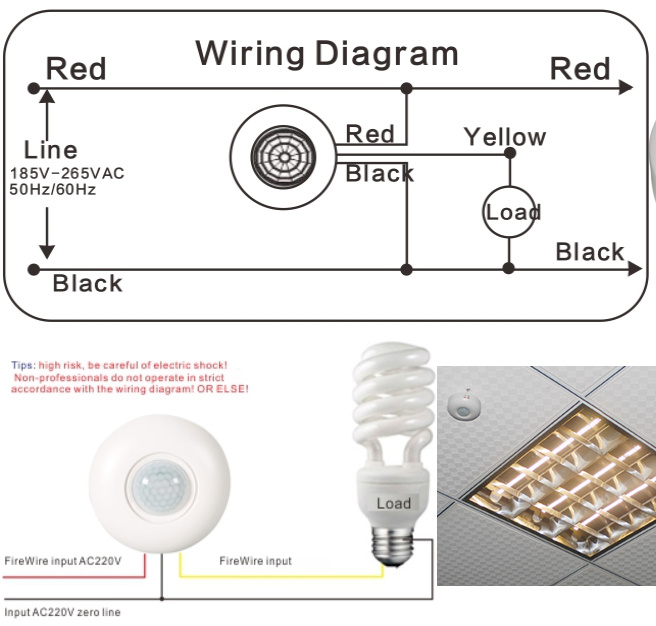

Connecting style
input220VAC,output220VAC
Output mode
induction output
Light control range
5 Lux ~ 500Lux ± 20% (adjustable)
Delay shutdown time
16~350 Secs ± 30% (adjustable)
Induction mode
passive
Induction angle
360°coning angle
Detecting distance
5~7 M
Installing method
roof installation/ceiling installation
Dimension/color
89 *36 mm / porcelaine

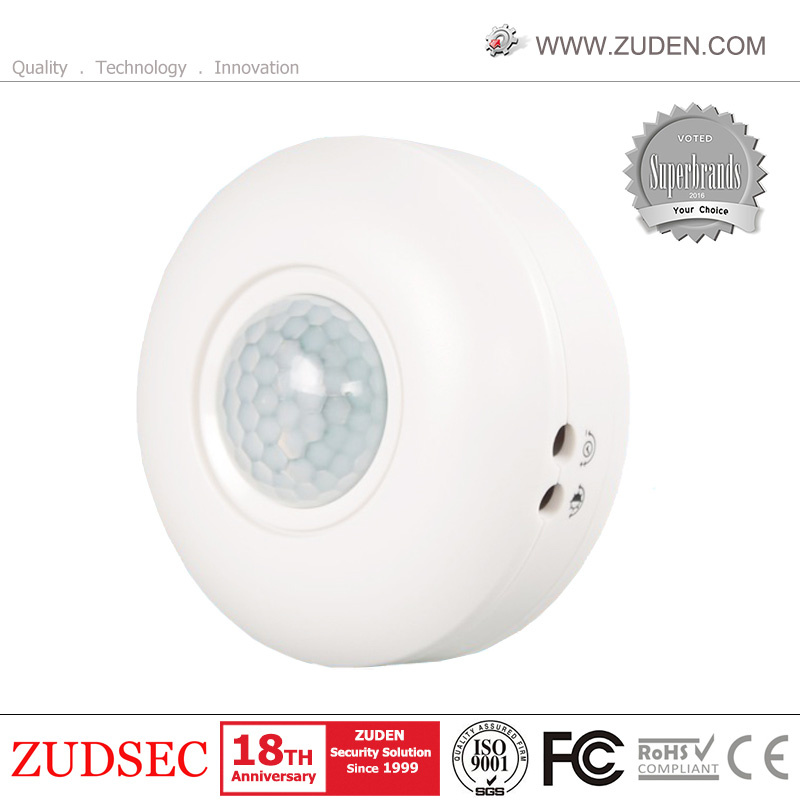

Intelligent PIR Motion Sensor Light Switch: ZDPS-101
Powerful Features:

1.Automatic induction: when people enter into the range of induction,it will turn on,when people leave,it will turn off with delay.
2.It can be applied to corridor ,passageway, toilet,basement, warehouse,garage,etc., which have the function of automatic lighting, and control.
3.Photosensitive control:it adopting photoactive control,it doesn't turn on during daylight or in strong light environment.
4.Automatic random delay:After it turns on,in the delay period,if there is presence of people,it keeps on working until people leave,than turn on with delay.
5.Status indicator: efficient LED indicator,which is easy for installation and fault analysis.
6.Temperature compensation:tuodi specialized temperature compensation chip,which used to reducing the effect of temp. on detecting distance
