| Prod Model: |
360V 380V180KW |
| Weight: |
1200kg |
| Model: |
360V 380V180kVA |
Product Description

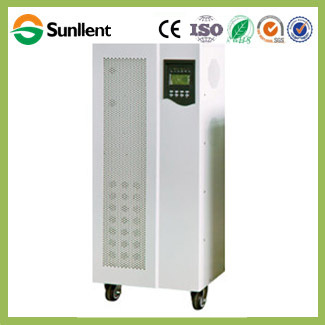

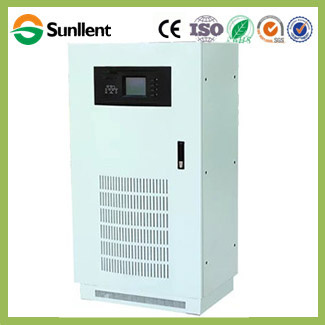

360V 380V180KW three phase Hybrid solar inverter for renewable energy system
Product features- Adopts power frequency transformer isolation method, pure sine wave ac output, safe and reliable
- Has battery, undervoltage, overvoltage, heat output, output overload, short circuit, battery, battery overcharge, discharge the counter-attack filling at night and a series of comprehensive protection
- Intelligent LCD or digital display dc voltage, output voltage inverter, the inverter output current and Inverter output frequency, power input voltage, power grid frequency, etc
- Have password protection function, which can effectively prevent laypeople to the wrong operation of the machine
- Can be realized with the mains switch, switch time is short, can meet the demand of high-end equipment such as computers
- Provide standard RS485 interface; Easy installation, easy maintenance

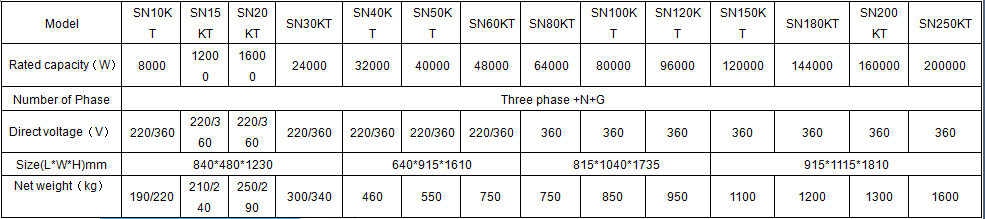

Technical parameters
Common parameters| Three-phase inverter |
| Nominal voltage, frequency, waveform | 380VAC±1%(steady-state load),380VAC±3%(fluctuation of load ),50Hz±0.5%,sine wave |
| Frequency stability:when out of synchronization ;when synchronization | <±0.05%;<±5% |
| Crest factor;Total Harmonic Distortion | 3:1; linear road<3%; nonlinear loads <5% |
| Dynamic load voltage transient( It's jumping from 0 to 100 percent ) | <±5% |
| Instant recovery time; Balance load voltage | <10ms;<±1%;<±5%(Unbalanced load voltage ) |
| Overload capacity, inverter efficiency, load 100% | 125% 1min,150% 1S;>90% |
| Computer communication interface | RS232,(485,Network remote monitoring option) |
| Noise dB (according to load and temperature) 1M far from machine | 45~55 |
Operating temperature and relative humidity (non condensing)
| 0~40ºC,30%~90% |
| Operation height (max.) and cooling mode | <1000 meters(Power decreased by 1% per 100 meters , The highest 5000 meters )forced-air cooling |

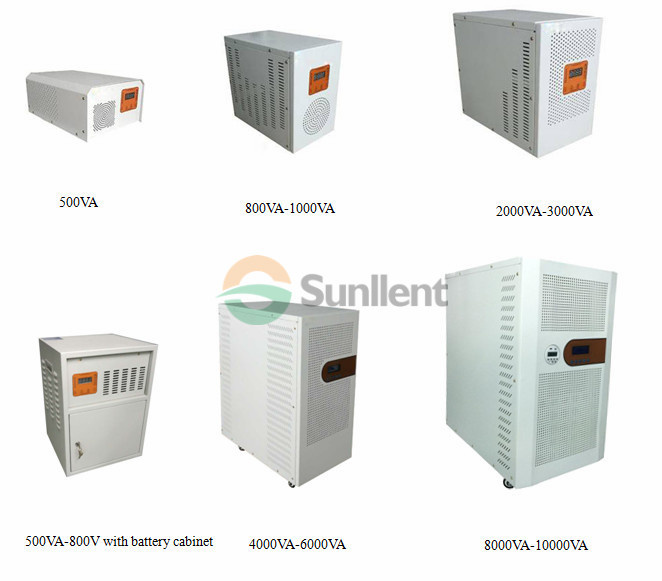

We also have power frequency series Photovoltaic controller & Inverter integrated machine for your choice.
