36kv 70kn Composite Suspension Insulator (FXBW-36/70)

Name: 36kv 70kn Composite Suspension Insulator (FXBW-36/70)
Brand: all-electronics-online.com
SKU: 696295595
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 8/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FXBW-36/70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Voltage:	15-46kv
Chemistry:	Inorganic Insulation
Thermal Rating:	250 250
Bending Load:	70kn
Application:	Insulators
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	Solid
Brand:	Powlik

Product Description

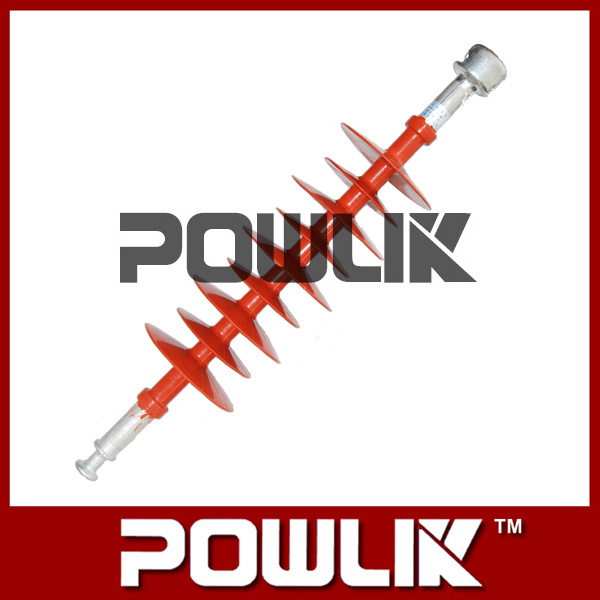

36kv 70kn Composite Suspension Insulator(FXBW-36/70)

This production is applied to high voltage power line service. And have features of good gydrophobicity, anti-ageing, anti-leakage trace and electric erode proof, tensile strength, strong mechanical strength, shock resistence good quakeproof and brittle failure proof, light weight easy to installation, and the installation outline of top and base are the same size with porcelain pin type, they can exchange to use each other.

type	Rated voltage (kV)	Rated mechanical bending load (kN)	Height (mm)	Insulation distance (mm)	Min creepage distance (mm)	Diameter of shed (mm)	Lightning impulse withstand voltage (kV)	P. F withstand voltage(virtual value) (kV)
FXBW-36/70	26	70	560	385	1050	130/100	265	95

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
