36kv Indoor Single Pole Potential/Voltage Transformer/PT/Vt with Fuse and Single Pole Insulated Vt

Name: 36kv Indoor Single Pole Potential/Voltage Transformer/PT/Vt with Fuse and Single Pole Insulated Vt
Brand: all-electronics-online.com
SKU: 757636485
Availability: InStock
Rating: 5 (146 reviews)

Price:	US $ 450-460/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZX11-36R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	Voltage Transformer
Inbuilt Fuse:	Sing Pole
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

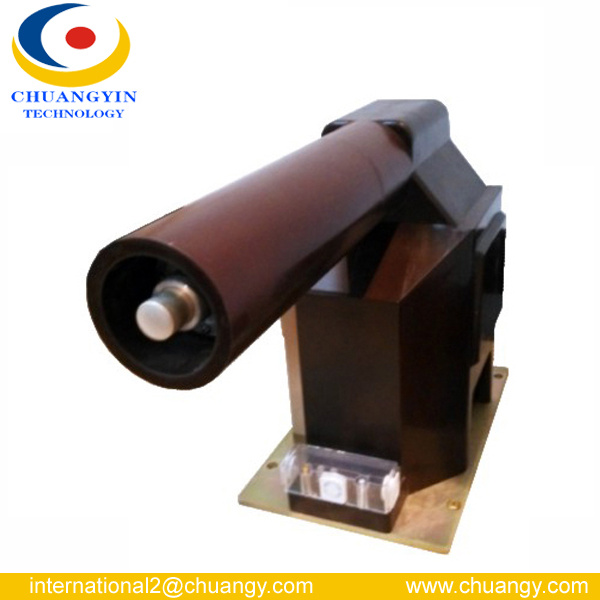

Product Description

JDZX10-36RG voltage transformer, epoxy resin casting and single pole insulated VT, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 36 kV.
High voltage outgoing line of primary winding was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse side of the product, IEC61869-1 & 3

Main technical parameter
1. Rated primary voltage: 33/ kV or 34.5/ kV or 35/ kV etc.
2. Rated secondary voltage:100/ V,110/ V , 115/ V, 120/ V
3. Rated voltage of residual voltage windings:100/ 3V ,110/ 3V, 115/ 3V, 120/ 3V
4. Burden power factor: cosΦ=0.8(lagging)
5. Standards: IEC60044-2.2003 Instrument transformers-Part2: Inductive Voltage transformers
Other technical parameters pls see as follow:

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZX10-36RG	33/ 34.5/ 35/	0.1/ 0.11/ 0.12/	0.2	25	600	36/70/170
			0.5	50
			1	100
		0.1/ /0.1/3 0.11/ /0.11/3 0.12/ /0.12/3	0.2/6P(3P)	20/50	600
			0.5/6P(3P)	50/50
			1/6P(3P)	80/50

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

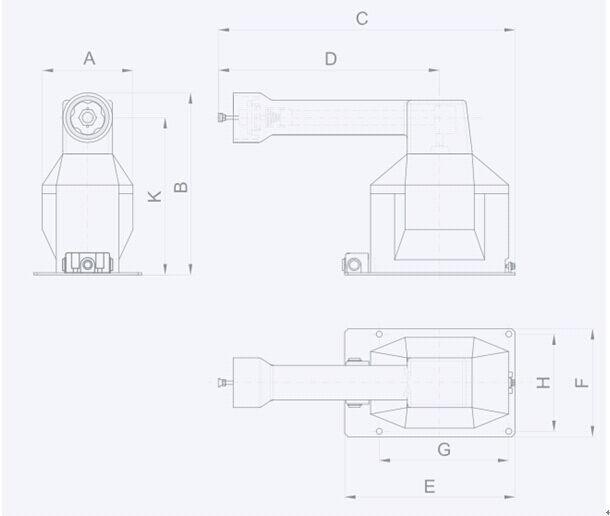

Outline drawing

A-210mm
B---422mm
C---688mm
D---513mm
E---395mm
F---250mm
G---300mm
H---225mm
K---364mm
