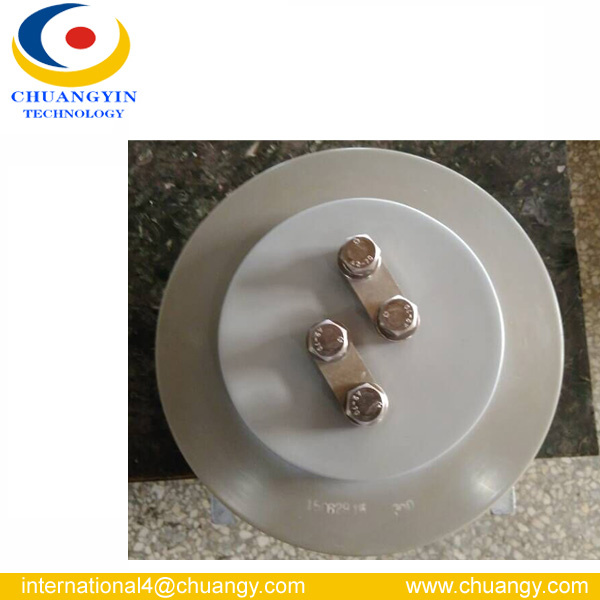

LZZW-36 Outdoor Current Transformer
Description
Epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creepage distance, withstanding dirtiness and dampness. Be suitable for measuring electric capacity, current and protective relaying in the power system of 36kV (Up to 40.5 kV).

Main technical parameter
1. Rated voltage: 30 kV or 33 kV or 34.5kV or 35kV etc

Rated secondary current: 5A or 1A
Rated insulation level: 36/70/170 kV (40.5/95/200 kV)
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Other technical parameter pls see as follow

Single ratio

Rated current ratio (A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
30-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15 20	20 25	5 (10)	10 15 20	150I1n	375I1n
300/5							31.5	80
400/5							40	100
500/5							50	100
600/5							63	130
800/5							80	160

Double ratio

Rated current ratio (A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
30-60/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15 20	20 25	5 (10)	10 15 20	2	5
50-100/5							8	20
100-200/5							15	37.5
200-400/5							30	75
400-800/5							63	130

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

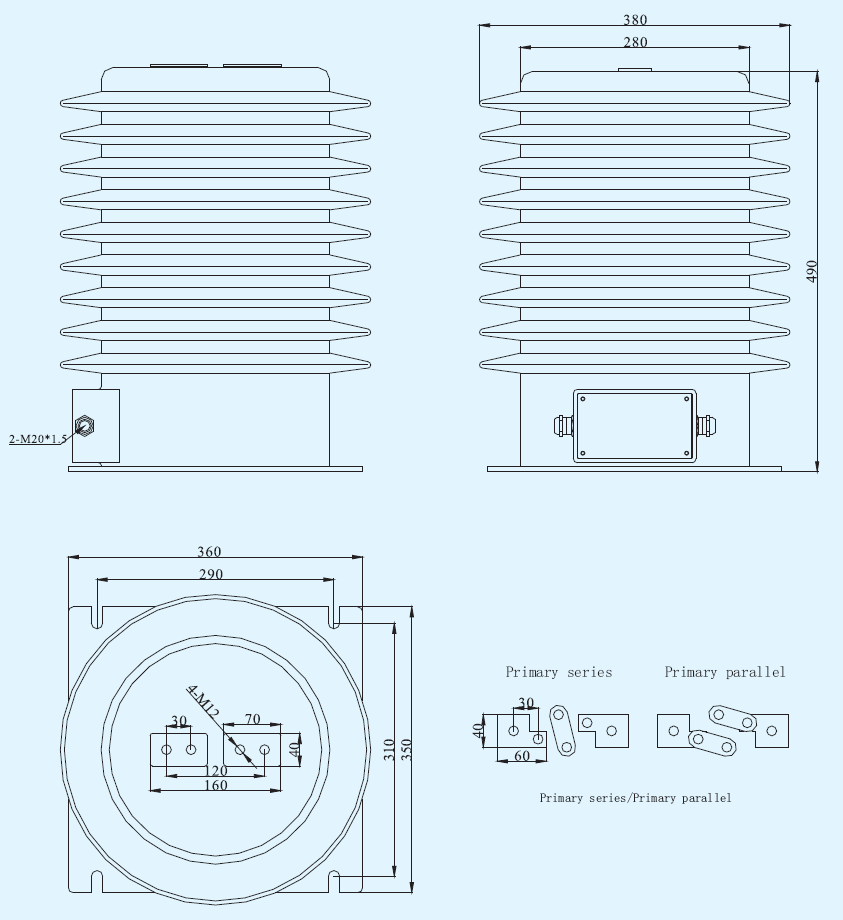

Outline drawing
