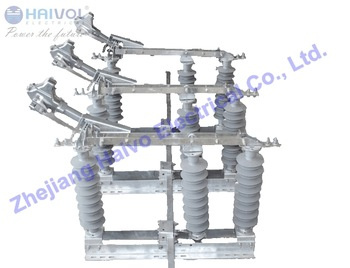

36kv Pole Mounted Load Break Switch Disconnector

Name: 36kv Pole Mounted Load Break Switch Disconnector
Brand: all-electronics-online.com
SKU: 825828755
Availability: InStock
Rating: 4.7 (143 reviews)

Price:	US $ 2-200/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FW1-12/24/36
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	ISO
Brand:	Haivol

Product Description

On Load Break Switch(Disconnector)

++++General

FW1 type Outdoor on load break switch (switch disconnector) contained in this list are destined to switch stub lines and ring main lines or transformers( It can be equipped with MV HRC fuse links as short circuit protection function) or for switching under on load conditions.
FW1 type switch comply with IEC/IEEE and DVE-recommendation standards. Especially comply with DIN VDE 0670 part 3 and IEC publication IEC-60265, IEC-129.

++++Service environment

a)  Air temperature: Maximum temperature: +75ºC; Minimum temperature:-45ºC

b)  Humidity: Monthly average humidity 95%; Daily average humidity 90% .

c) Altitude above sea level: Maximum installation altitude: 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vaporetc.

e)  No frequent violent shake

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
