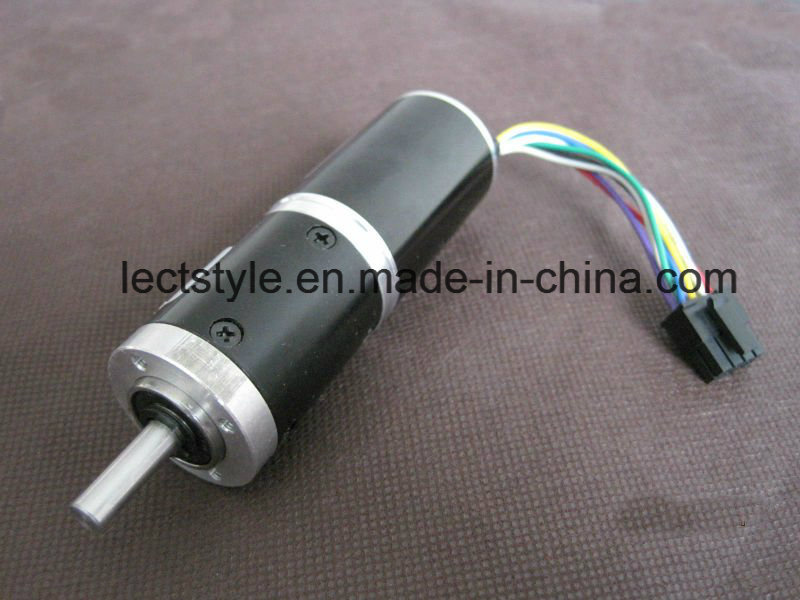

36mm 16 Watts Brushless Micro DC Gear Motor

Name: 36mm 16 Watts Brushless Micro DC Gear Motor
Brand: all-electronics-online.com
SKU: 754761665
Availability: InStock
Rating: 4.5 (102 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WS36PG24-369-3660
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Type:	Gear Motor
Torque:	3n.M
Commutation:	Brushless
Speed(Rpm):	4rpm
Construction:	Permanent Magnet
Continuous Current(a):	0.8A
Gearing Arrangement:	Planetary
Gear Ratio:	1:3.7 / 1:5.2 / 1:14 / 1:19 /1:51/ 1:71/ 1:100 / 1
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Brand:	Lectstyle

Product Description

Specifications

36mm 16 watts brushless micro dc gear motor
24VDC;
D36mm;
4 rpm rated;
3N.m;output 16watts;

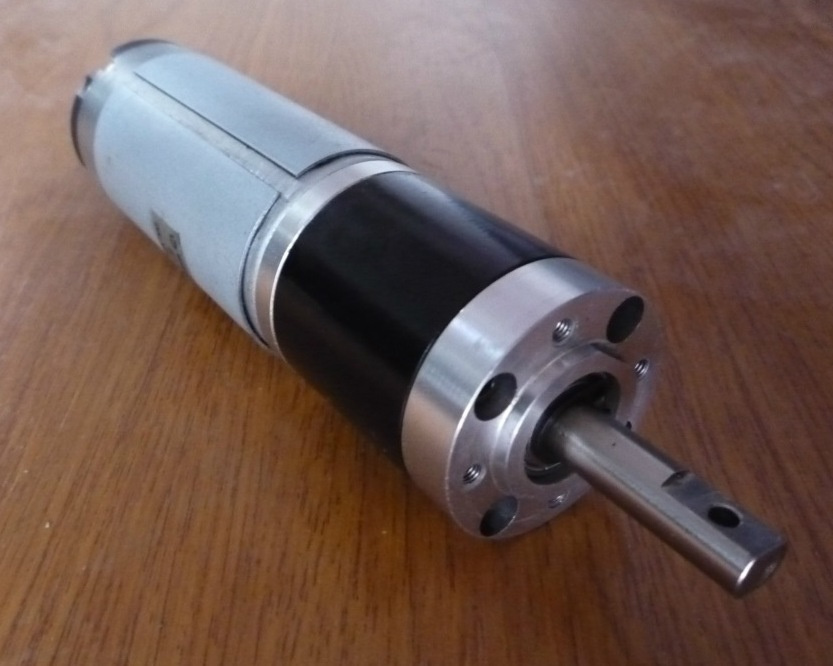

36mm 16 watts brushless micro dc gear motor

Rated Voltage: 24VDC;

Noloade Current: 0.1A;

Noload speed: 5.4 RPM;

Rated Speed : 4 rpm rated;

Rated Current: 0.8A;
Output Torque: 3 N.m;
Gear ratio: 1:369

Max Torque in short time: 9N.m;

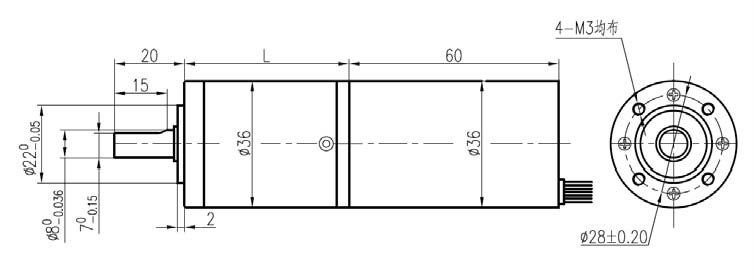

Drawing:

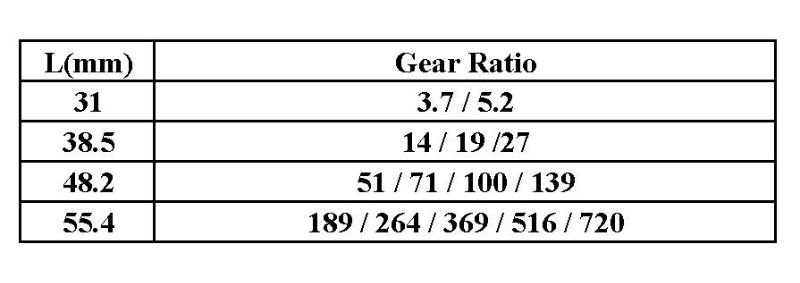

Gear Ratio table

Your OEM orders are also warmly welcomed, it is our commitment to satisfy your requirement, please turst that we will be your reliable business partner for our good reputation,good quality and competitive price !
