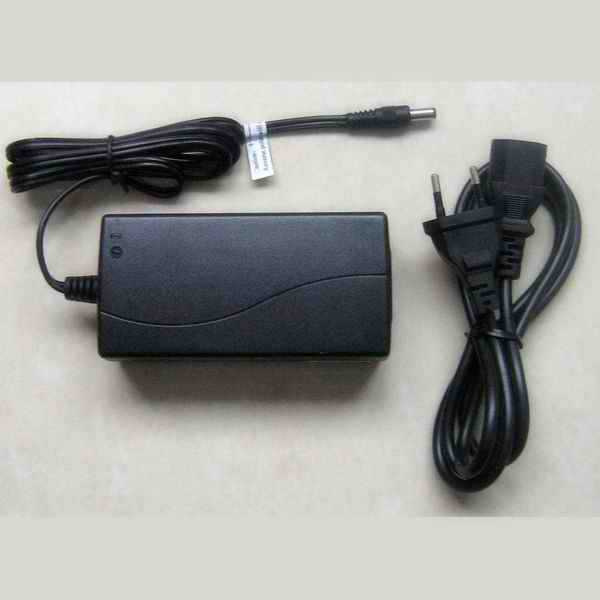

36V 1.5A Automatic Lead Acid Battery Charger

Name: 36V 1.5A Automatic Lead Acid Battery Charger
Brand: all-electronics-online.com
SKU: 795111125
Availability: InStock
Rating: 4.5 (77 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW360-015-S
Input Voltage:	AC100-240V 50/60Hz
Desktop Type:	Yes
Voltage:	12V
Delivery Date:	15days
Warranty:	One Year
Charger Type:	Electric Charger
Type:	VAG Battery
Nominal Voltage:	36V
Socket Type:	Can Be Customized

Product Description

36v 1.5a automatic lead acid battery charger

Voltage	36v 1.5a
Connector	Customzied

Product descriptions:
Application
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper

♦ Solar Systems, Home Application,UPS
♦ LED Torch, headlight, Portable power bank,etc.

Electrical Specification
♦ Universal Input: 100 - 240V AC, 50/60Hz
♦ Input Plug: EU US UK AU South Korea South Africa Power cords

♦ Output Voltage Range of main products: 4.2~60V DC (Optional)
♦ Output Current Range of main products: 0.5-100A (Optional)

♦ Output: 12v4A 24V2A 36V1.5A 48V1A
♦ Charge mode: CC--CV--Float Mode(Lead acid battery charger)

1. Lead acid Battery Charger
6V Lead acid battery charger: 6.8V(Float Voltage), 7.3V(Top Voltage)

12V Lead acid battery charger: 13.8V(Float Voltage), 14.6V(Top Voltage)
24V Lead acid battery charger: 27.6V(Float Voltage), 29.2V (Top Voltage)

36V Lead acid battery charger: 41.4V(Float Voltage), 43.8V (Top Voltage)

48V Lead acid battery charger: 55.2V(Float Voltage), 58.4V (Top Voltage)

♦ Led display: Red--in charging; Green--fully Charge
♦ Cut-off Current: 10-15% of Charge current
♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector, Anderson Plugs, RCA
♦ Rated Power:60W Max

Energy Standard
♦ MEPS
♦ CEC-V
♦ ERP V
♦ Energy Star: Level 6
♦ Standby Power: <0.3W

Protection Function
♦ Over voltage protection
♦ Over current protection
♦ Over-load protection
♦ Short circuit protection

Operation And Storage Condition
♦ Operation Temperature: -20°C to 40°C
♦ Operation Humidity: 20% to 90% R.H
♦ Storage Temperature: -20°C to 75°C
♦ Storage Humidity: 1% to 90% R.H.
♦ MBFT: > 50,000Hours
