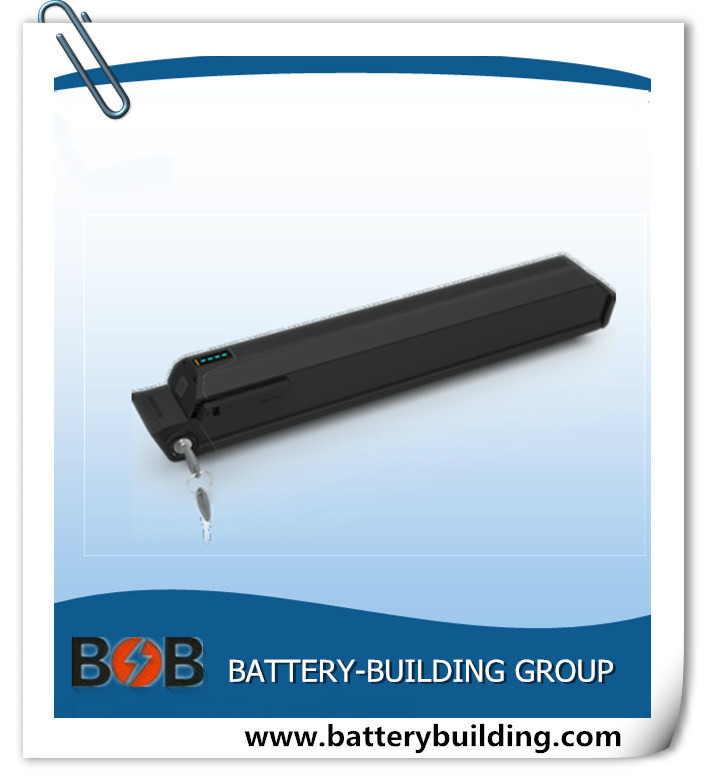

36V 10-17ah Lithium Battery Pack for E-Bike

Name: 36V 10-17ah Lithium Battery Pack for E-Bike
Brand: all-electronics-online.com
SKU: 749129965
Availability: InStock
Rating: 5 (123 reviews)

Price:	US $ 145/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BB-EB36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Voltage:	36V
Capacity:	10-17ah
Additional Functions:	USB Charge Port, 4 Levels LED Indicator
Cell Adopted:	Icr18650 2200mAh
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	36V
Usage:	E-Bike,E-Scooter
Electrolyte:	Li-ion

Product Description

36V 10-17Ah lithium battery pack for e-bike

Specification
Four levers LED capacity indicator
Standard USB Port
30Amps high performance blade type discharge fuse
50PCS 18650 Cylinder cells, capacity 36V10Ah-17Ah
High quality battery lock
2-5Pins discharging plug
Waterproof grade: IP65
DC2.1 charging Port (optional 5Pin high current charging Plug)

Details

(1)Battery modules
40 cells,4 parallel and 10 serial to make a battery module.

(2)Protective board
The protective board, provides protection against overcharge, and short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function

(3)Charge/discharge standards for cell
Cell adopted: ICR3.7V2200mAh
Constant charge current: 0.2 C5A -1 C3A is the best. cell max voltage<4.3V.
Constant discharge current: single cell min voltage> 2.75V
Rapid charge capability: Max. charge current1C3A;temperature increase falls within 15°C is
normal while over 15°C will affect the cycle life of cell.

NO	Item	General Parameter				Remark
1	Model	BB-EB36
2	Standard capacity(0.5C)	10-17AhAh
3	Rated voltage	36V
4	Max. charge voltage	42.0V				Single Ave. charge Voltage: 4.2V
5	Over charge protection	Over charge detection voltage		4.40±0.025V
		Over charge release voltage		4.3±0.025V
6	Standard charge current	3A				0.2C
7	Charging time	About 300 minutes				X C
8	Discharge cut-off voltage	27.5V				Single Ave. Discharge Voltage: 2.75V
9	Over discharge Protection	Over discharge detection voltage			2.5±0.05V
		Over discharge release voltage			2.75±0.05V
10	Max. continuous discharge current	15A(adjustable)				1.5C
11	Peak discharge current	45A(adjustable)				4.5C
12	Short circuit protection	Detetion delay time			XXμs	Release condition	Cut-off load
12	Battery dimension	4608260mm
13	Total weight(Approx.)	About 3.5kg
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC
