36V 100ah Lithium Iron Phosphate Batteries with Solar System

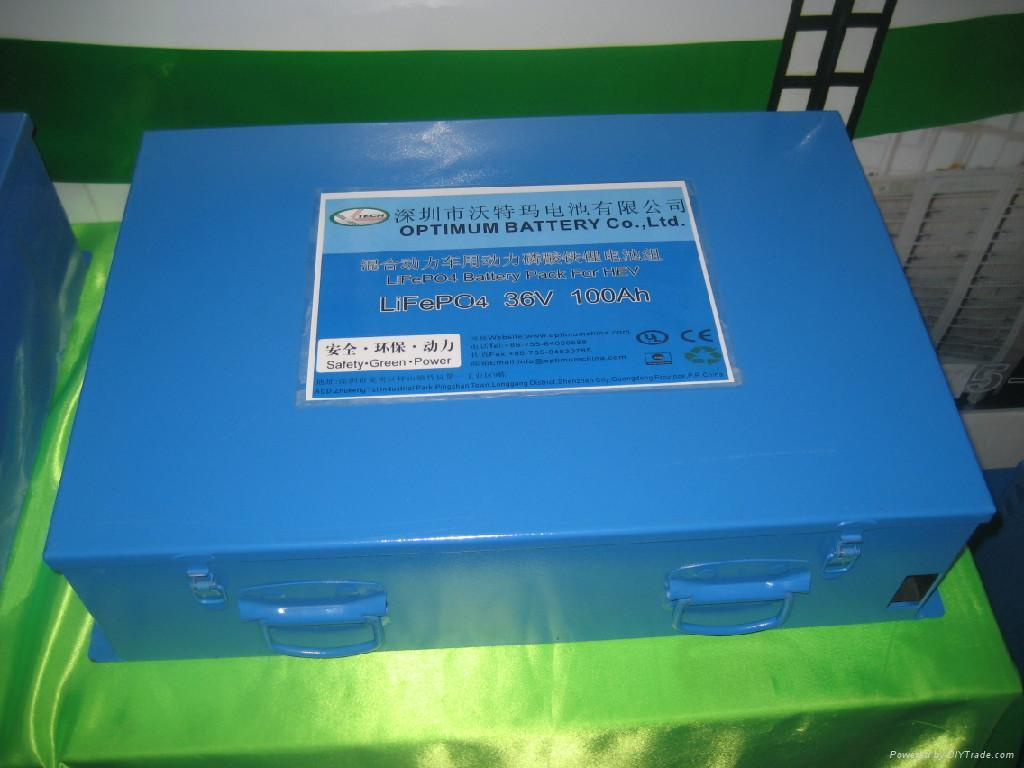

Name: 36V 100ah Lithium Iron Phosphate Batteries with Solar System
Brand: all-electronics-online.com
SKU: 717003045
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 1-10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-36100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	36V
Capacity:	100ah
Cell:	32650
Green Energy:	Zero Emission
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	Electric Tool/Lawn Mower/ Electric Drill
Electrolyte:	LiFePO4

Product Description

36V 100Ah UPS LiFePO4 Lithium Iron Phosphate Batteries With Solar System

Product feature

1. Safety: Safest Li-ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: HP battery can discharge in 15C~20C
4. Long life cycle, > 2000 times deep cycle, 8 times of lead acid battery
5. No memory effect, highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70° C
7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly

Application

1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment

Question list

Normal Questions (for supplying you the best power supply solution)
1. What's the application for battery packs?
2. Do you have special dimension requirement?
3. BMS (Battery Management System) related questions
A. What's the continuous charge current if there is a certain charging plan?
B. What's the continuous discharge current?
C. What's the max continuous discharge current and its duration? (Our practice: 2 min)
D. What's the max continuous discharge current and its duration? (Our practice: 10s)
4. Do you use the battery packs in parallel or in series?
5. Do you need a compatible lithium battery charger?
6. Is the discharge outlet same as the charge socket?
7. What kind of housing material do you need?
A. PVC film (usually for single cell)
B. Epoxy board+ PVC film (usually for special dimension that SLA case can't work out)
C. SLA case(optional certain dimension )
D. Customized iron case or aluminum alloy case or other special housing
These are not all the possible needed information and please let me know if you have special requirement.

Optimum LiFePO4 Battery/Lithium Battery Pack (36V 9Ah---100Ah)
9/10/15/20/30/50/60/100/Ah
Item No.	OPT36010	OPT36015	OPT36020	OPT36030	OPT136050	OPT36060	OPT36100
Standard Capacity	10Ah	15Ah	20Ah	30Ah	50Ah	60Ah	100Ah
Rated Voltage	38.4V
Discharge Cut-off Voltage	30V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	≤3% one after month
Life Cycles	>2000 times (with 1C constant charge and discharge cycle)
Max Continuous Discharge Current	2C
Max Charger Voltage	DC29.2V
Standard Charge Current	0.2C
Standard Discharge Current	1C~1.5C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage
Product Size(mm)	38311075	40525653	274208105	229236230	311298200	311298230	560470189
Approx N.W	6Kg	7Kg	10Kg	15Kg	25Kg	30Kg	50Kg

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
