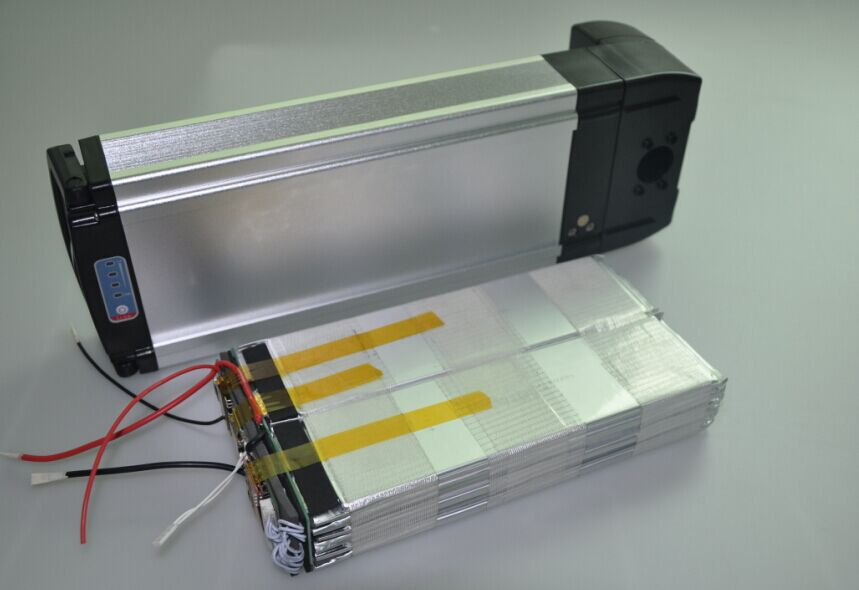

36V 10A Rear Rack Lithium Polymer Battery Pack for E-Bike

Prod Model:	BB-EBLP3610RR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	2 Years
Application:	E-Bicycles, E-Scooters, Golf Trolley
Dimension:	45mm*120mm*280mm(Flexible)
Certificate:	CE, RoHS
Working Current:	20A
Structure:	Prismatic 10ah Cell 12s1p
Type:	Lithium-Polymer Battery Pack
Connection Mode:	Series and Parallel
Standard Voltage:	36V
Usage:	E-Bike
Electrolyte:	Lithium Polymer

Product Description

36V 10A Rear Rack Lithium Polymer Battery Pack for E-Bike

Specifications
1.lithium polymer battery
2.over 600 times cycle
3.High capacity
4.CE,ROHS etc
5.low-self discharge.

Details

NO	Item	General Parameter				Remark
1	Model	BB-EBLP3610RR
2	(0.5C) Standard capacity(0.5C)	10Ah
3	Rated voltage	36V
4	Max. charge voltage	43.8V				:3.65V Single Ave. charge Voltage
5	Over charge protection			3.90±0.025V		Over charge detection voltage
				3.8±0.025V		Over charge release voltage
6	Standard charge current	2A				10C
7	Charging time	About 5 hours				X C
8	Discharge cut-off voltage	24V				:2.0V Single Ave. Discharge Voltage 2.3V
9	Over discharge Protection				2.0±0.05V	Over discharge detection voltage
					2.3±0.05V	Over discharge release voltage
10	Max. continuous discharge current	20A(adjustable)
11	Peak discharge current	40A(adjustable)
12	Short circuit protection	Detetion delay time			XXμs	Release condition	Cut-off load
12	Battery dimension	45mm*120mm*280mm(Flexible)
13	(Approx.) Total weight(Approx.)	About 4kg
14	Operation temperature	Standard	0ºC~45ºC
		Discharge	-20ºC~65ºC
		Storage	-20ºC~65ºC

Key Application
Widely applied in  Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.

Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.

Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.

Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.

Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
